Installation Procedure

WARNING: This page is about a different car, the 2009 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

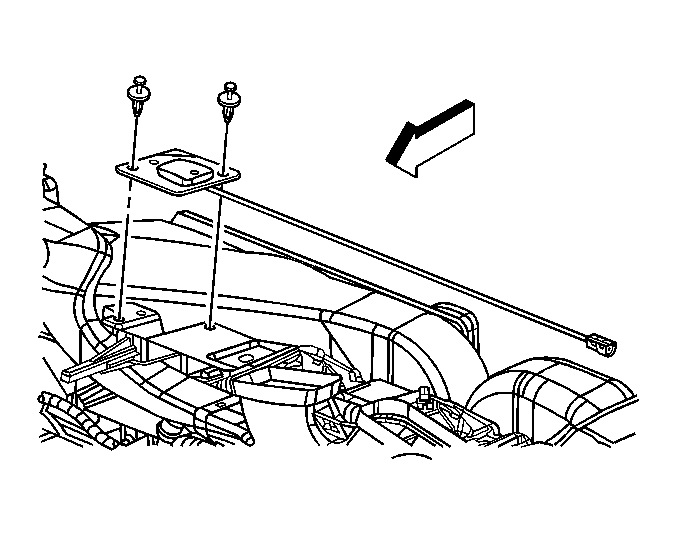

    Fig 1: View Of Global Position Antenna
    GM1385980Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector.
  2. Install the fasteners securing the antenna to the I/P.
  3. Install the I/P retainer. Refer to Instrument Panel Retainer Replacement .
