Installation Procedure

WARNING: This page is about a different car, the 2009 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

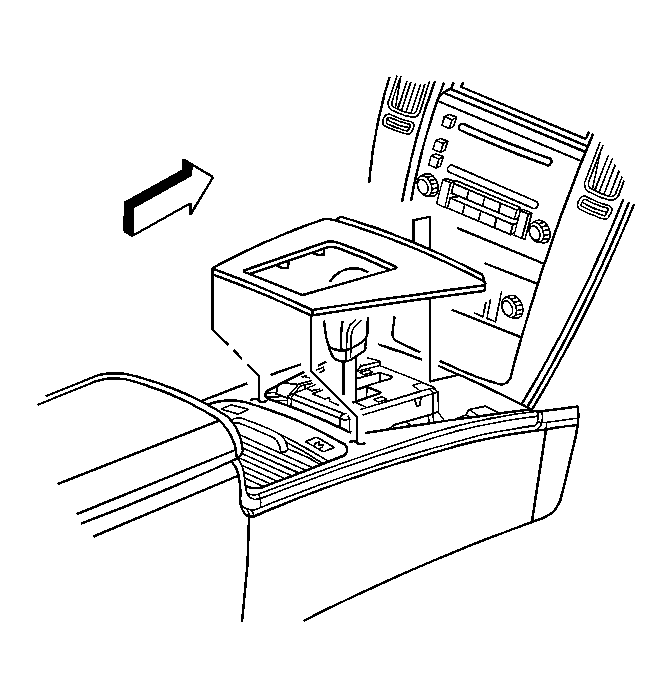

    Fig 1: View Of Console Shift Lever Bezel
    GM1442981Courtesy of GENERAL MOTORS CORP.
  1. Install the shifter trim bezel.
  2. Install the console upper trim. Refer to Front Floor Upper Console Trim Plate Replacement .
