Installation Procedure

WARNING: This page is about a different car, the 2009 GMC Canyon and 2009 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the jounce bumper.

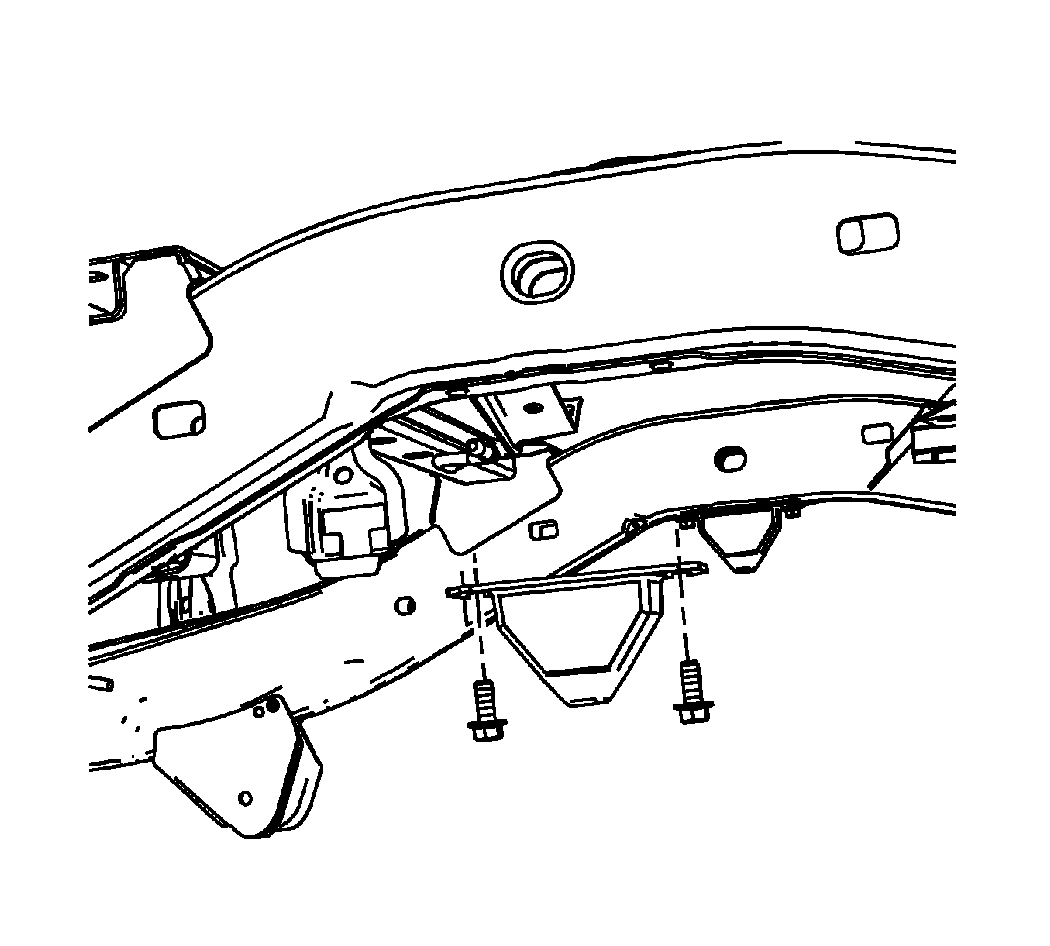

    2. Fig 1: View Of Jounce Bumper Mounting Bolts - RPO Z71
    GM1293767Courtesy of GENERAL MOTORS CORP.
  2. Install the jounce bumper mounting bolts. RPO Z71 suspension.

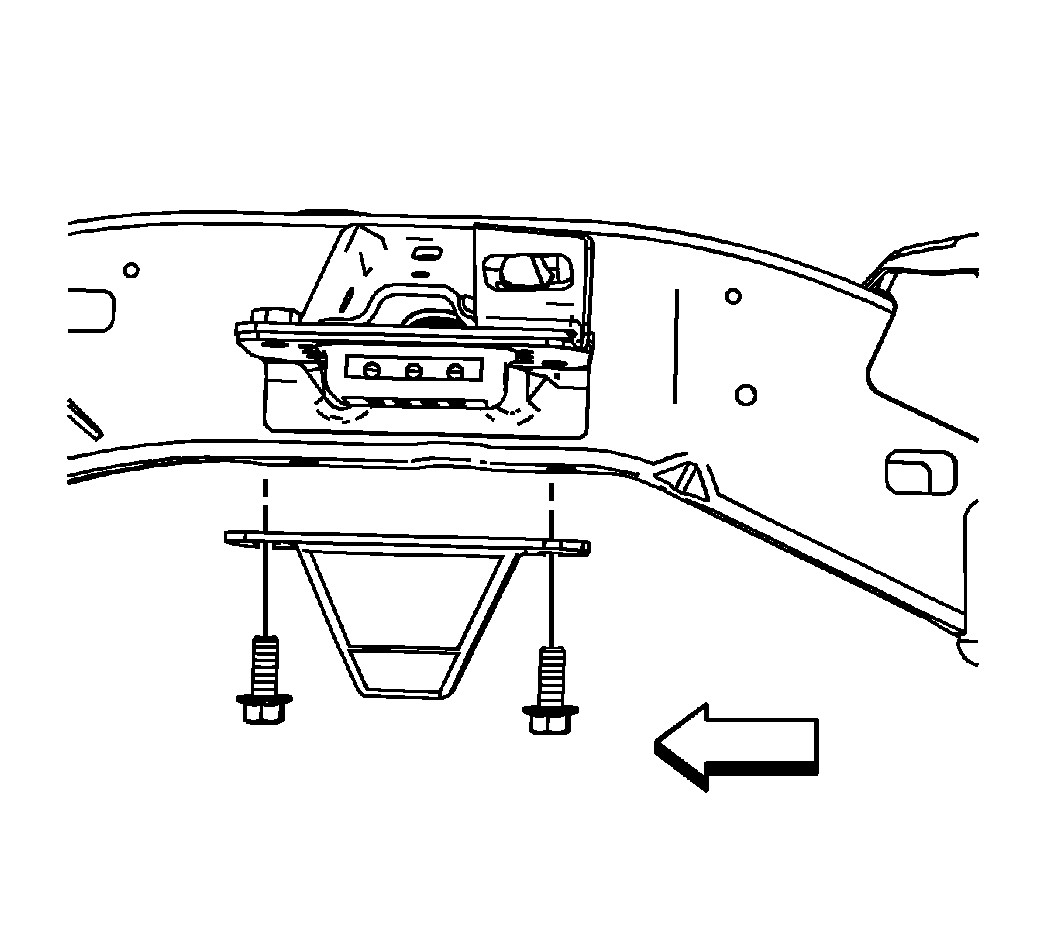

    3. Fig 2: View Of Jounce Bumper Mounting Bolts - 2WD RPO ZQ8
    GM1293740Courtesy of GENERAL MOTORS CORP.
  3. Install the jounce bumper mounting bolts. 2WD RPO ZQ8 suspension.

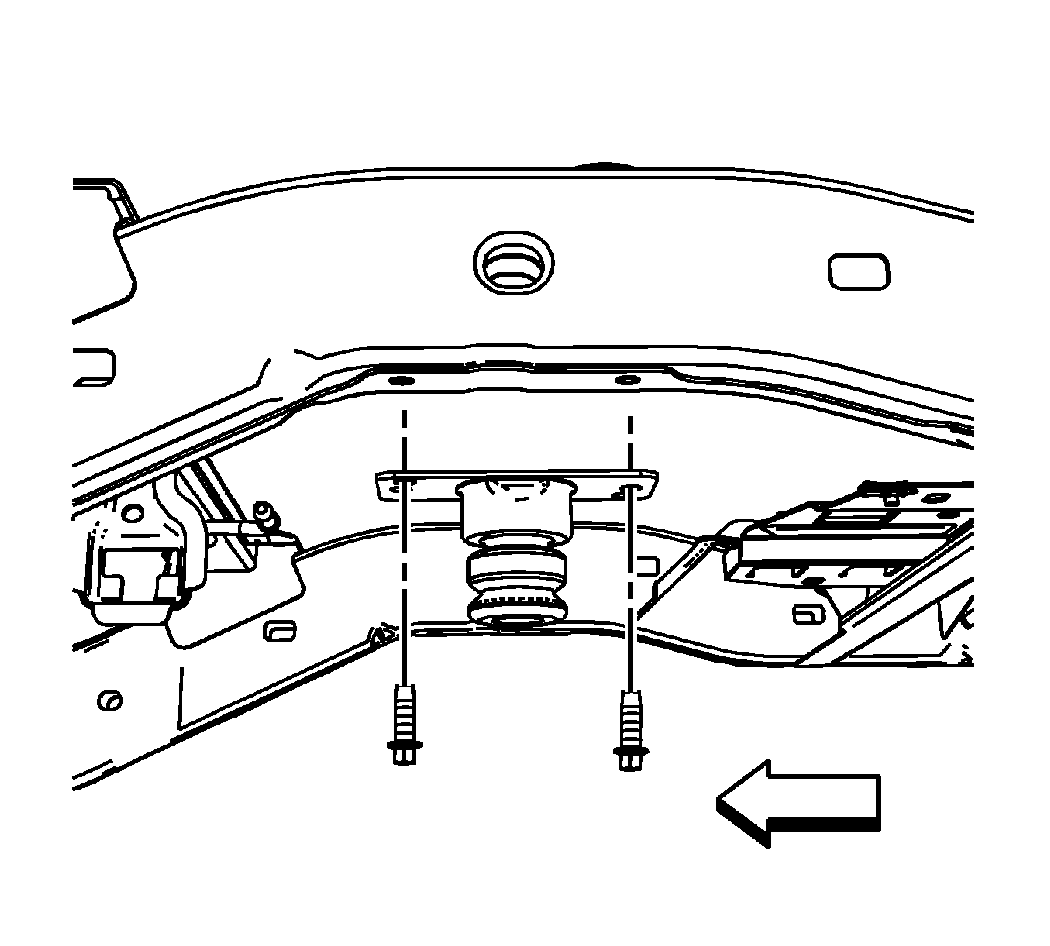

    4. Fig 3: View Of Jounce Bumper Mounting Bolts - 4WD
    GM1293742Courtesy of GENERAL MOTORS CORP.
  4. Install the jounce bumper mounting bolts. 4WD base suspension.

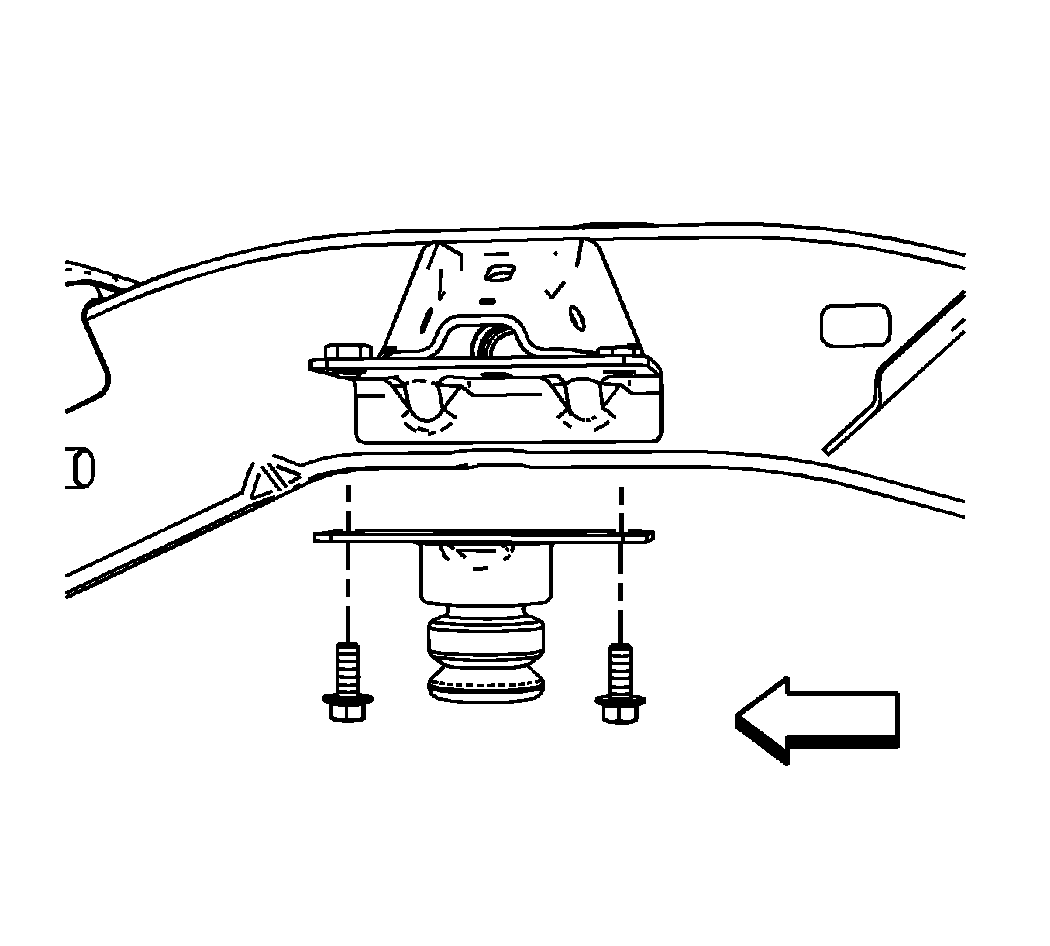

    5. Fig 4: View Of Jounce Bumper Mounting Bolts - 2WD
    GM1293765Courtesy of GENERAL MOTORS CORP.
  5. Install the jounce bumper mounting bolts. 2WD base suspension.

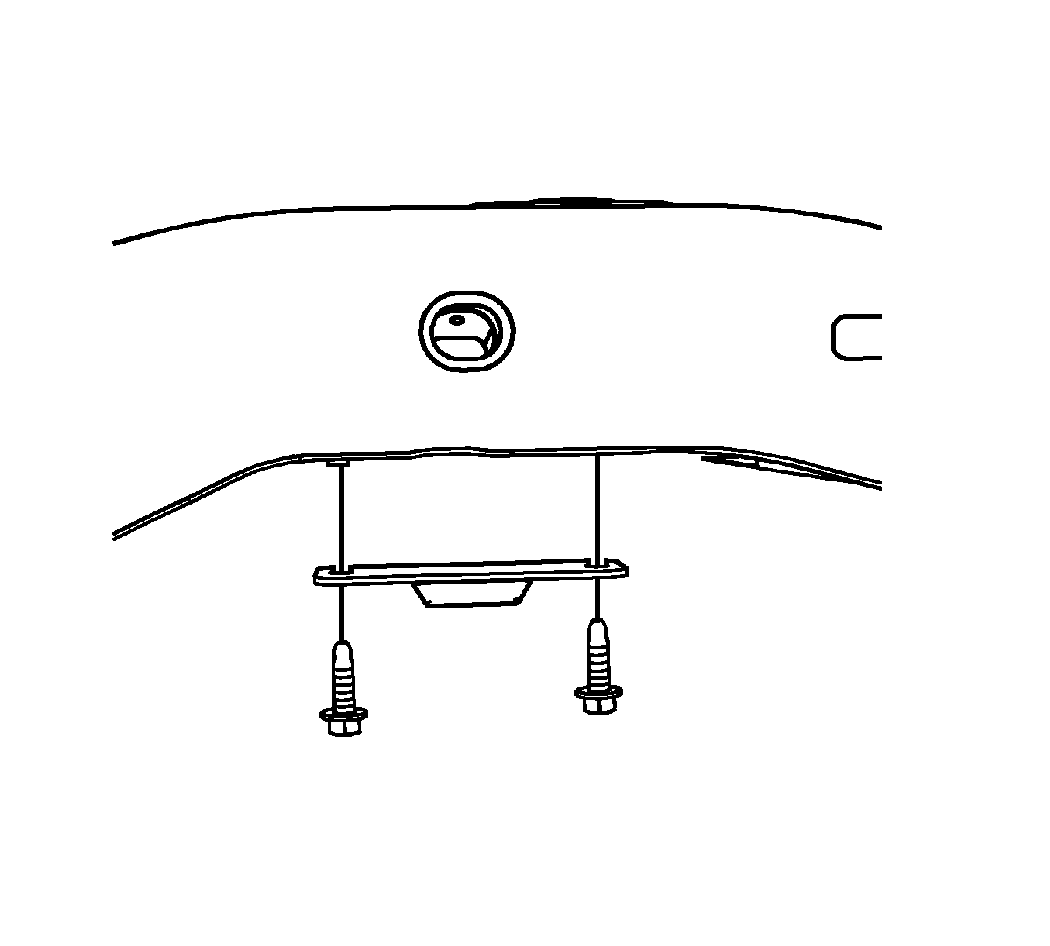

    6. Fig 5: View Of Auxiliary Jounce Bumper Mounting Bolts
    GM1357238Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  6. Install the auxiliary jounce bumper mounting bolts. 2WD base and RPO ZQ8 suspension.

    Tighten the bolts to 50 N.m (37 lb ft).

  7. Lower the vehicle.
