Installation Procedure

WARNING: This page is about a different car, the 2009 GMC Canyon and 2009 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Lubricating Male Pipe End

Courtesy of GENERAL MOTORS CORP.

WARNING: Refer to Fuel Pipe Fitting Warning .

Apply a few drops of clean engine oil to the male pipe end.

Fig 2: Connecting Quick-Connect Fittings

Courtesy of GENERAL MOTORS CORP.

Push both sides of the quick-connect fitting together in order to cause the retaining feature to snap into place.

Fig 3: View Of Quick-Connect Fitting

Courtesy of GENERAL MOTORS CORP.

Pull on both sides of the quick-connect fitting to make sure the connection is secure.
Inspect for leaks using the following procedure:
1. Turn the ignition ON, with the engine OFF for 2 seconds.
2. Turn the ignition OFF, for 10 seconds.
3. Turn the ignition ON, with the engine OFF for 2 seconds.
4. Turn the ignition OFF.
5. Inspect for leaks.

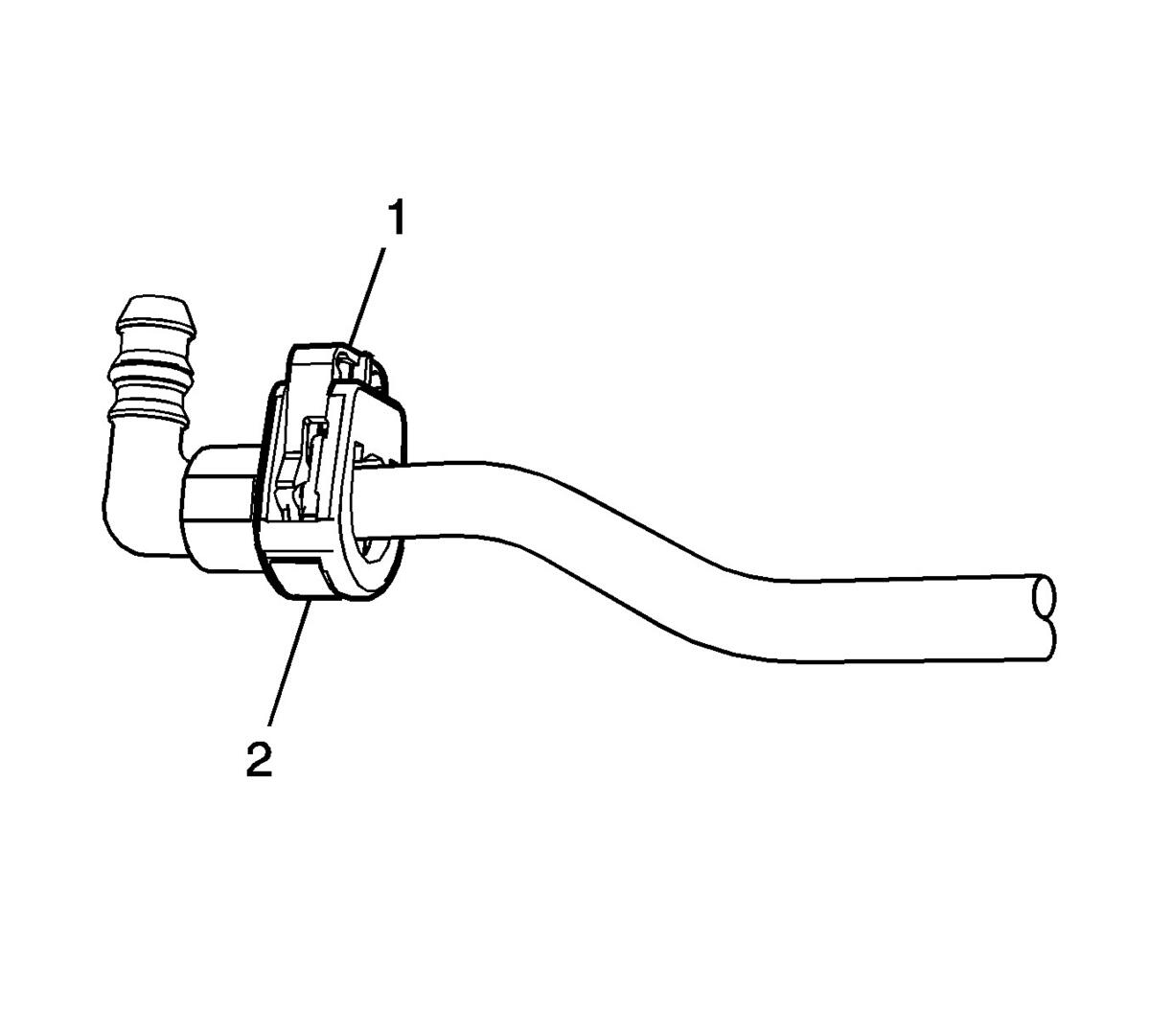

Fig 4: TI Loc Style

Courtesy of GENERAL MOTORS CORP.

Apply a few drops of clean engine oil to the male pipe end.
Insert the tube in the connector until the retainer snaps in place.
Push down on the redundant latch (1) until it is fully engaged and snapped into position.
