Installation Procedure

WARNING: This page is about a different car, the 2009 GMC Canyon and 2009 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

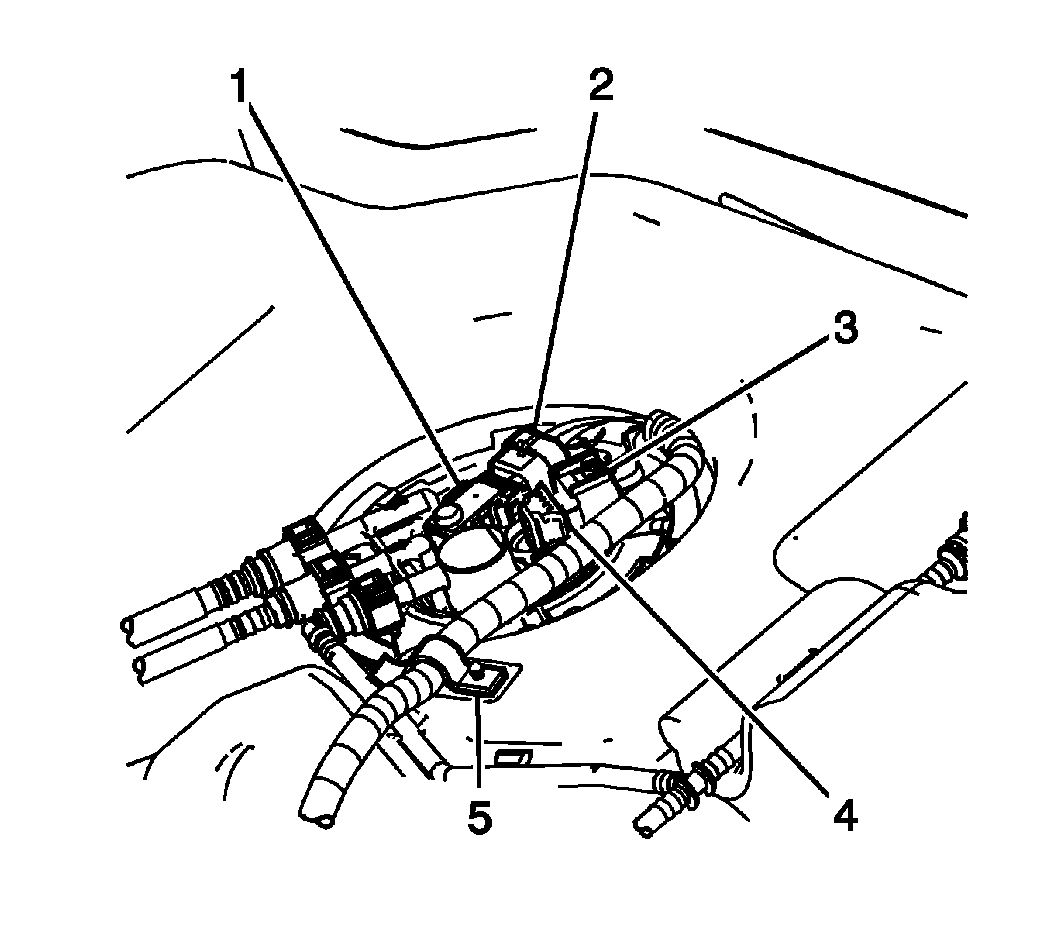

Fig 1: View Of Fuel Tank Pressure Sensor & Fuel Tank Module

Courtesy of GENERAL MOTORS CORP.

Lightly lubricate the sensor seal with clean engine oil.
Press the sensor fully into the fuel tank module.
Connect the chassis wiring harness electrical connector to the pressure sensor (1).
Install the left rear pickup box wheelhouse liner. Refer to Pickup Box Wheelhouse Liner Replacement .
If the vehicle is a crew cab, install the fuel tank. Refer to Fuel Tank Replacement .
Lower the vehicle.
