Installation Procedure

WARNING: This page is about a different car, the 2009 GMC Canyon and 2009 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Fuel Filler Hose
    GM1361727Courtesy of GENERAL MOTORS CORP.
  1. Uncap the fuel tank.
  2. Position the fuel fill hose to the fender.
    3. CAUTION: Refer to Fastener Caution .
  3. Install the fuel fill hose screws and tighten to 2 N.m (18 lb in).

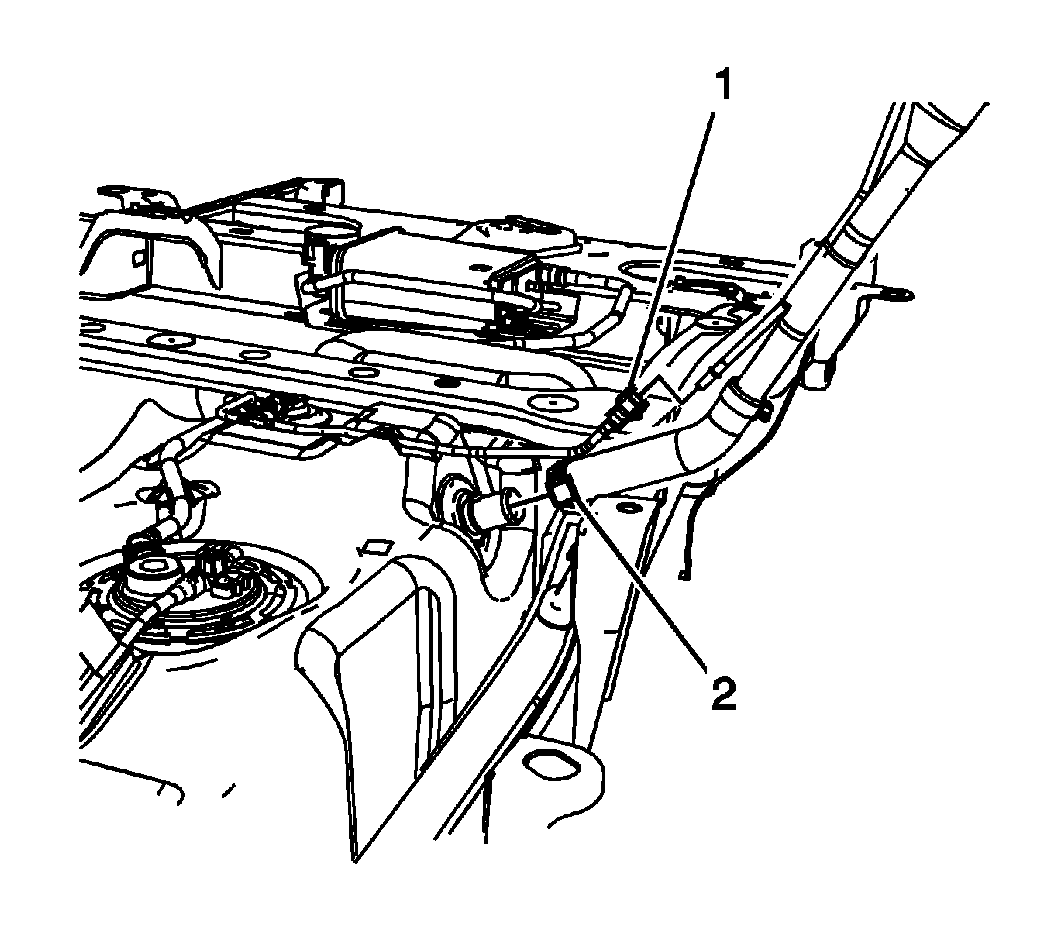

    4. Fig 2: Relieving Fuel System Pressure
    GM1766208Courtesy of GENERAL MOTORS CORP.
  4. Install the fuel fill hose to the fuel tank.
  5. Connect the fuel tank EVAP line (1) quick connect fitting to the fill tube vent line. Refer to Plastic Collar Quick Connect Fitting Service .
  6. Tighten the fuel fill hose clamp (2) at the fuel tank to 2.5 N.m (22 lb in).

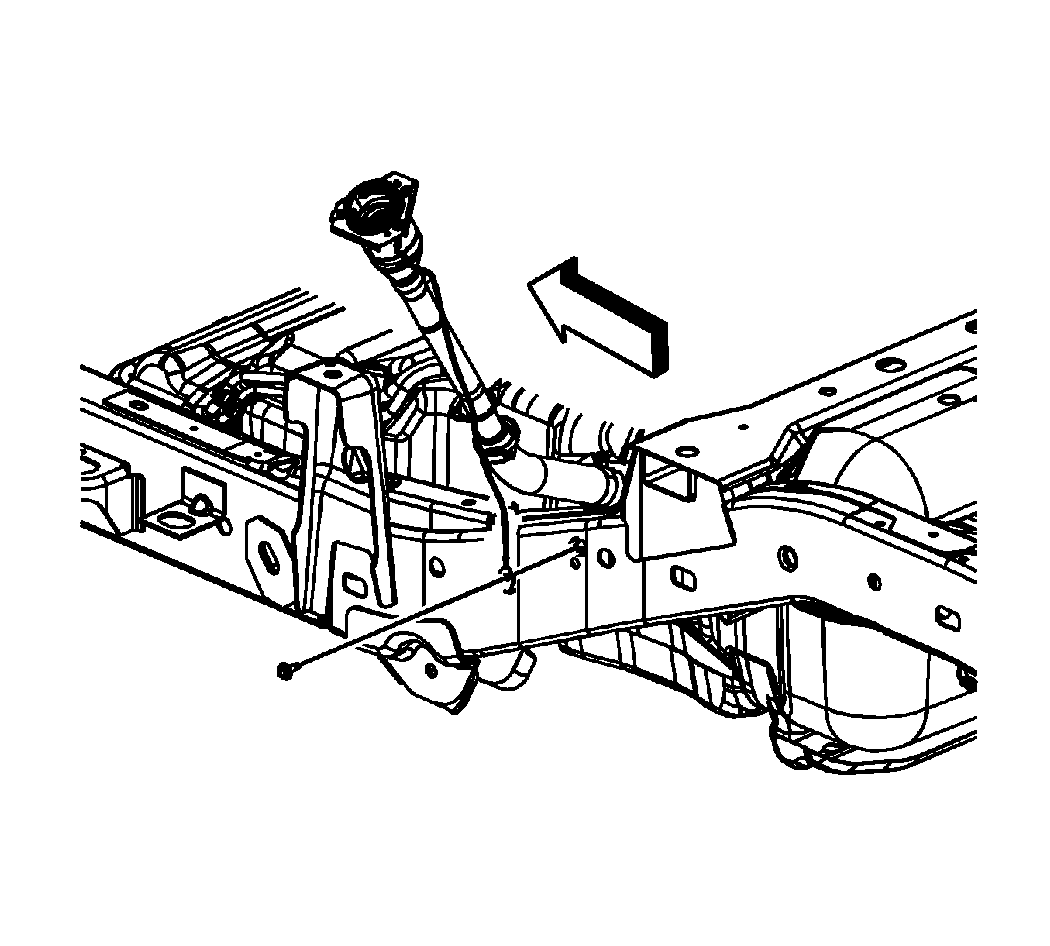

    7. Fig 3: View Of Ground Strap To Frame
    GM1766571Courtesy of GENERAL MOTORS CORP.
  7. Install the ground strap to the frame. Ensure that the anti rotation tab is inserted into the hole in the frame.
  8. Install the fuel fill hose ground strap bolt and tighten to 9 N.m (80 lb in).
  9. Install the left rear pickup box wheelhouse liner. Refer to Pickup Box Wheelhouse Liner Replacement .
  10. Lower the vehicle.
  11. Refill the fuel tank.
  12. Install the fuel fill cap.
