Installation Procedure

WARNING: This page is about a different car, the 2009 GMC Canyon and 2009 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

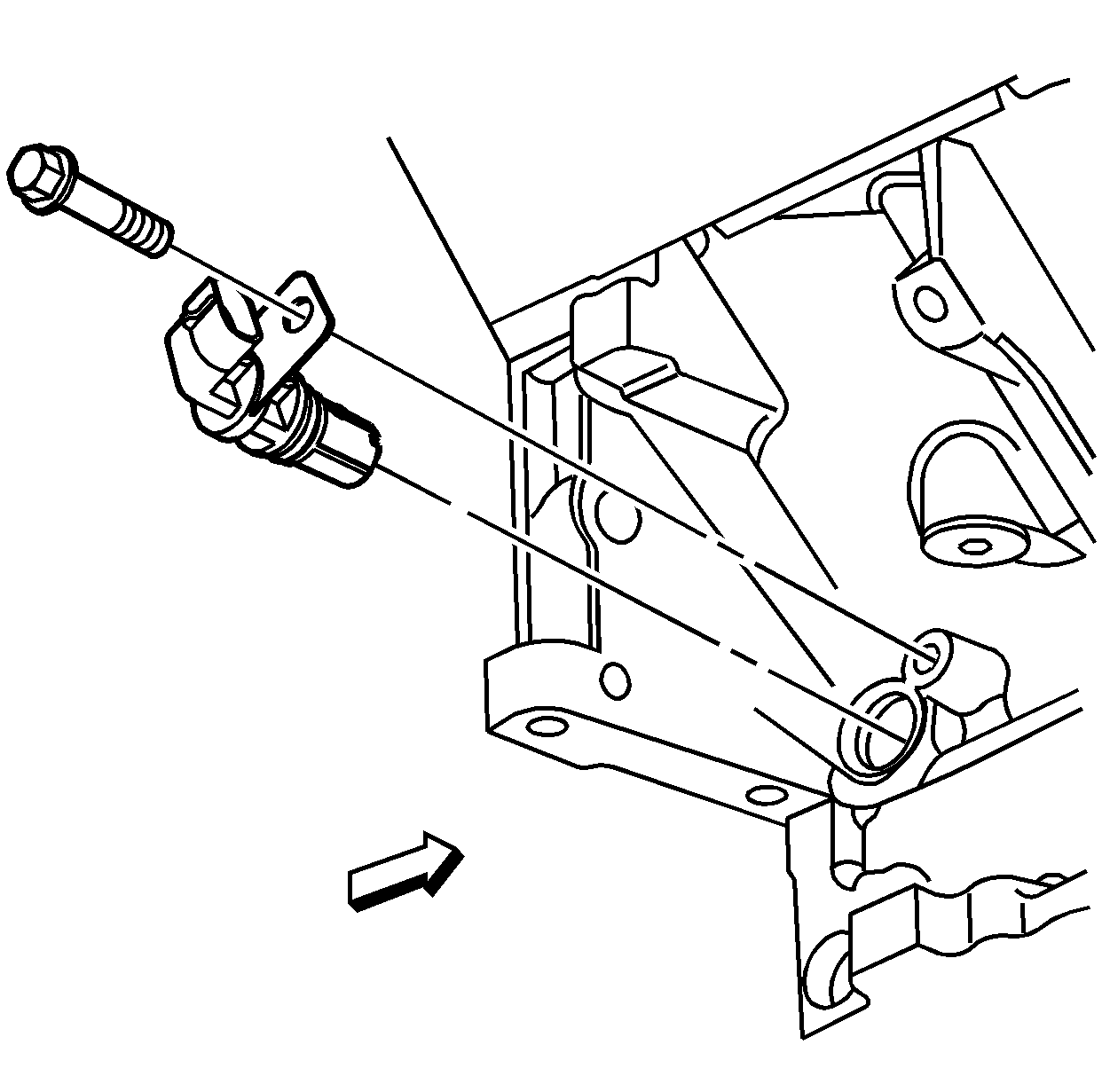

    Fig 1: View Of CKP Sensor & Bolt
    GM55322Courtesy of GENERAL MOTORS CORP.
  1. Install the CKP sensor.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the CKP sensor bolt.

    Tighten:  Tighten the bolt to 25 N.m (18 lb ft).

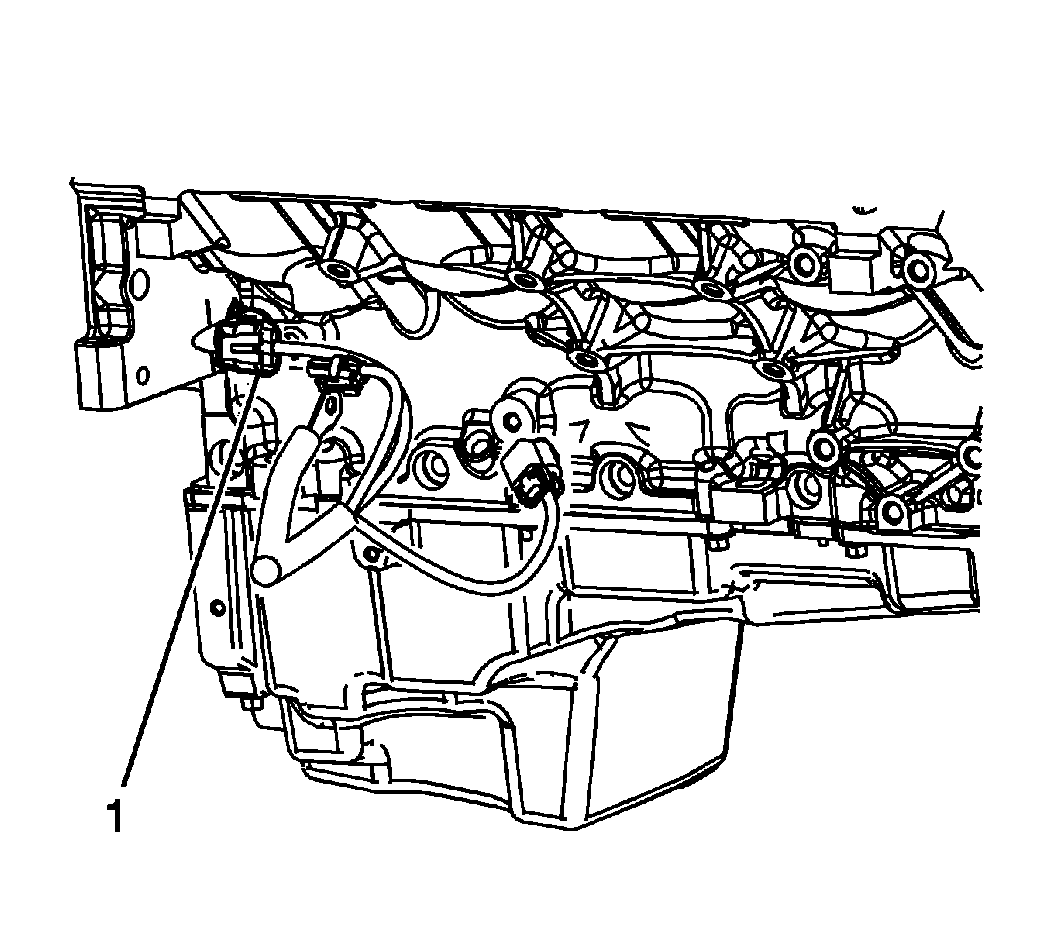

    3. Fig 2: Crankshaft Position (CKP) Sensor Electrical Connector
    GM1899315Courtesy of GENERAL MOTORS CORP.
  3. Connect the engine wiring harness electrical connector (1) to the CKP sensor.
  4. Install the starter. Refer to Starter Motor Replacement (LH8) .
  5. Perform the crankshaft position system variation learn procedure. Refer to Crankshaft Position System Variation Learn .
