Installation Procedure

WARNING: This page is about a different car, the 2009 GMC Canyon and 2009 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

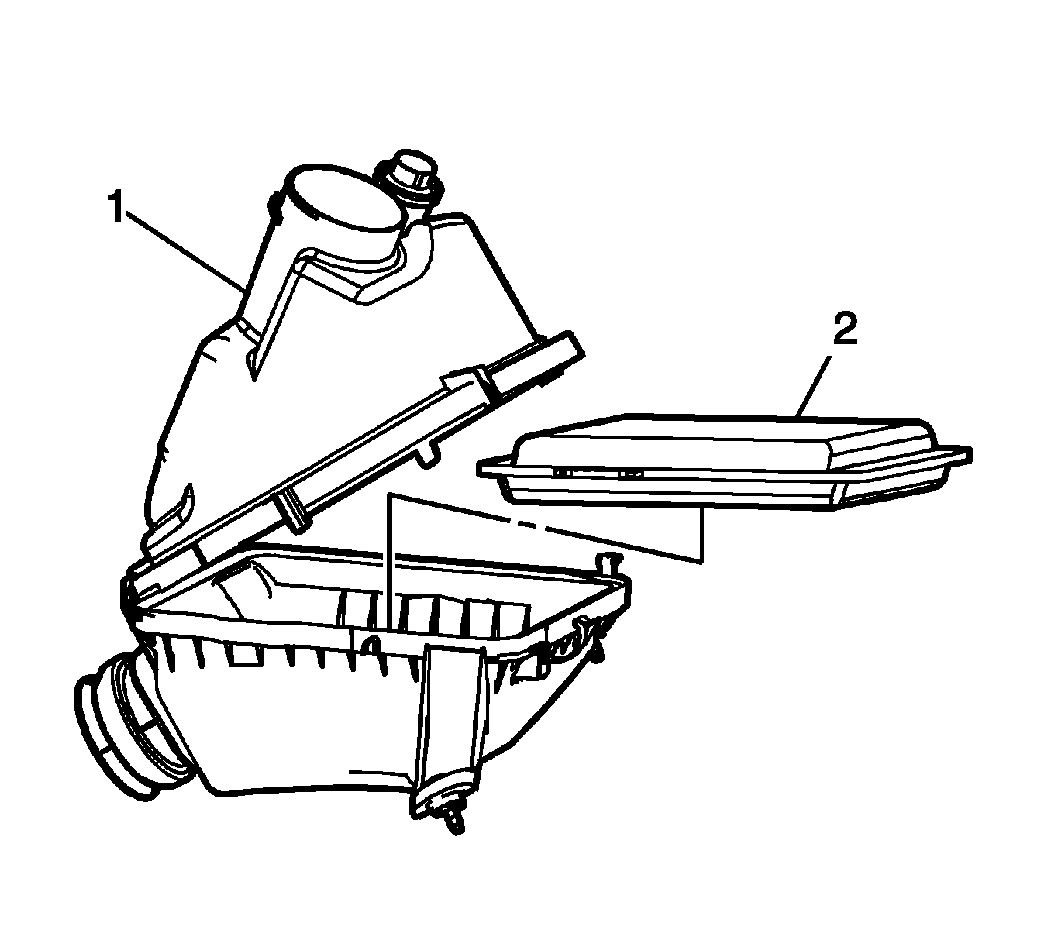

Fig 1: Air Cleaner Upper Housing & Air Filter Element

Courtesy of GENERAL MOTORS CORP.

Install the air filter element (2) to the lower air cleaner housing.
Close the air cleaner upper housing (1).

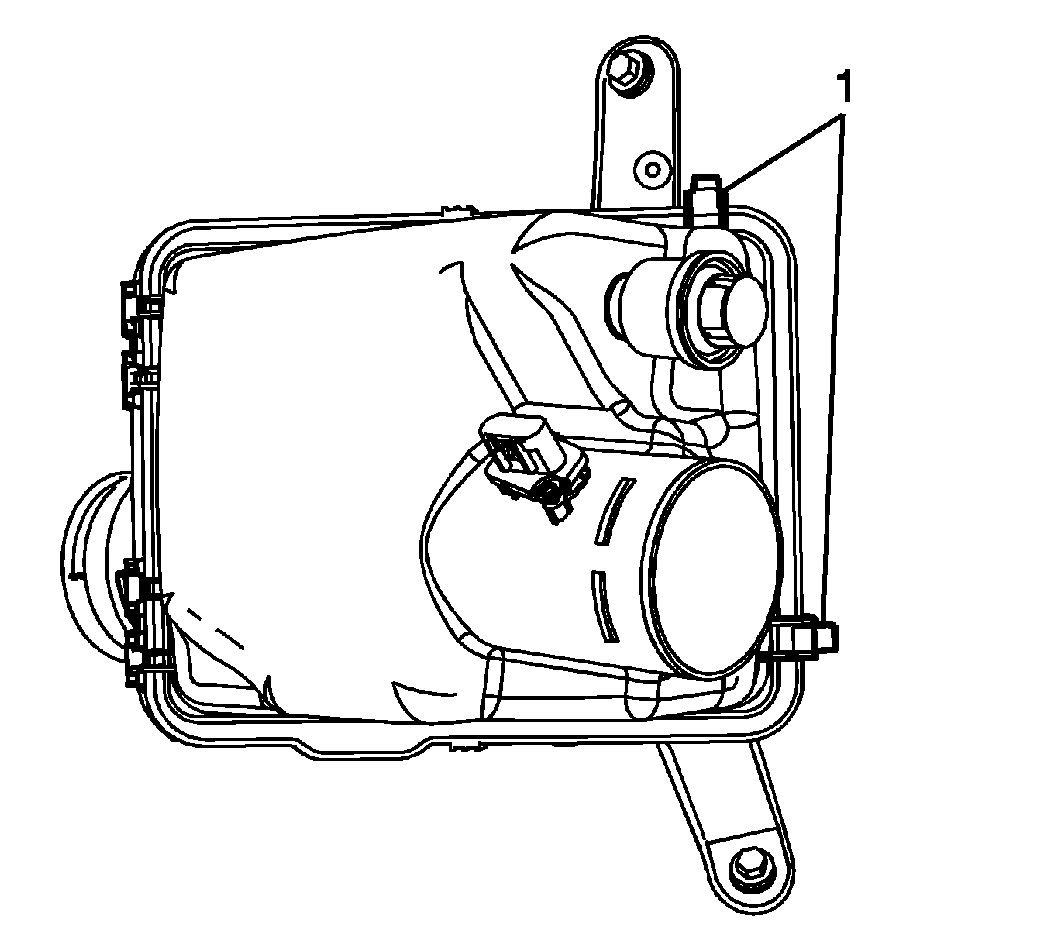

Fig 2: Air Cleaner Upper Housing Retainer Clips

Courtesy of GENERAL MOTORS CORP.

Latch the air cleaner upper housing retainer clips (1).
Install the air cleaner outlet duct. Refer to Air Cleaner Resonator Outlet Duct Replacement .
