Stop Lamp Switch Adjustment
WARNING: This page is about a different car, the 2008 Isuzu i-370, 2008 Isuzu i-290, 2008 GMC Canyon, and 2008 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

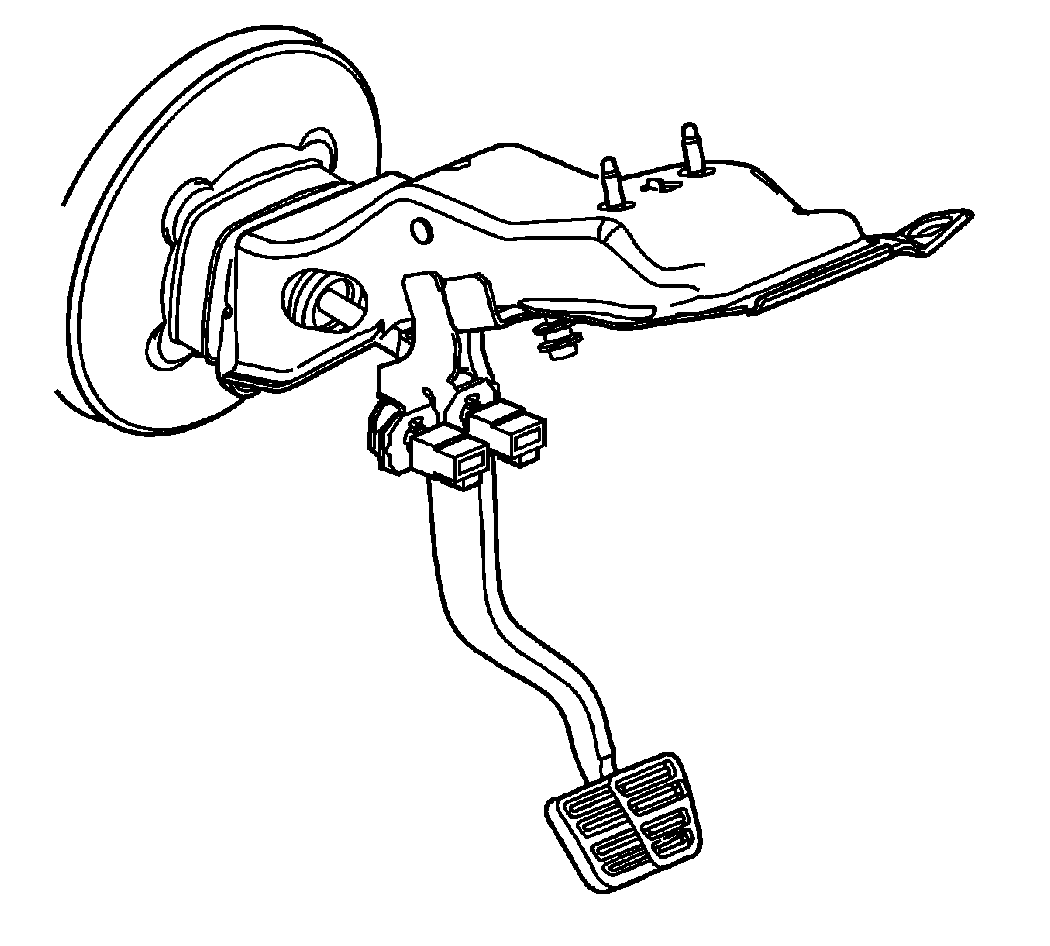

- Rotate the switch counterclockwise, allowing the retainer to release.
- Pull the brake pedal rearward to full stop.
- While holding the brake pedal FIRMLY in position rearward, push the switch inward fully until the switch body contacts the brake pedal arm striker plate.
At this point the plunger in the switch should be pushed in.
- Rotate the switch clockwise until a "click" is heard.
- The switch is properly adjusted when there is 7 mm (0.028 in) clearance between the end of the switch barrel and the striker plate on the brake pedal arm.
IMPORTANT:
Do not move the brake pedal during switch adjustment as this will cause an over-adjusted switch which could cause brake drag.
