Installation Procedure

WARNING: This page is about a different car, the 2009 GMC Canyon and 2009 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Handle the MAF sensor carefully.
  • Do not drop the MAF sensor in order to prevent damage to the MAF sensor.
  • Do not damage the screen located on the air inlet end of the MAF.
  • Do not touch the sensing elements.
  • Do not allow solvents and lubricants to come in contact with the sensing elements.
  • Use a small amount of a soap based solution in order to aid in the installation.

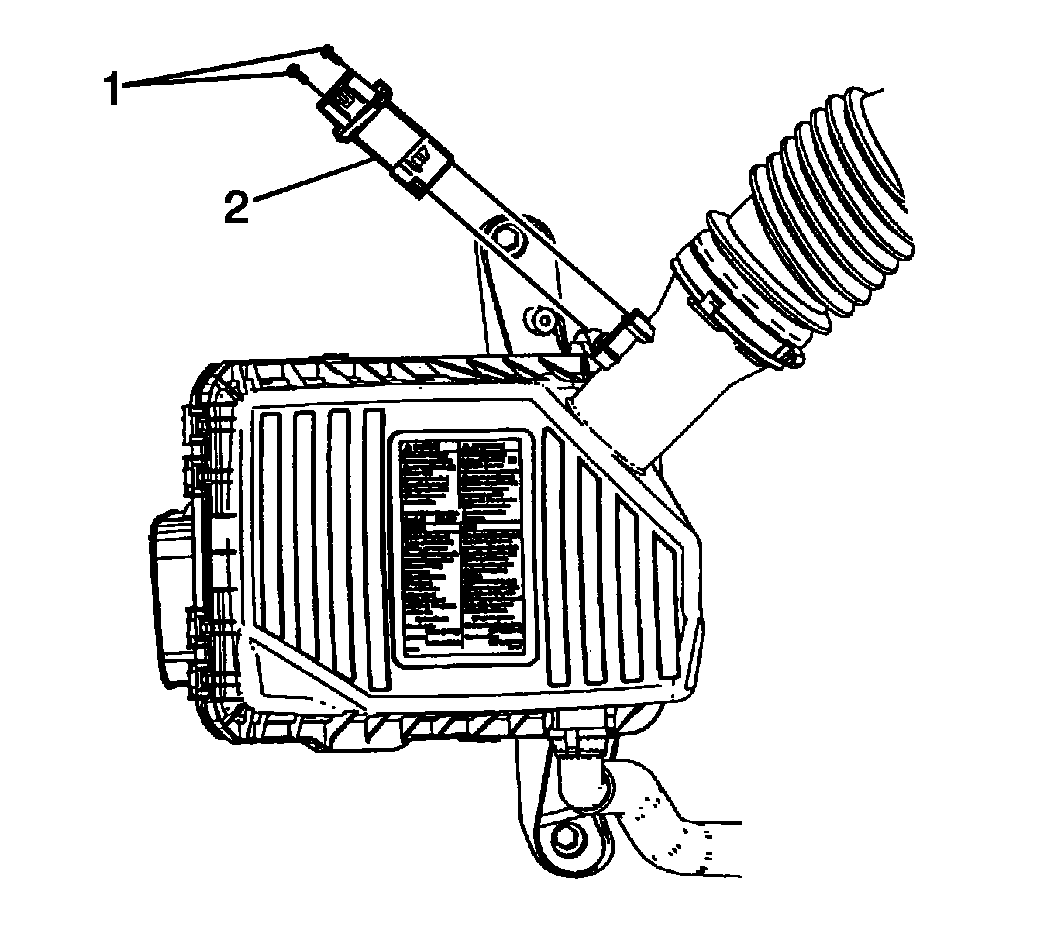

    Fig 1: MAF/IAT Sensor And Screws
    GM1969053Courtesy of GENERAL MOTORS CORP.
  1. Insert the MAF/IAT sensor (2) into the air cleaner assembly.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the MAF/IAT sensor screws (1).

    Tighten:  Tighten the screws to 1.5 N.m (13 lb in).

    3. Fig 2: Engine Wiring Harness Electrical Connector And Mass Air Flow (MAF)/intake Air Temperature (IAT) Sensor
    GM1969052Courtesy of GENERAL MOTORS CORP.
  3. Connect the engine wiring harness electrical connector (1) to the MAF/IAT sensor (2).
