Installation Procedure
WARNING: This page is about a different car, the 2009 GMC Canyon and 2009 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
- Lightly lubricate the sensor seal with clean engine oil.
- Press the sensor fully into the fuel tank module.

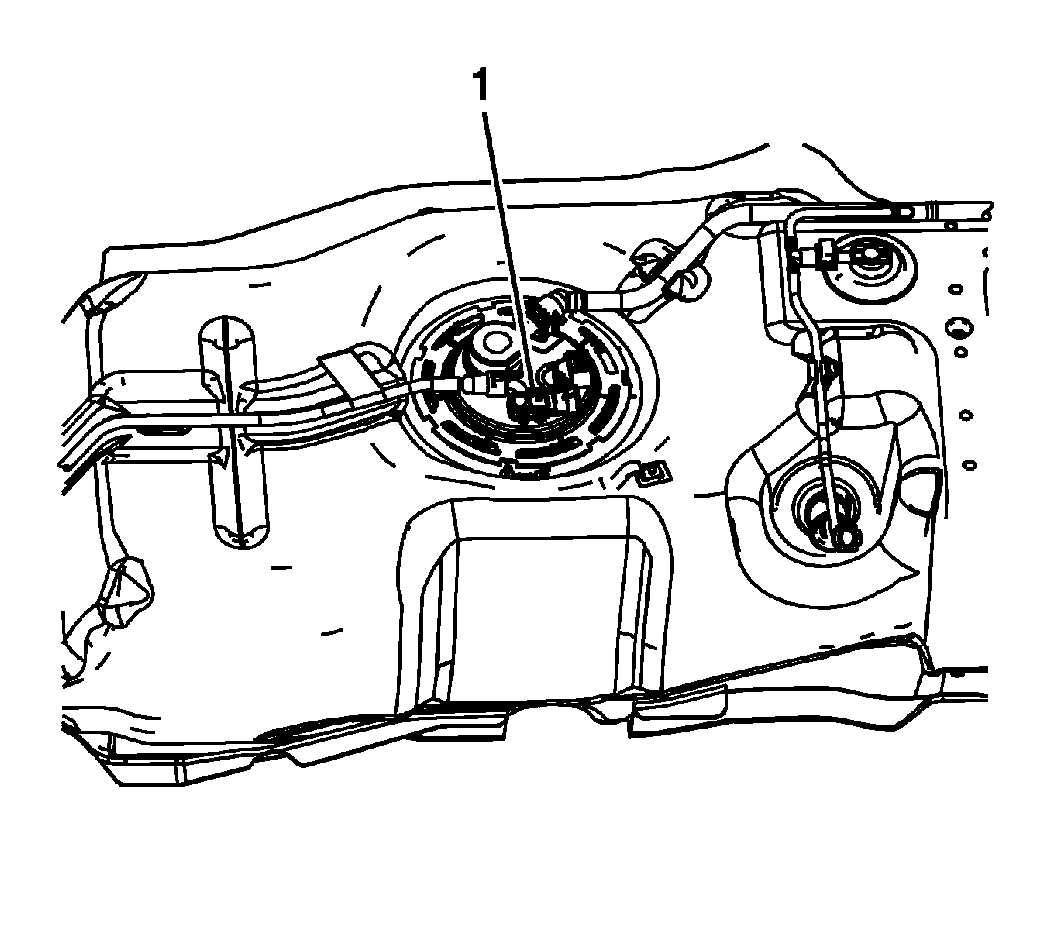

- Connect the chassis wiring harness electrical connector to the pressure sensor (1).
- Install the left pickup box wheelhouse liner. Refer to Pickup Box Wheelhouse Liner Replacement .
- If the vehicle is a crew cab, install the fuel tank. Refer to Fuel Tank Replacement .
- Lower the vehicle.
