Installation Procedure

WARNING: This page is about a different car, the 2009 GMC Canyon and 2009 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

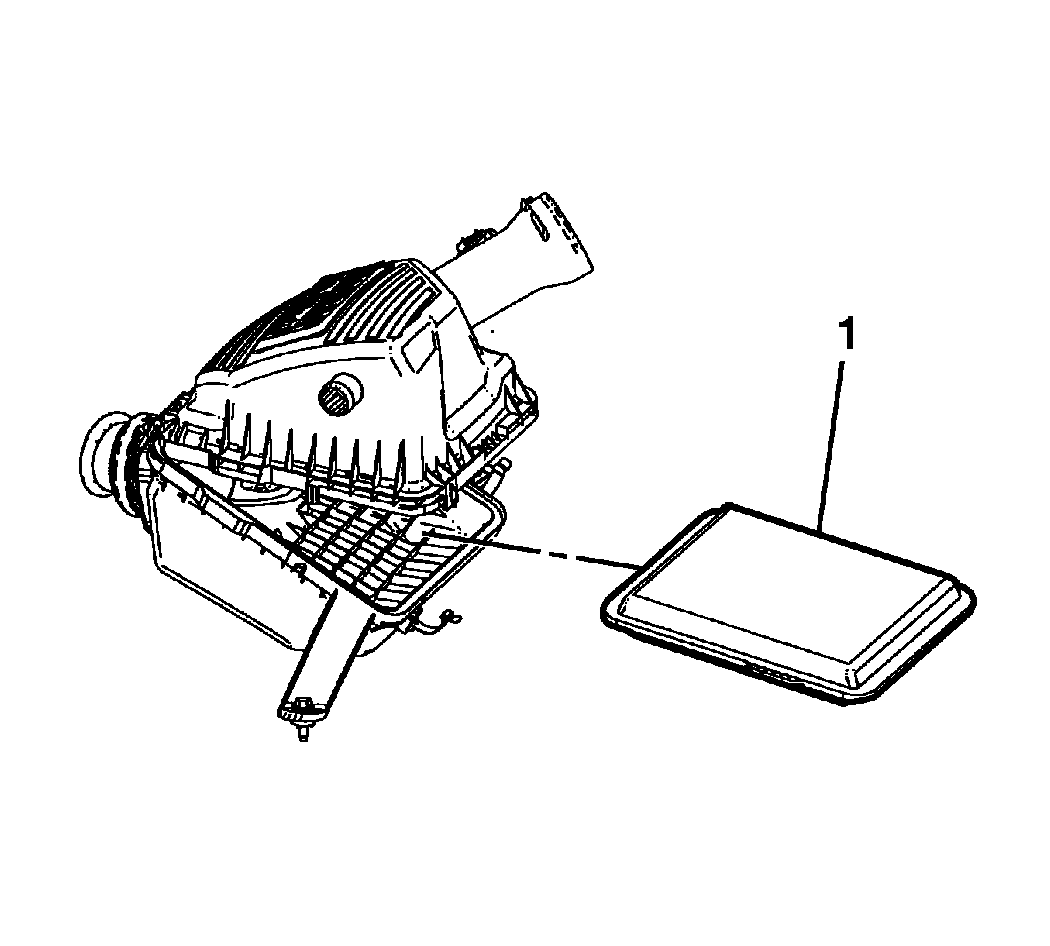

Fig 1: Air Filter Element

Courtesy of GENERAL MOTORS CORP.

Install the air filter element (1), and close the air cleaner housing cover.

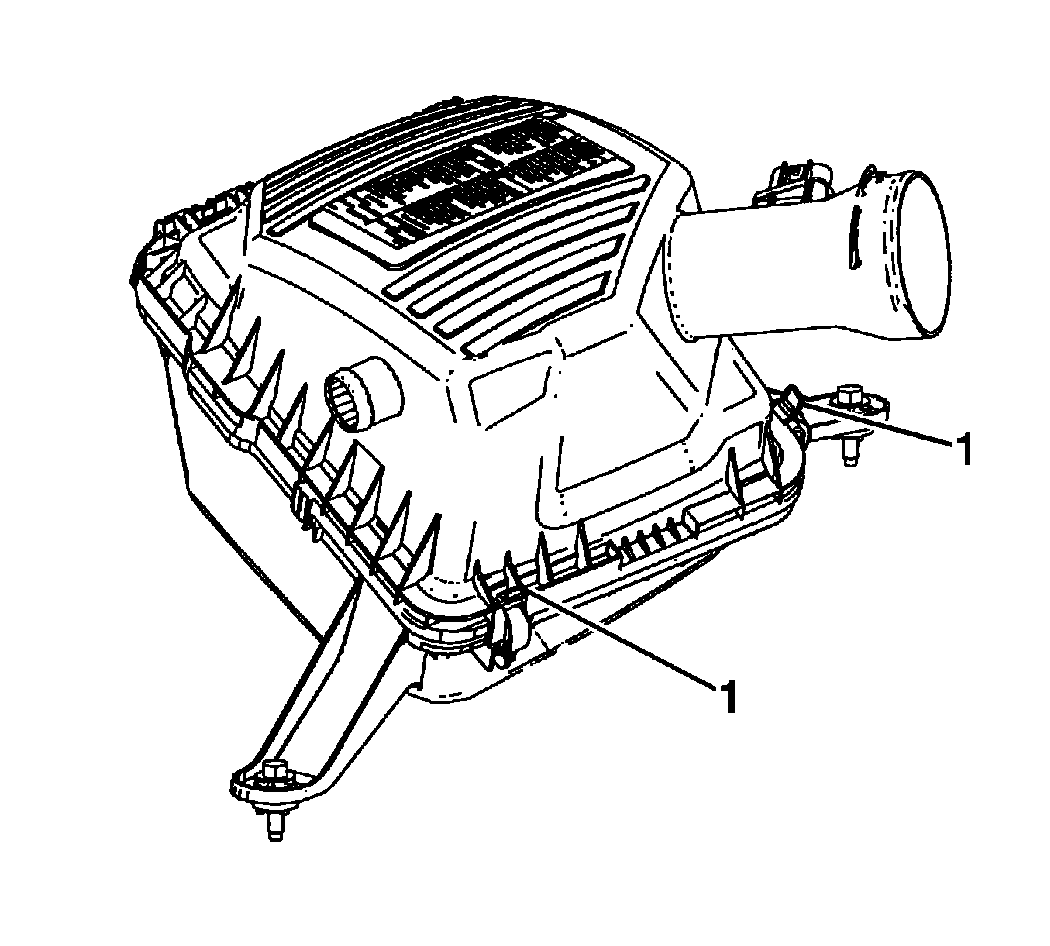

Fig 2: Air Cleaner Housing Retainers

Courtesy of GENERAL MOTORS CORP.

Engage the 2 air cleaner housing retainers (1) securing the cover.

Fig 3: Secondary Air Injection (AIR) Pump Inlet Hose

Courtesy of GENERAL MOTORS CORP.

Connect the AIR pump inlet hose (1) quick connect fitting to the air cleaner assembly. Refer to Plastic Collar Quick Connect Fitting Service .

Fig 4: Engine Wiring Harness Electrical Connector And Mass Air Flow (MAF)/intake Air Temperature (IAT) Sensor

Courtesy of GENERAL MOTORS CORP.

Connect the engine wiring harness electrical connector (1) to the MAF/IAT sensor (2).
Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
