Installation Procedure

WARNING: This page is about a different car, the 2009 GMC Canyon and 2009 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lightly lubricate the O-ring seal with clean engine oil.

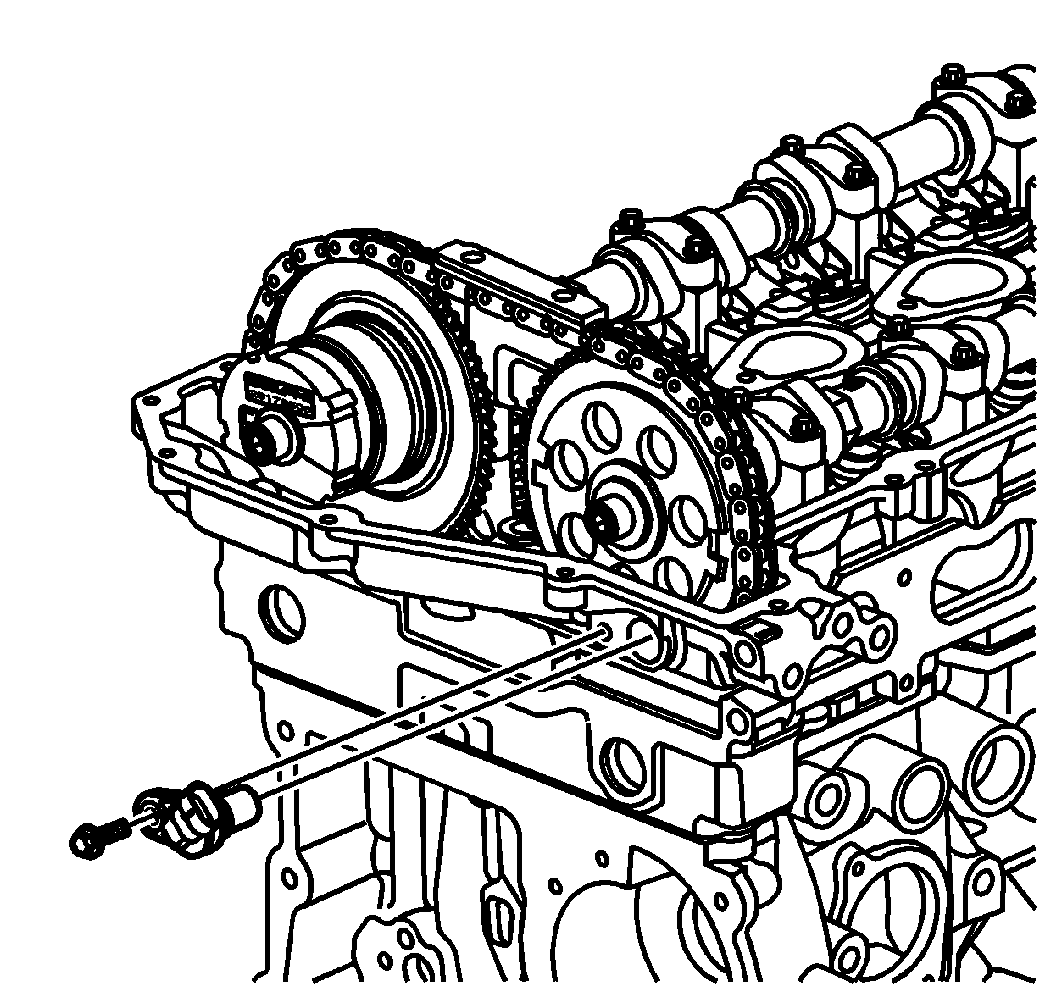

    2. Fig 1: View Of Intake Camshaft Sensor
    GM858173Courtesy of GENERAL MOTORS CORP.
  2. Install the intake CMP sensor into the cylinder head.
  3. Add sealer GM P/N 12346004 (Canadian P/N 10953480) to the CMP sensor bolt threads.
    4. CAUTION: Refer to Fastener Caution .
  4. Install the intake CMP sensor bolt.

    Tighten:  Tighten the CMP sensor bolt to 10 N.m (89 lb in).

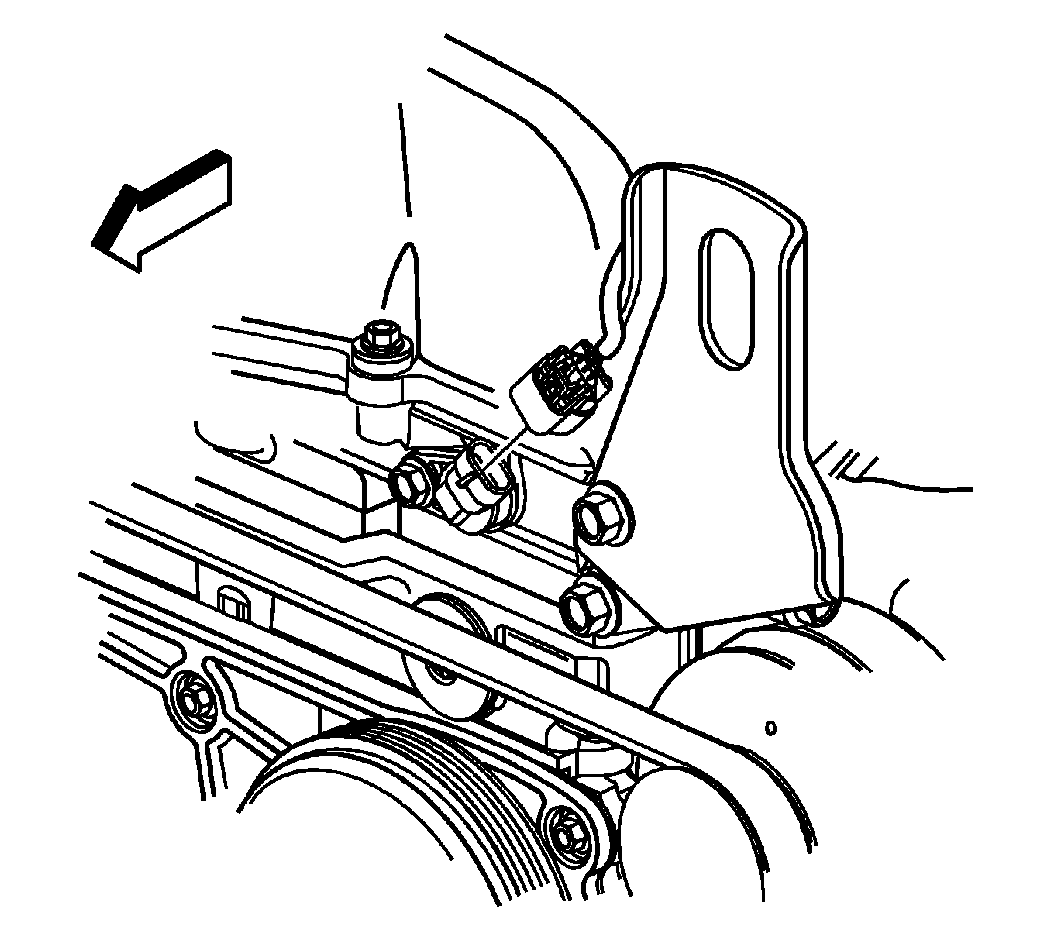

    5. Fig 2: View Of Intake CMP Sensor Engine Wiring Harness Connector
    GM1350719Courtesy of GENERAL MOTORS CORP.
  5. Connect the engine wiring harness electrical connector to the intake CMP sensor.
