Interior Lights Schematics

WARNING: This page is about a different car, the 2009 GMC Canyon and 2009 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

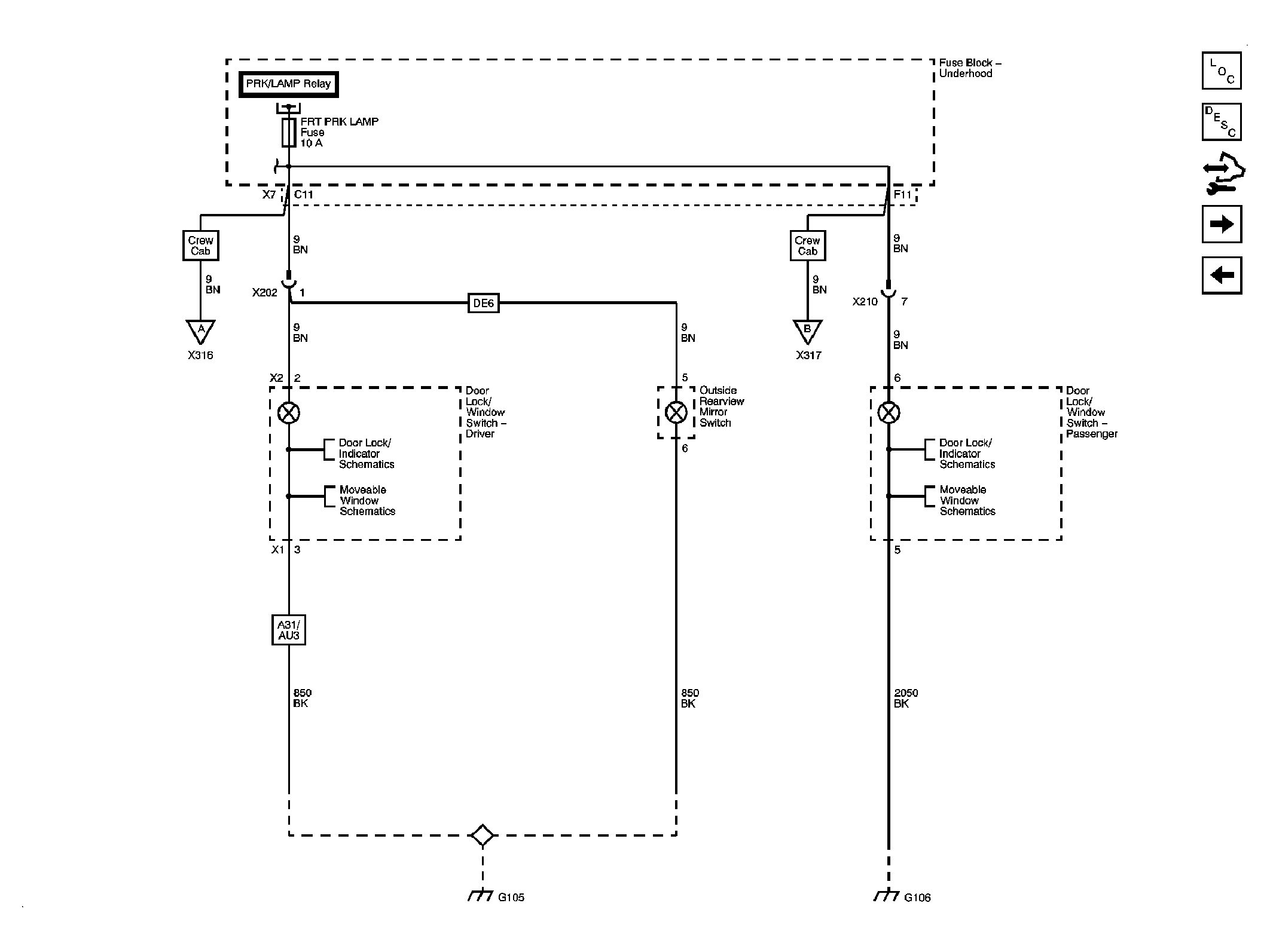

Fig 1: Interior Lights Schematic (1 of 2)

Courtesy of GENERAL MOTORS CORP.

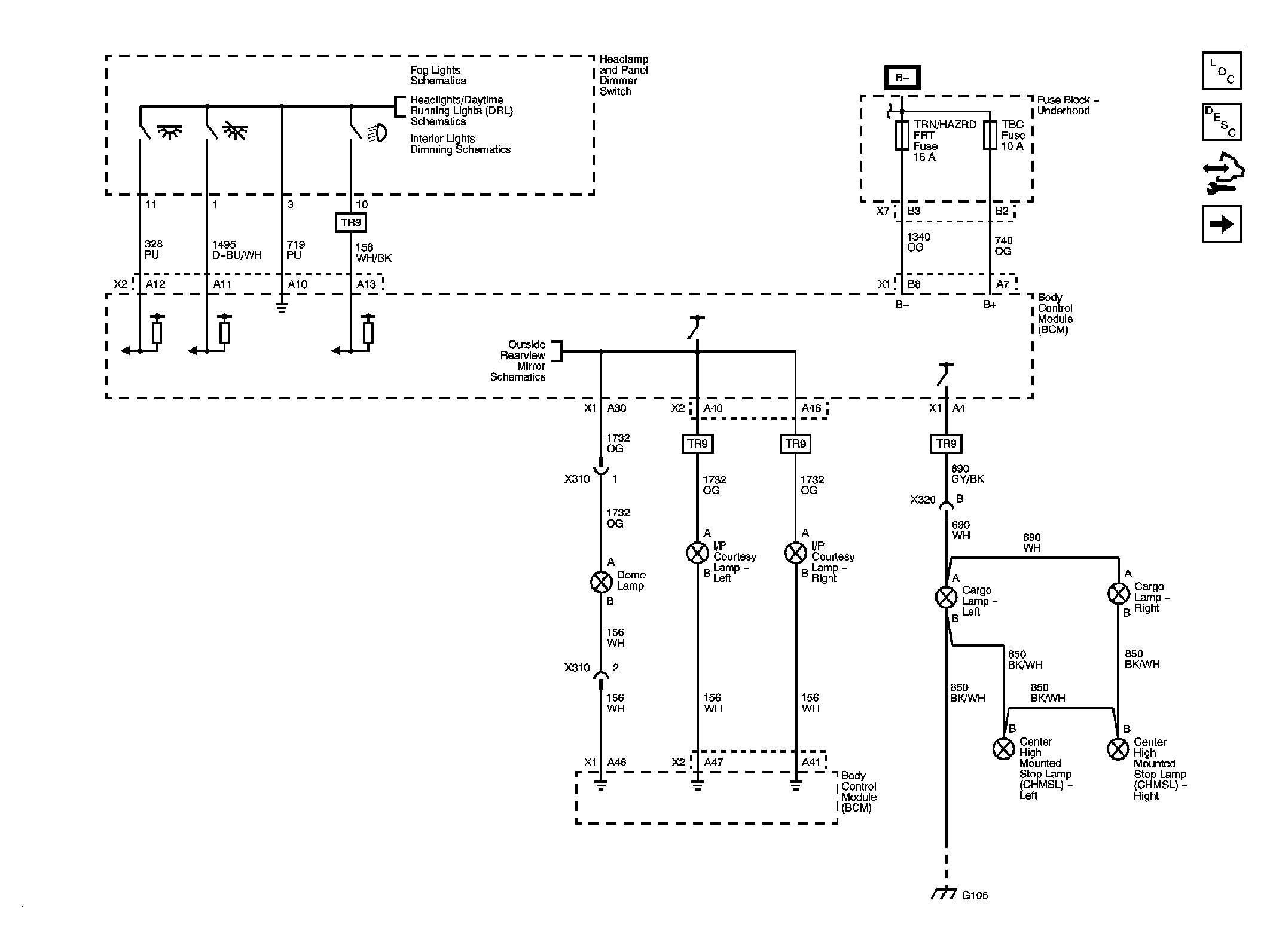

Fig 2: Interior Lights Schematic (2 of 2)

Courtesy of GENERAL MOTORS CORP.
