Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

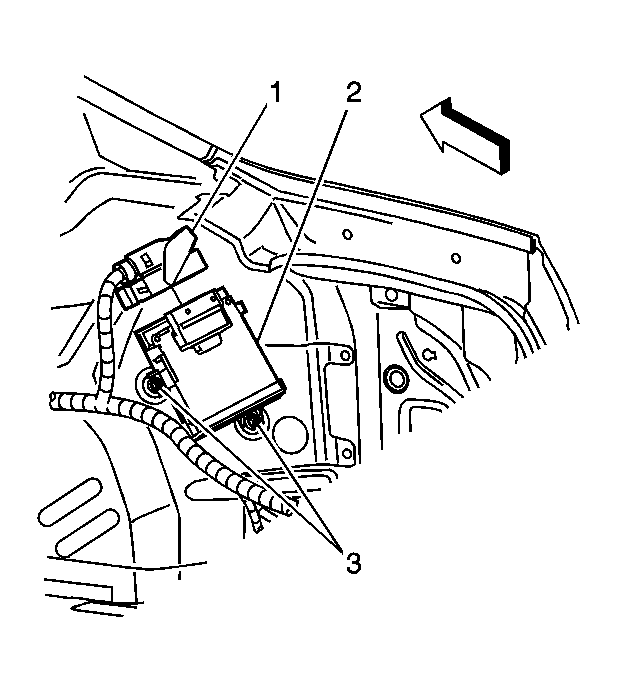

    Fig 1: View Of Electronic Suspension Control Module
    GM1530519Courtesy of GENERAL MOTORS CORP.
  1. Install the ESC module (2).
  2. Connect the ESC module electrical connector (1).
    NOTE: Refer to Fastener Notice .
  3. Tighten the ESC module nuts (3).

    Tighten:  Tighten the nuts to 9 N.m (80 lb in).

  4. Install the right rear trim panel.
  5. Refer to Control Module References for programming and setup information.
