Antilock Brake System Schematics (JL7)

WARNING: This page is about a different car, the 2008 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

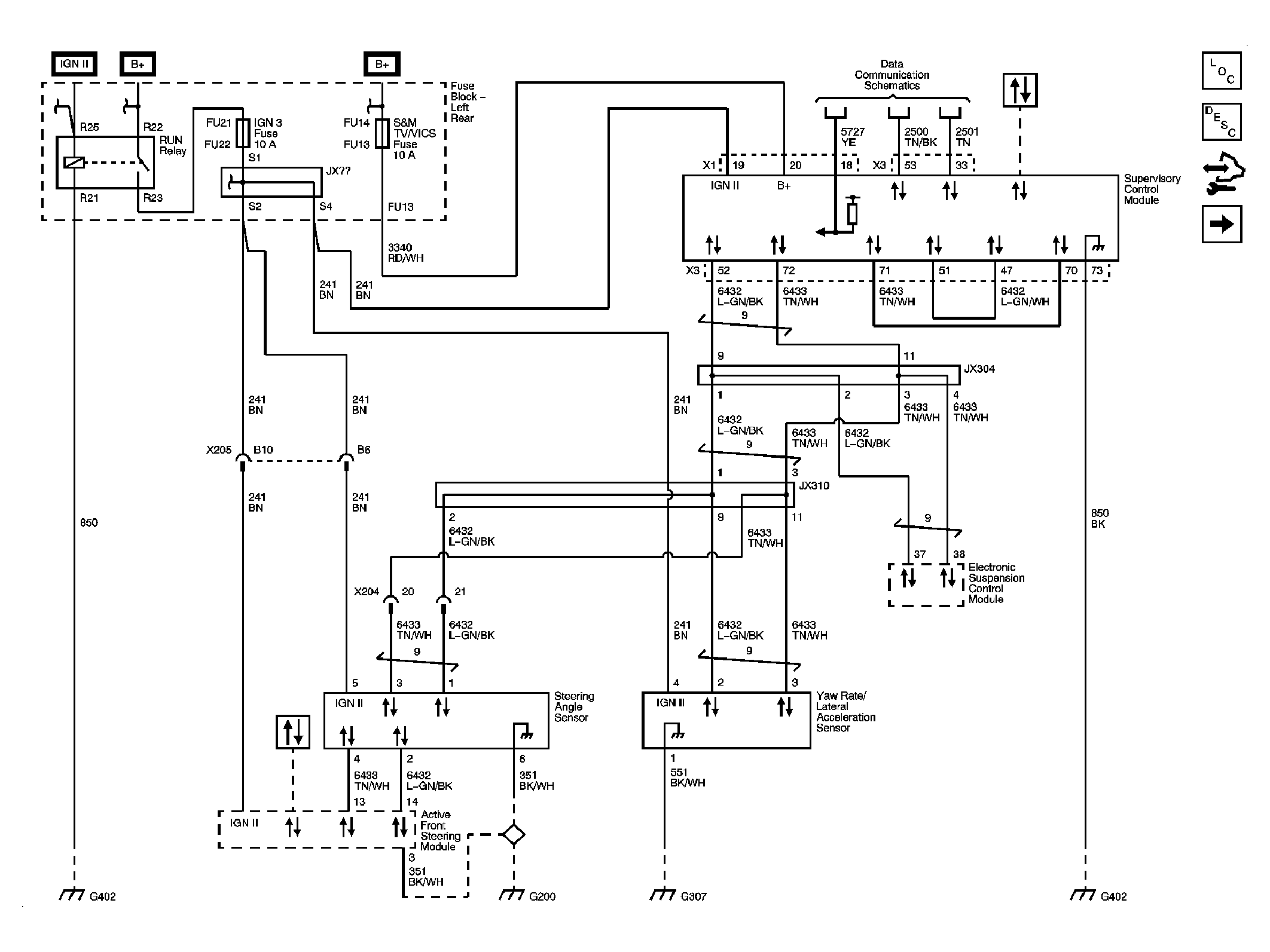

Fig 1: Steering Angle and Acceleration Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

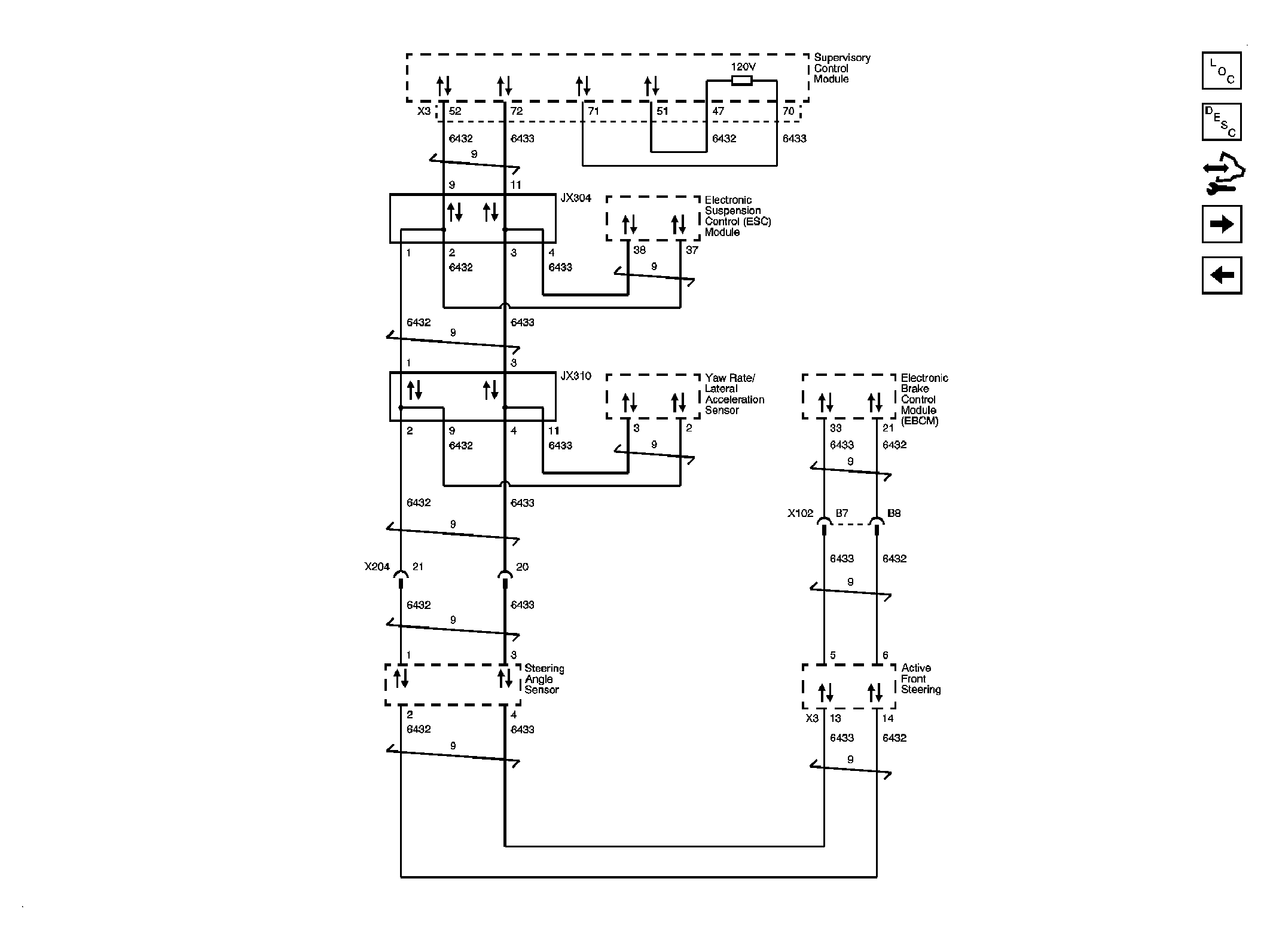

Fig 2: Data Communication Schematic

Courtesy of GENERAL MOTORS CORP.

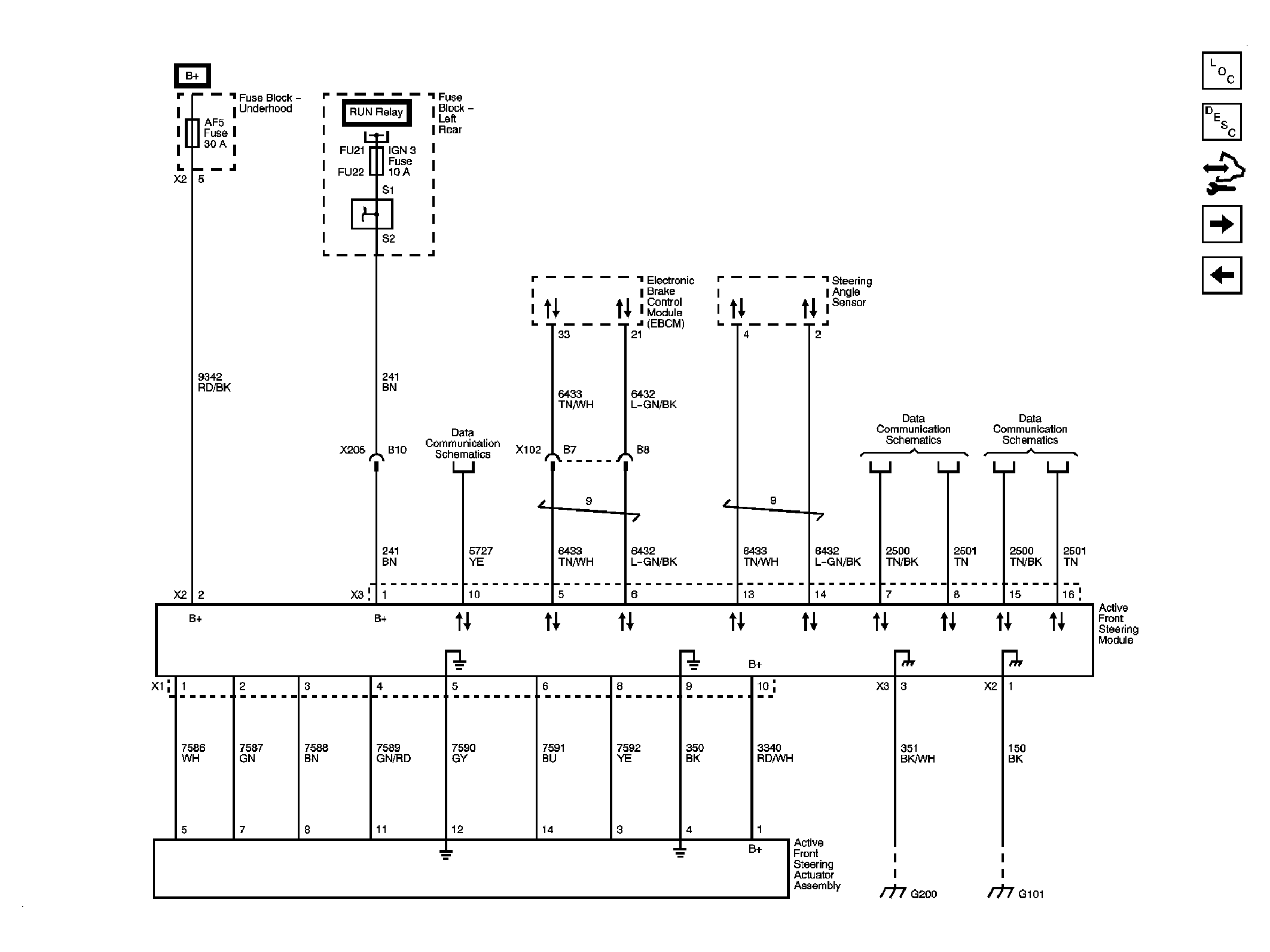

Fig 3: Active Front Steering Module and Actuator Schematic

Courtesy of GENERAL MOTORS CORP.

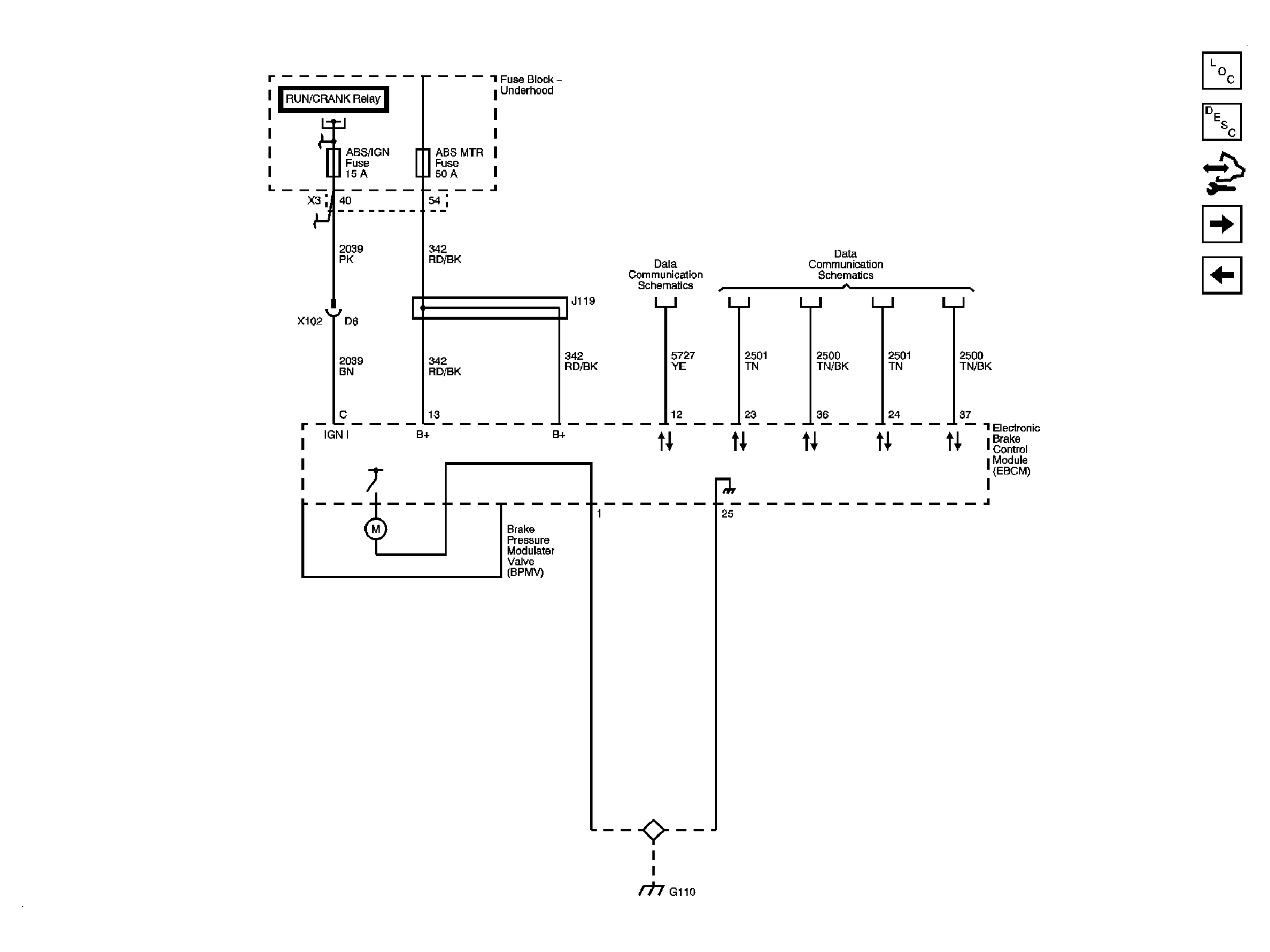

Fig 4: EBCM Power, Ground, and DLC Schematic

Courtesy of GENERAL MOTORS CORP.

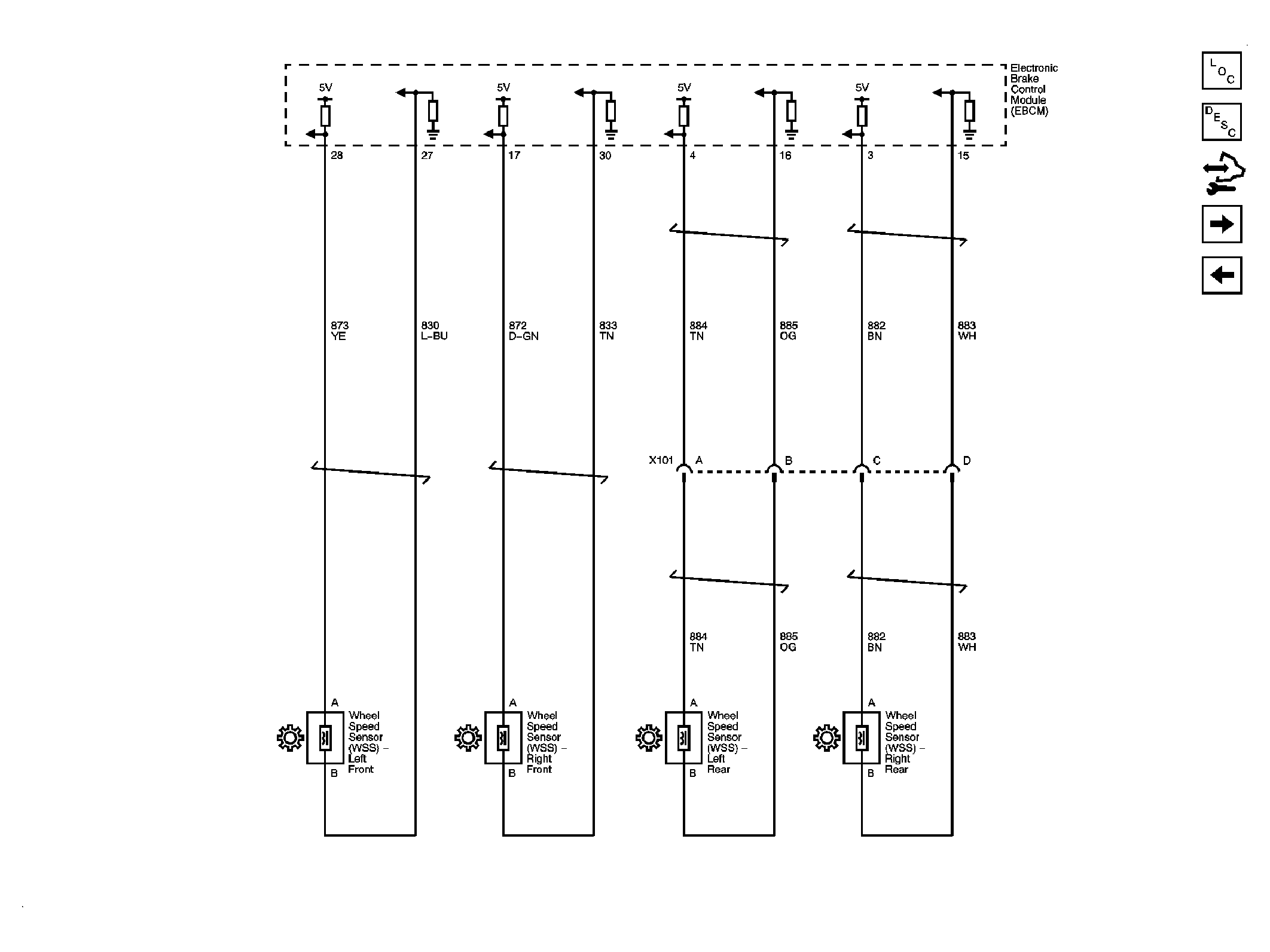

Fig 5: Wheel Speed Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

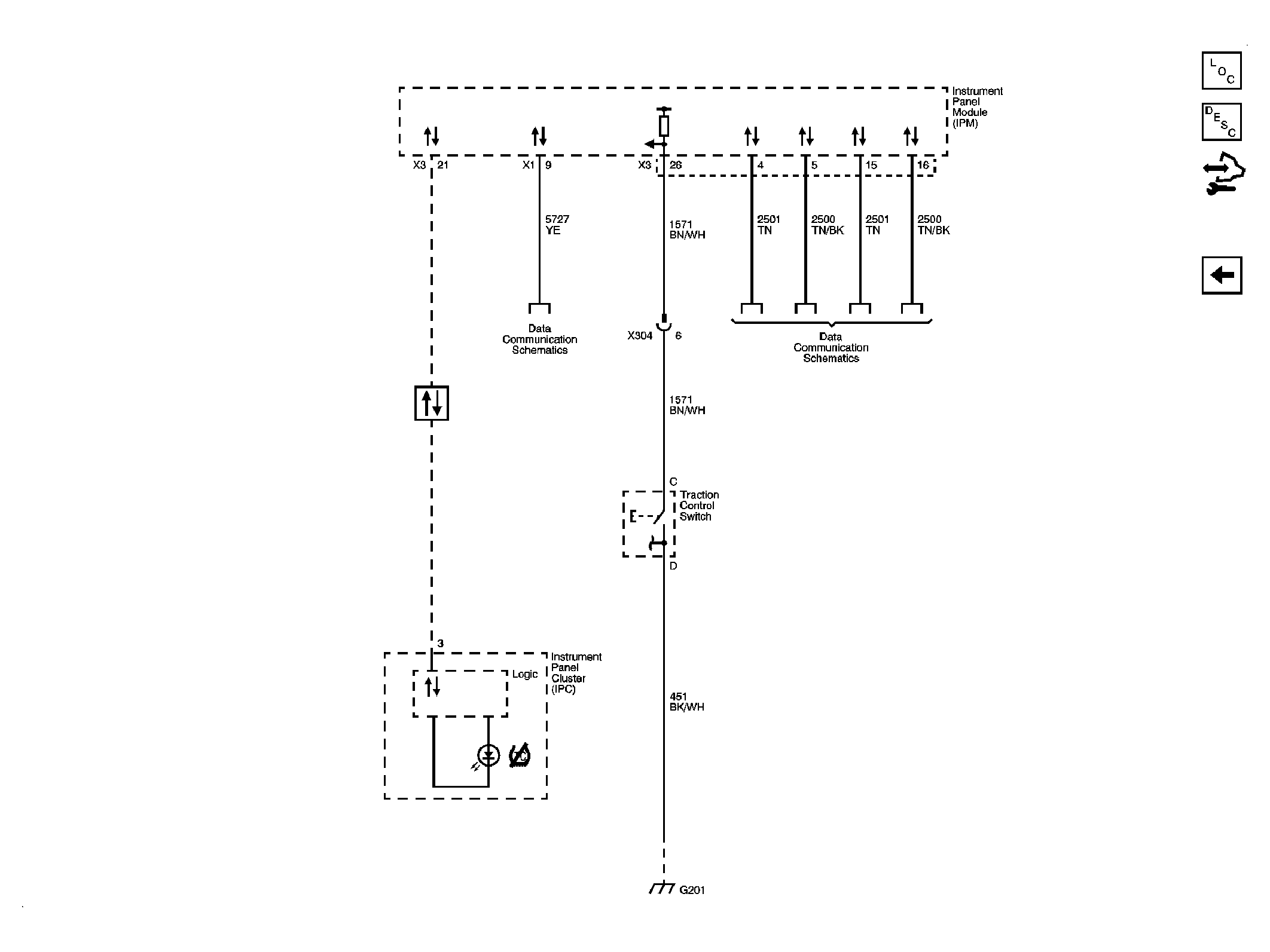

Fig 6: Traction Control Schematic

Courtesy of GENERAL MOTORS CORP.
