Antilock Brake System Schematics (Except JL7)

WARNING: This page is about a different car, the 2008 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

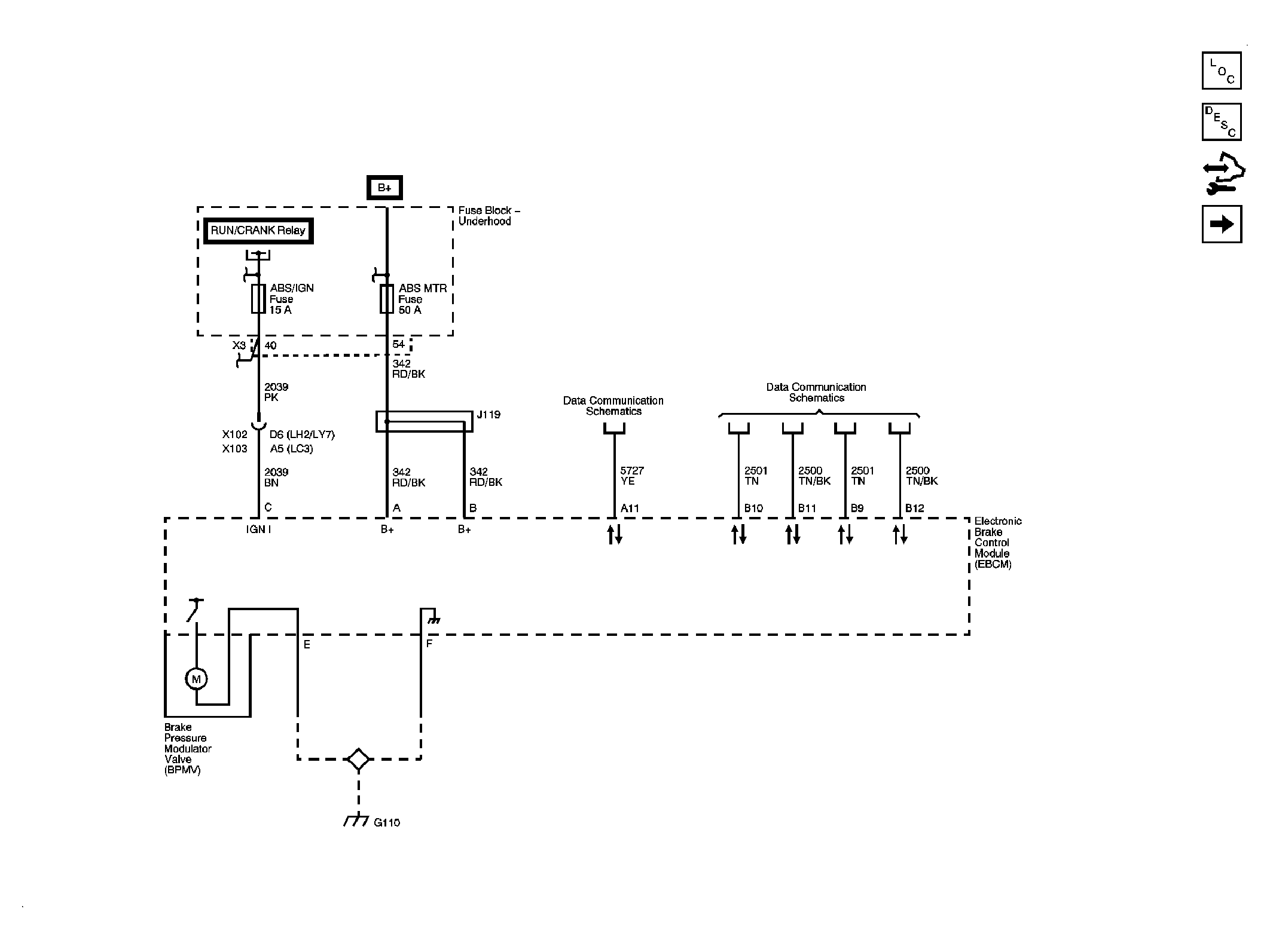

Fig 1: EBCM Module Power, Ground and DLC Schematic

Courtesy of GENERAL MOTORS CORP.

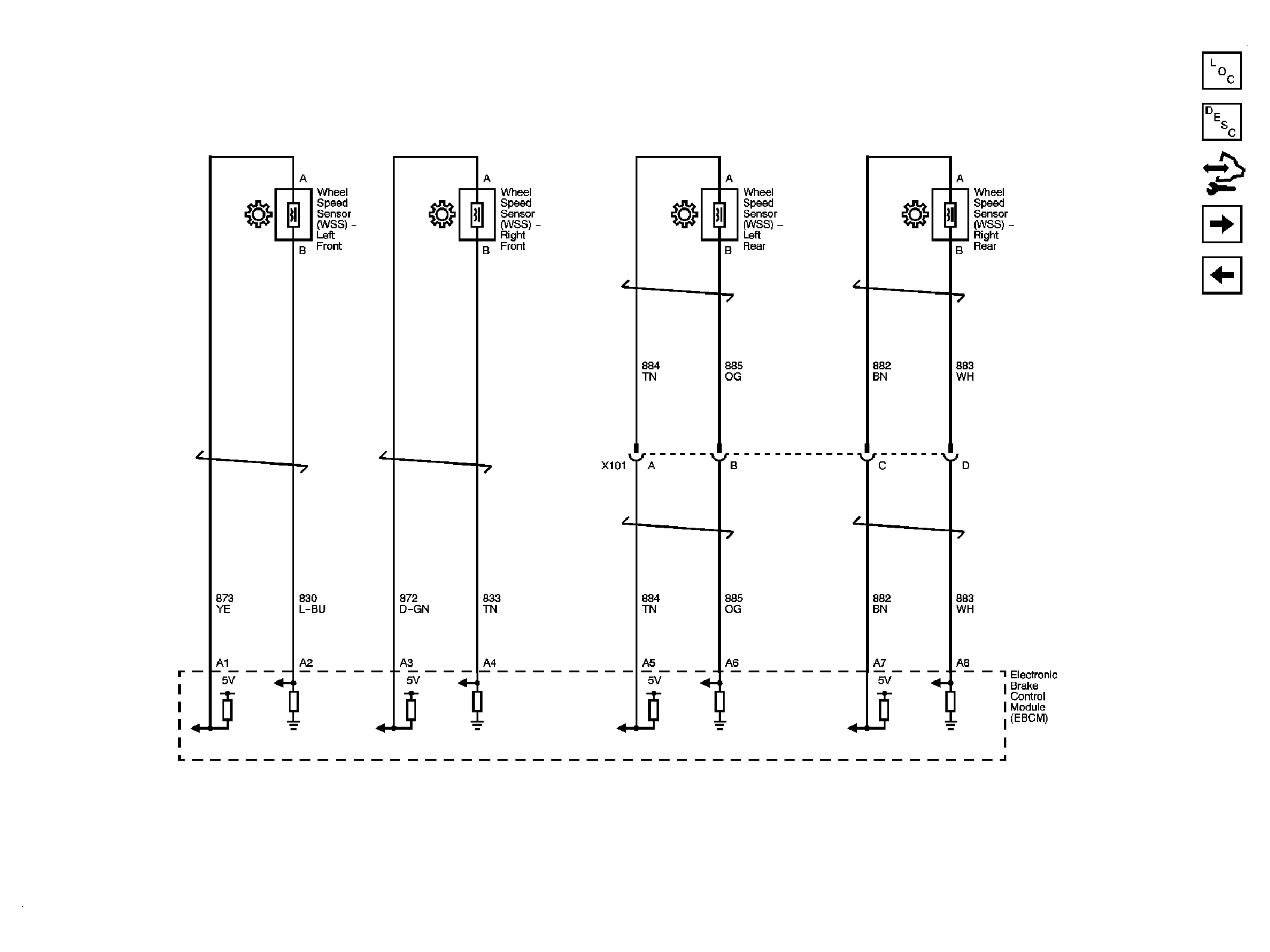

Fig 2: Wheel Speed Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

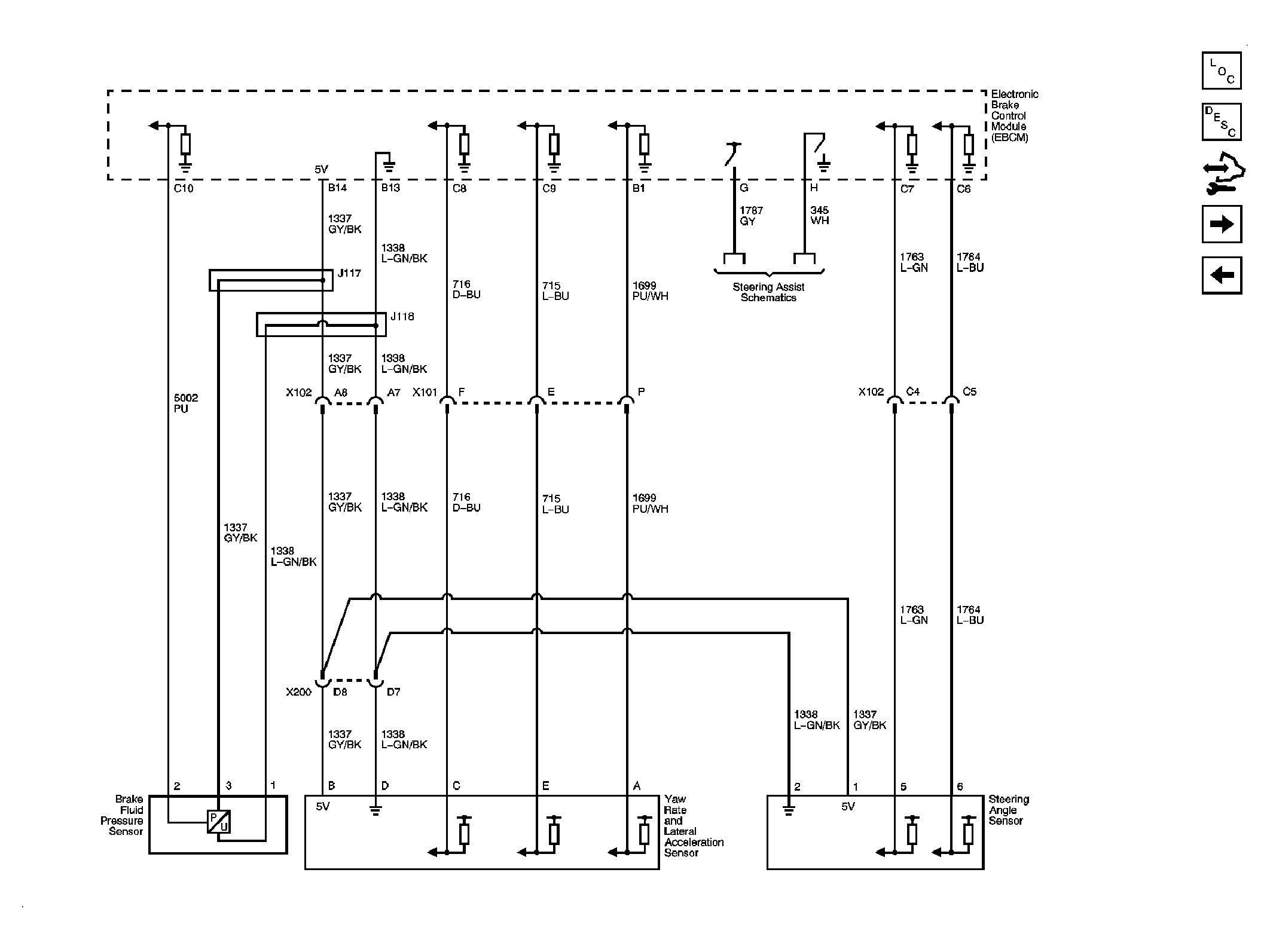

Fig 3: Stability Control System Schematic

Courtesy of GENERAL MOTORS CORP.

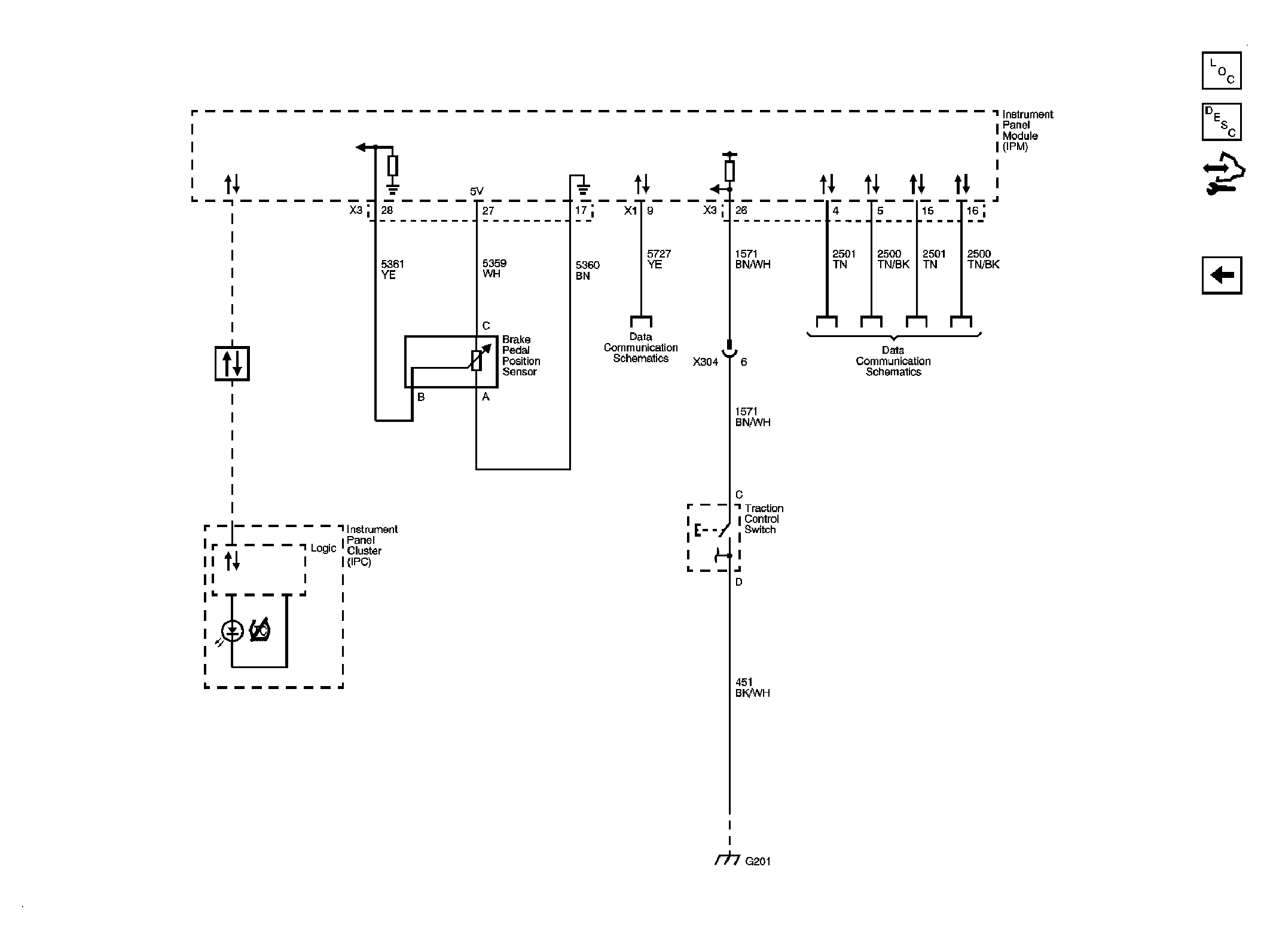

Fig 4: Indicator and Traction Control Schematic

Courtesy of GENERAL MOTORS CORP.
