Ground Distribution Schematics

WARNING: This page is about a different car, the 2008 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

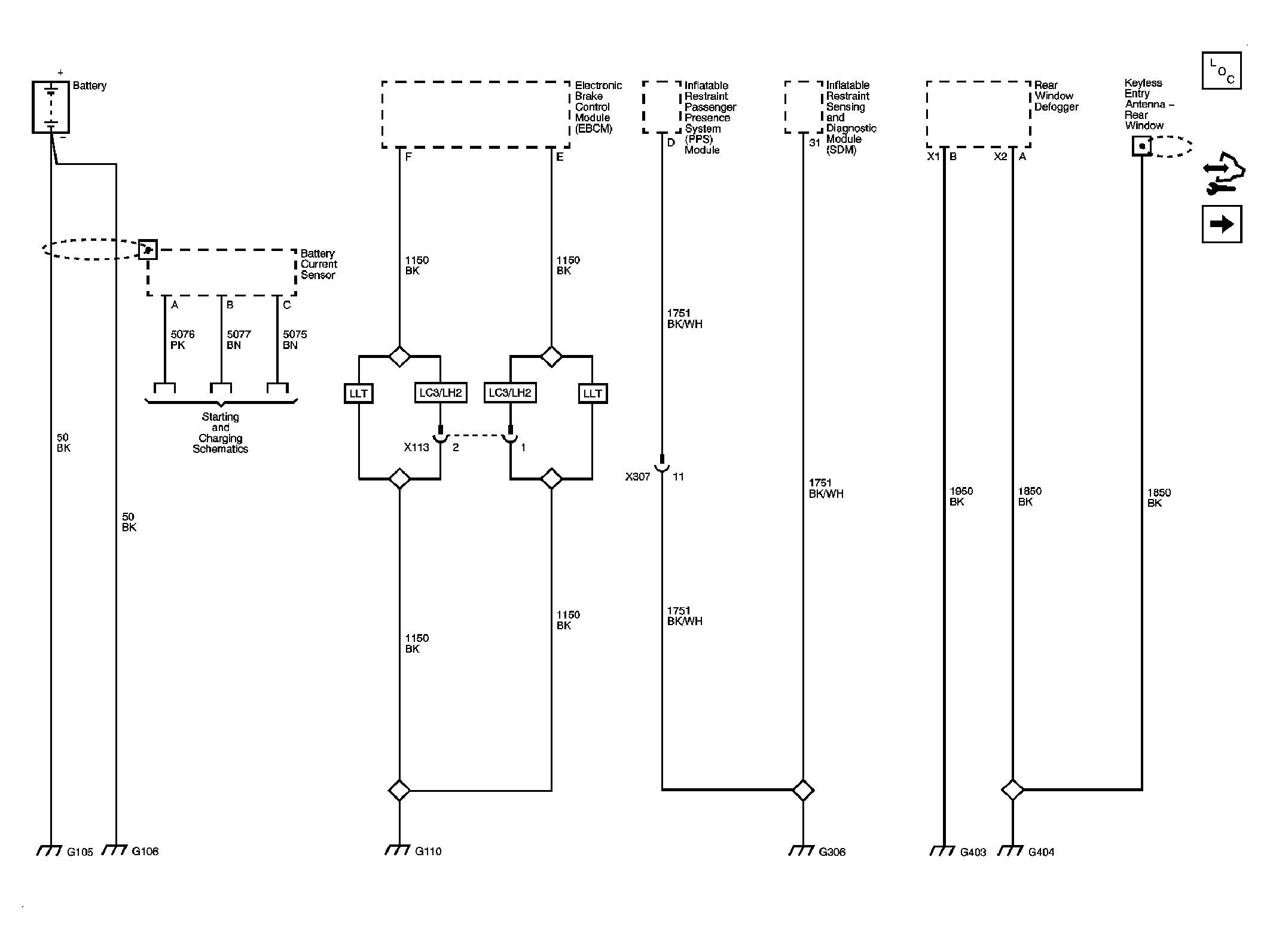

Fig 1: G105, G106, G110, G306, G403 and G404 Schematic

Courtesy of GENERAL MOTORS CORP.

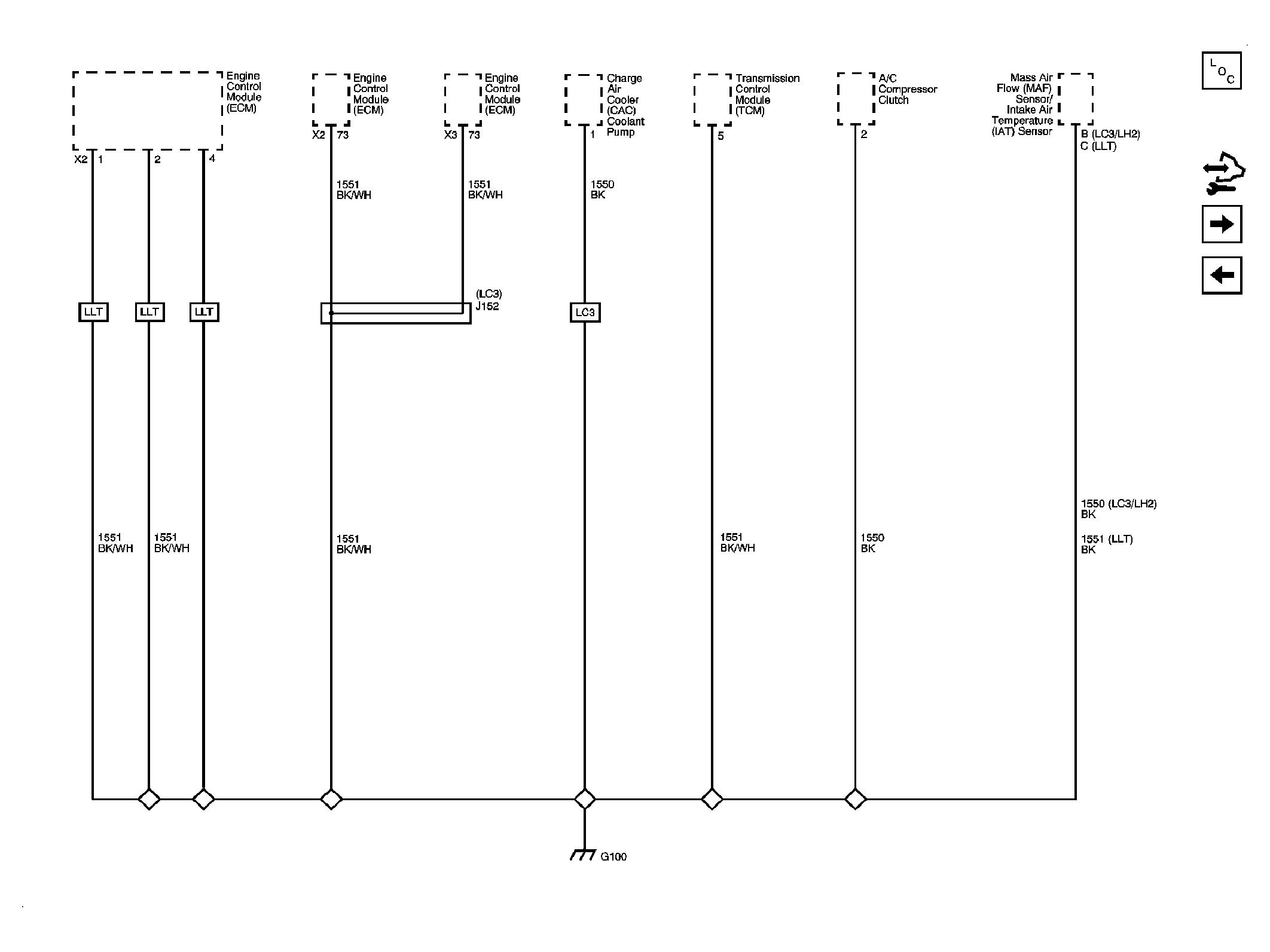

Fig 2: G100 Schematic

Courtesy of GENERAL MOTORS CORP.

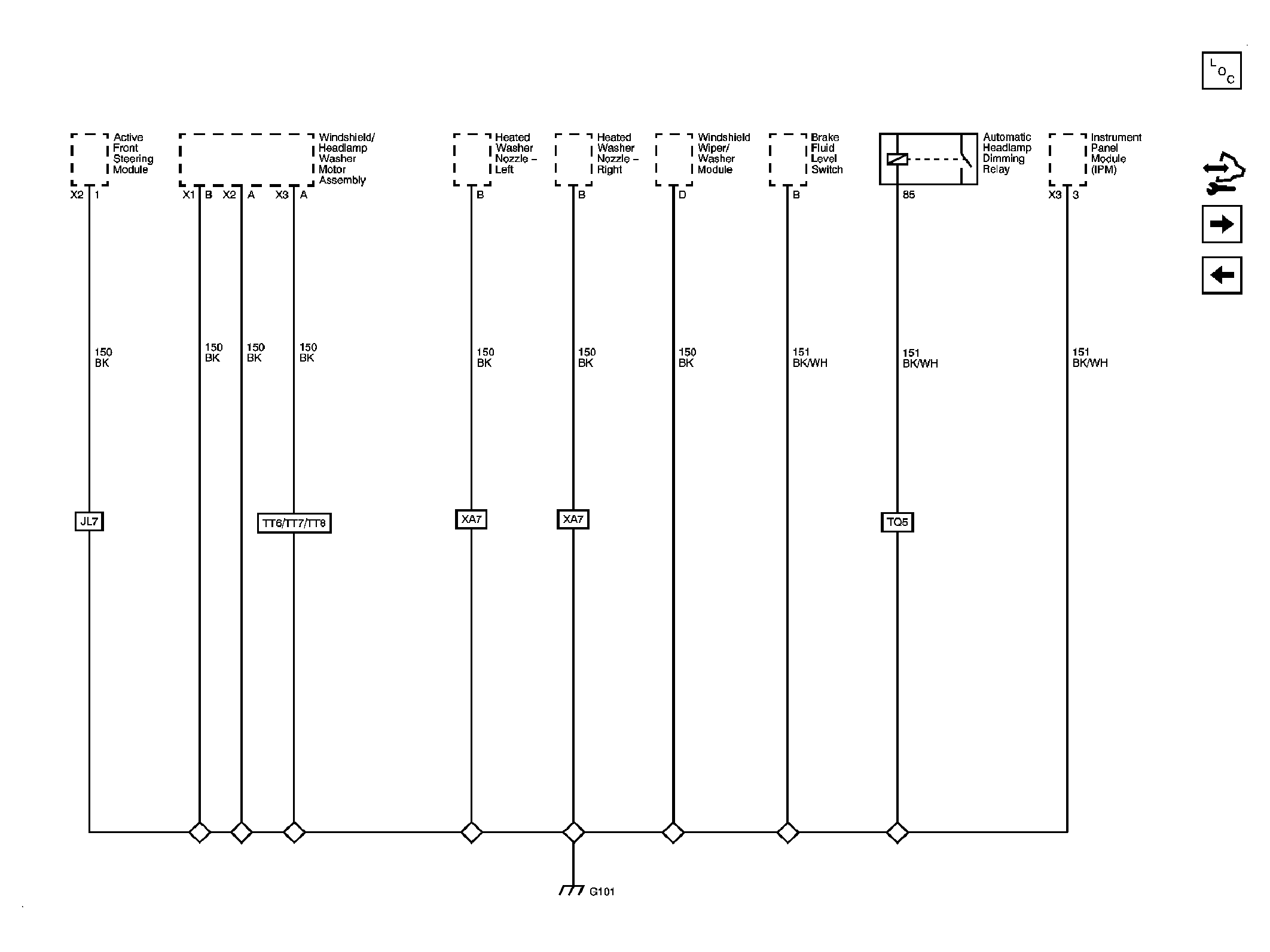

Fig 3: G101 Schematic

Courtesy of GENERAL MOTORS CORP.

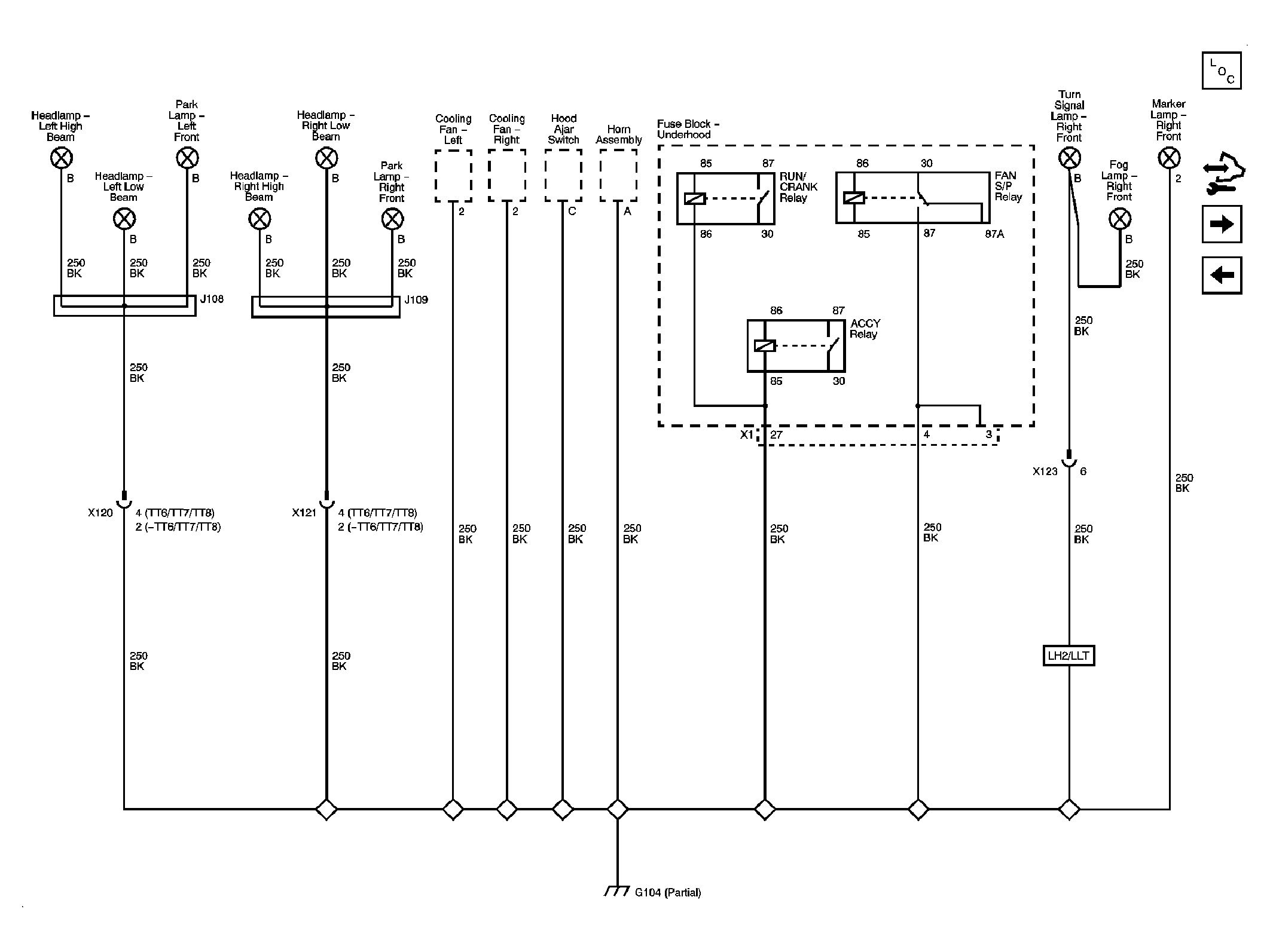

Fig 4: G104 Schematic (1 of 2)

Courtesy of GENERAL MOTORS CORP.

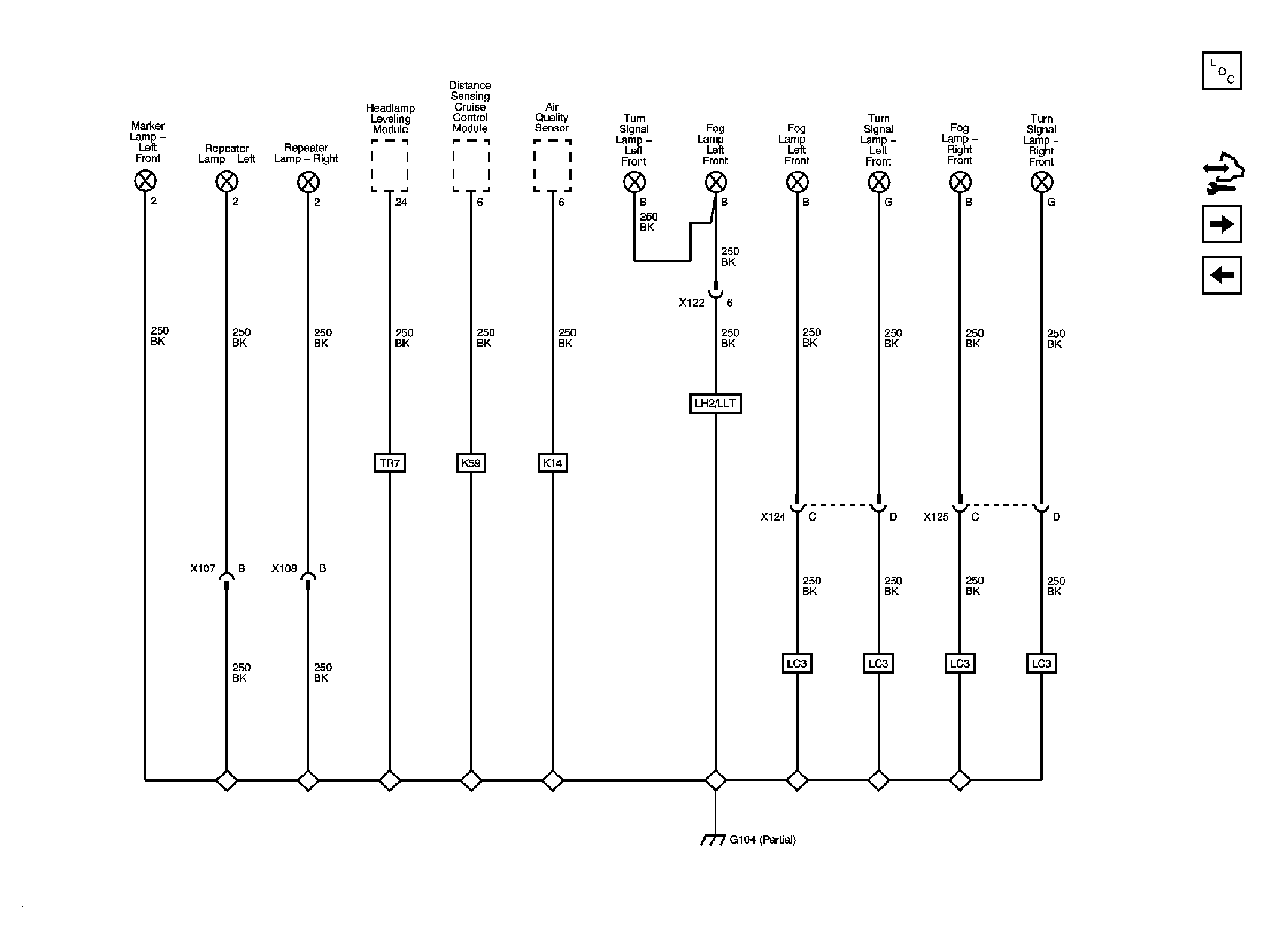

Fig 5: G104 Schematic (2 of 2)

Courtesy of GENERAL MOTORS CORP.

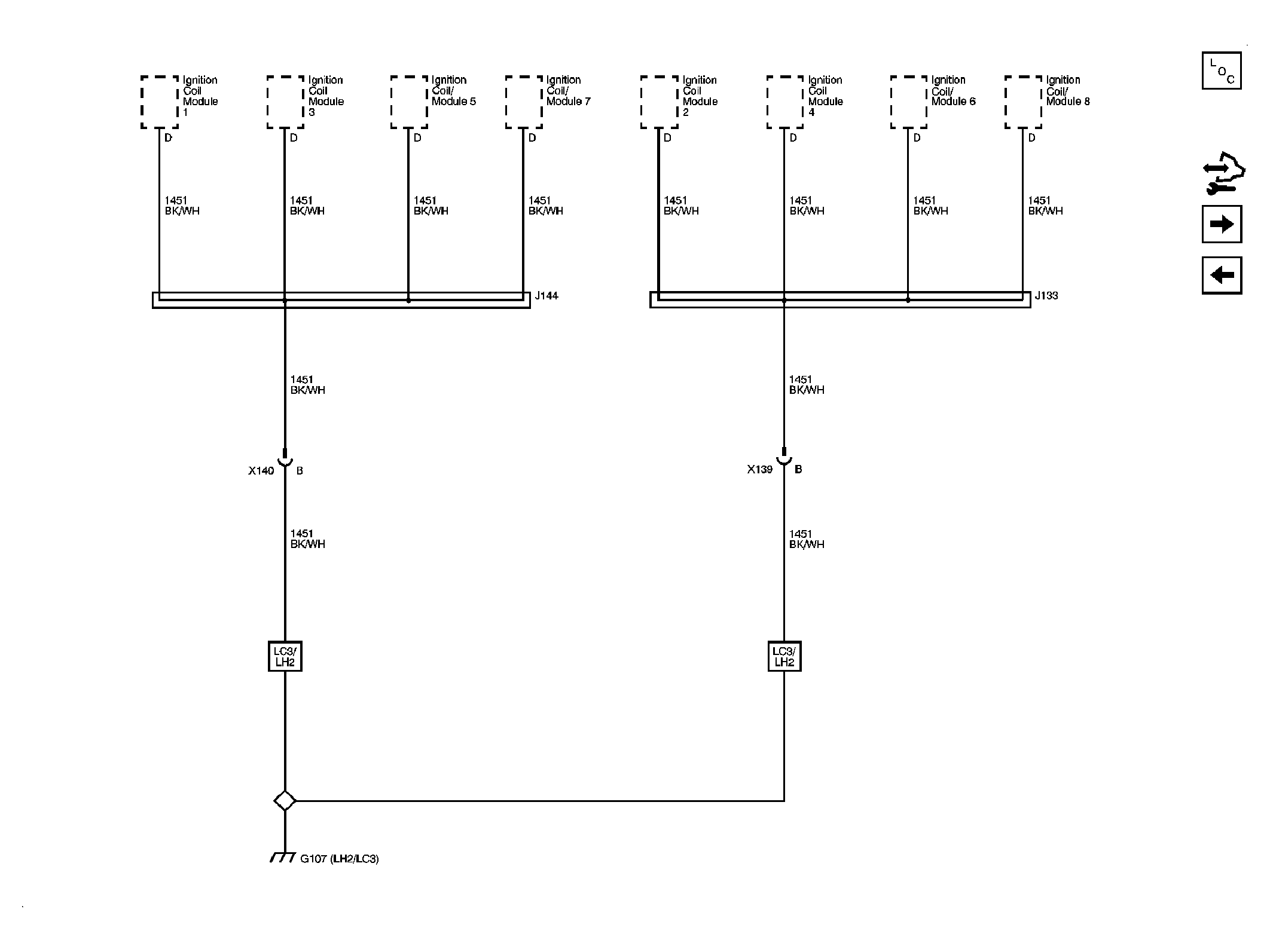

Fig 6: G107 Schematic (LC3/LH2)

Courtesy of GENERAL MOTORS CORP.

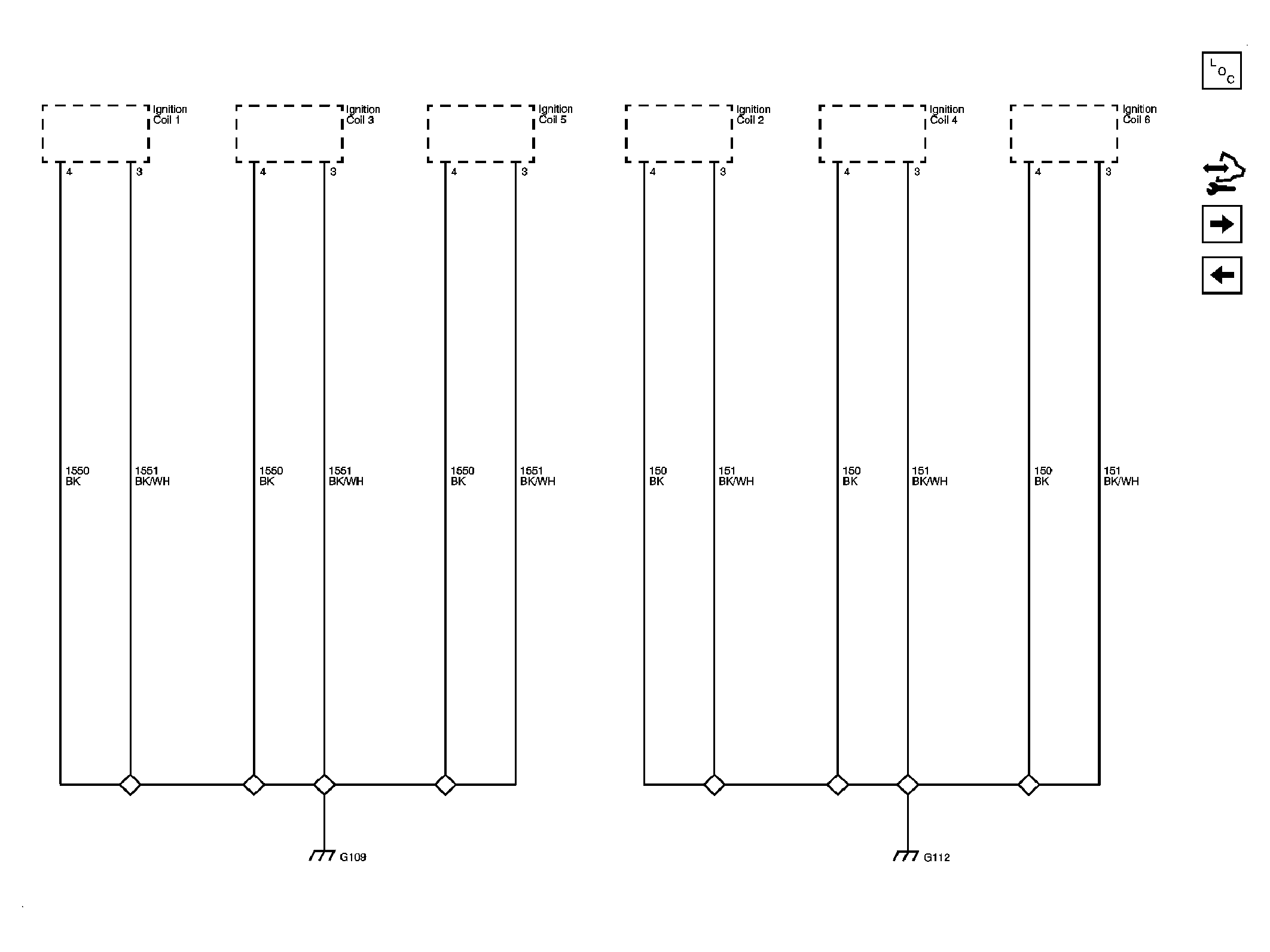

Fig 7: G109 (LLT) and G112 (LLT) Schematic

Courtesy of GENERAL MOTORS CORP.

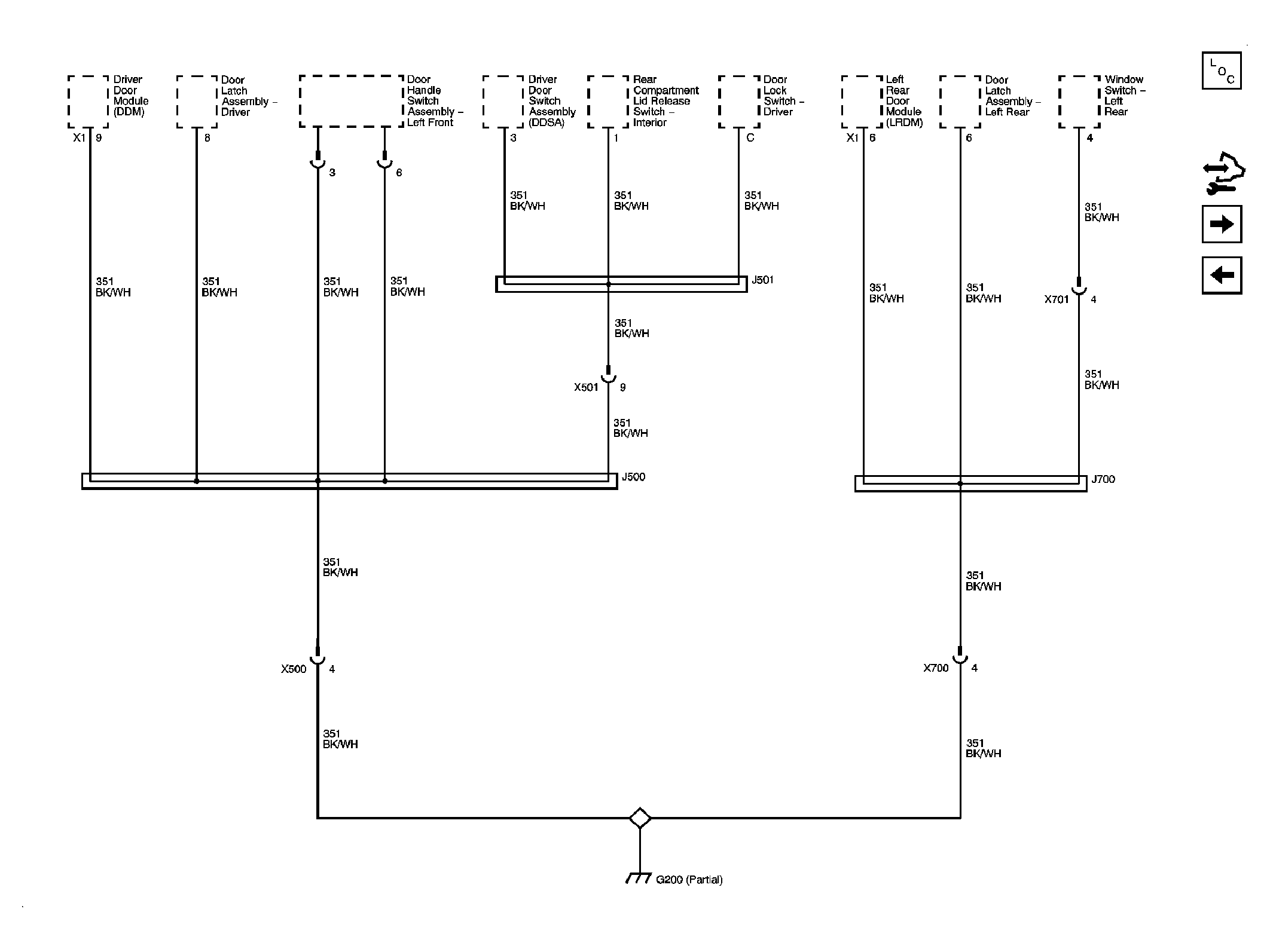

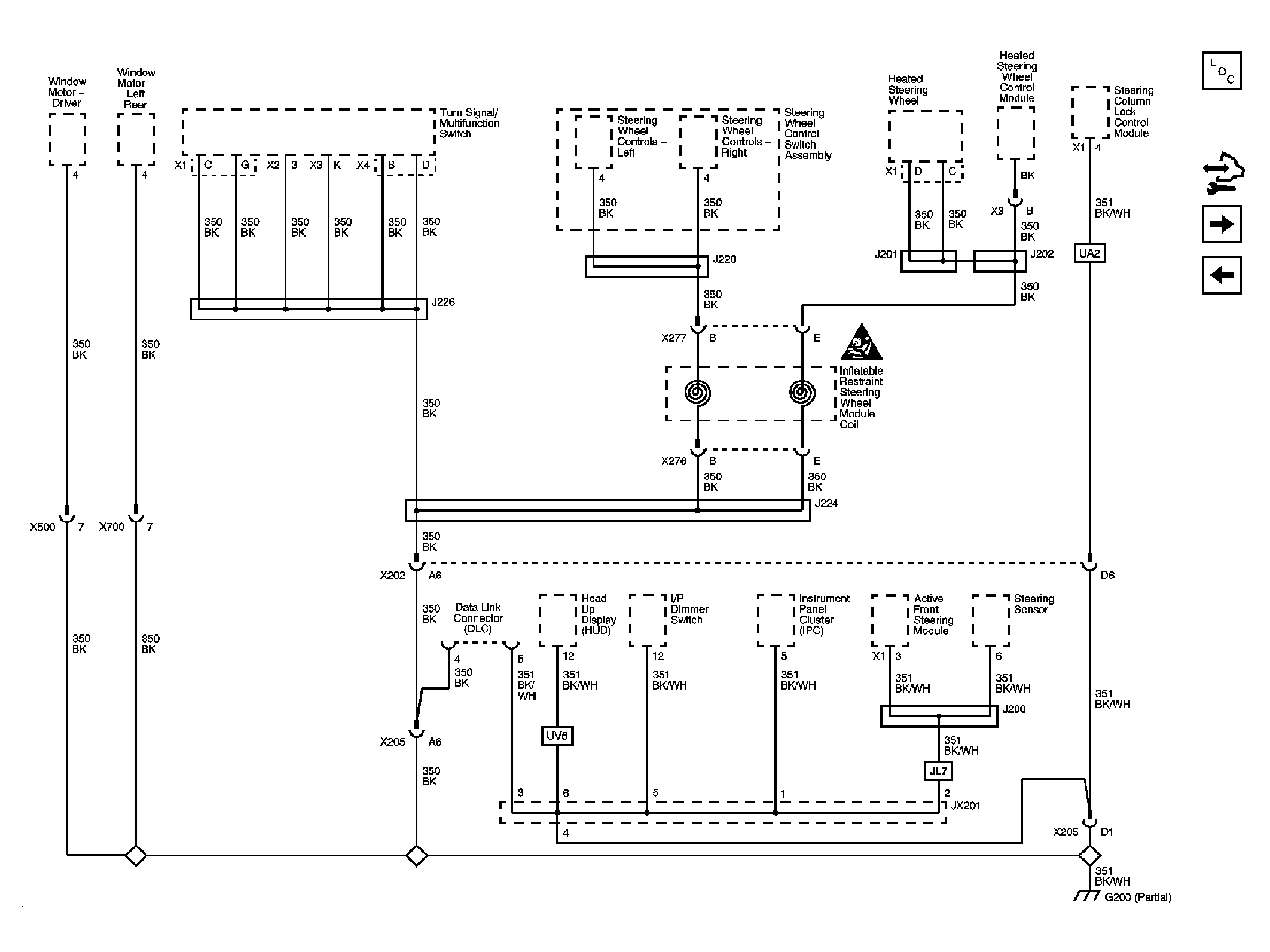

Fig 8: G200 Schematic (1 of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 9: G200 Schematic (2 of 2)

Courtesy of GENERAL MOTORS CORP.

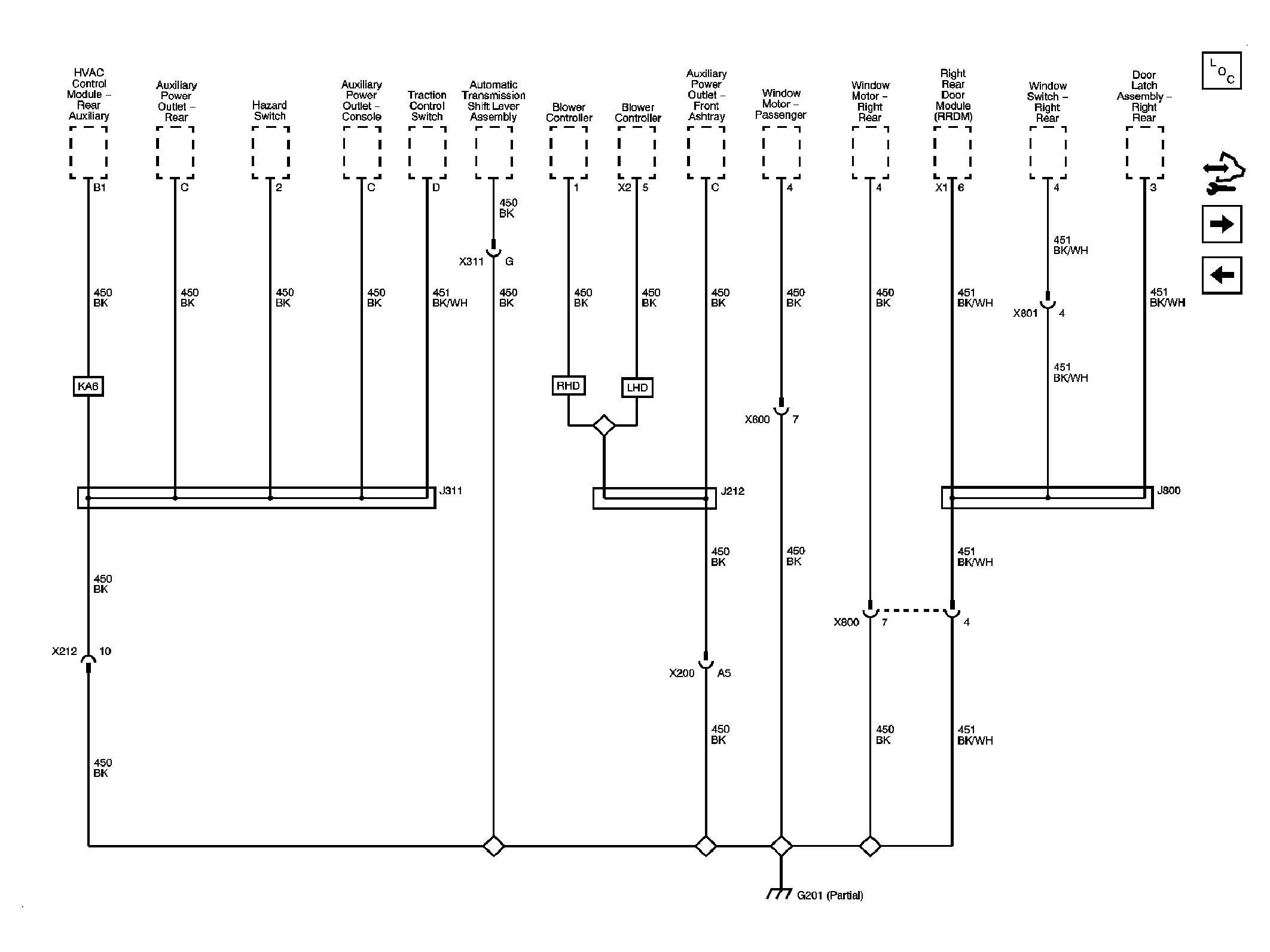

Fig 10: G201 Schematic (1 of 2)

Courtesy of GENERAL MOTORS CORP.

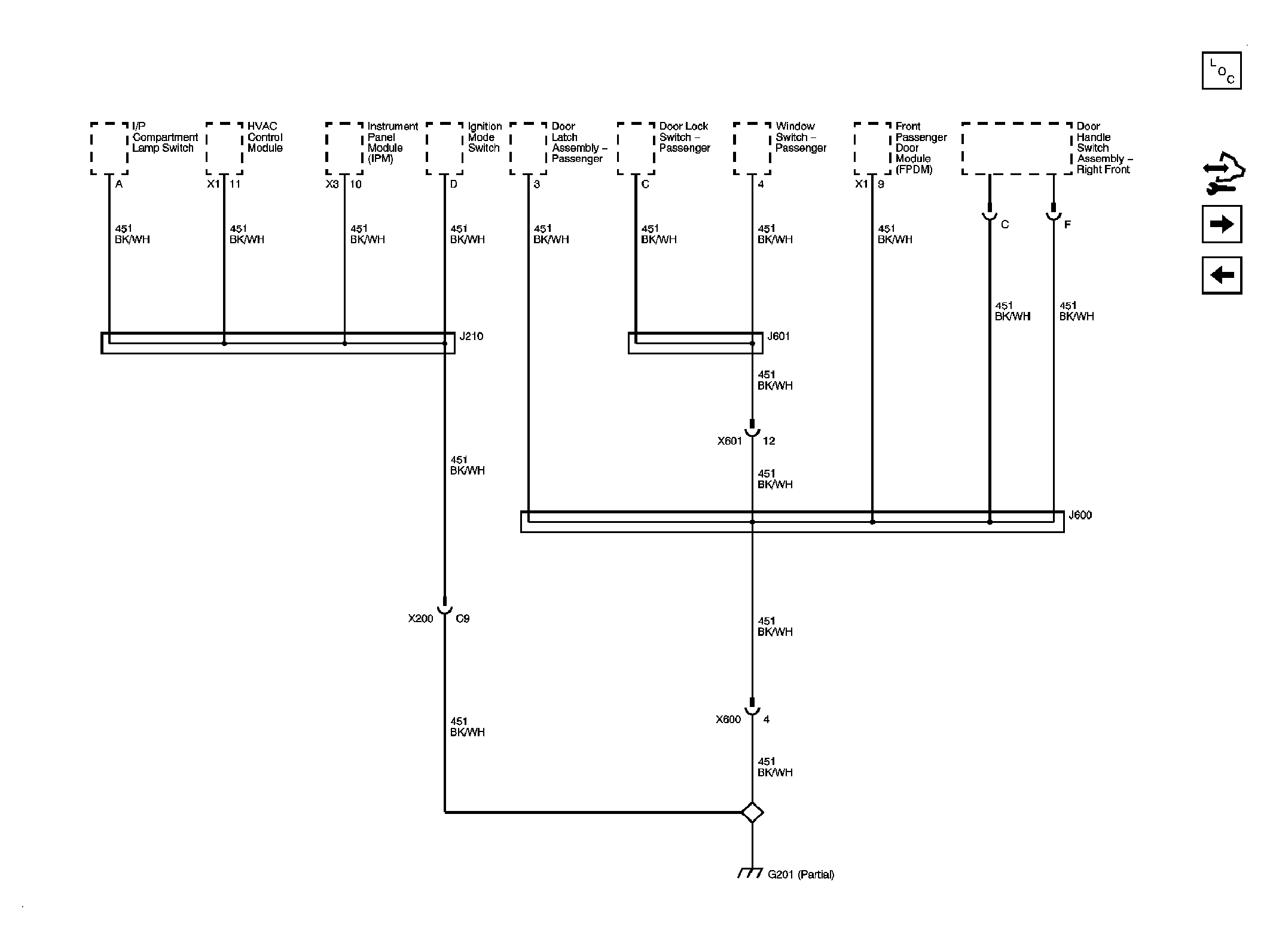

Fig 11: G201 Schematic (2 of 2)

Courtesy of GENERAL MOTORS CORP.

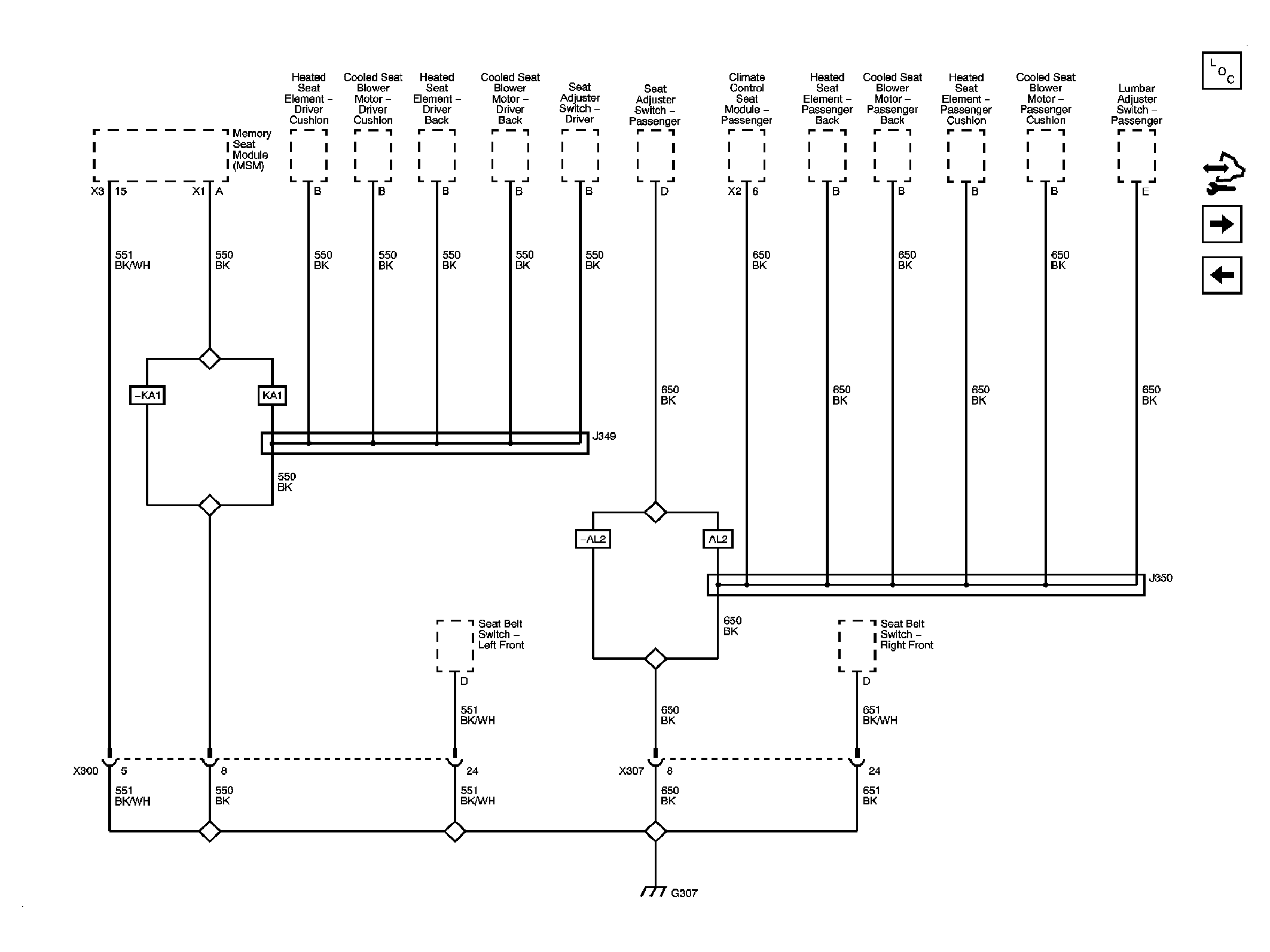

Fig 12: G307 Schematic

Courtesy of GENERAL MOTORS CORP.

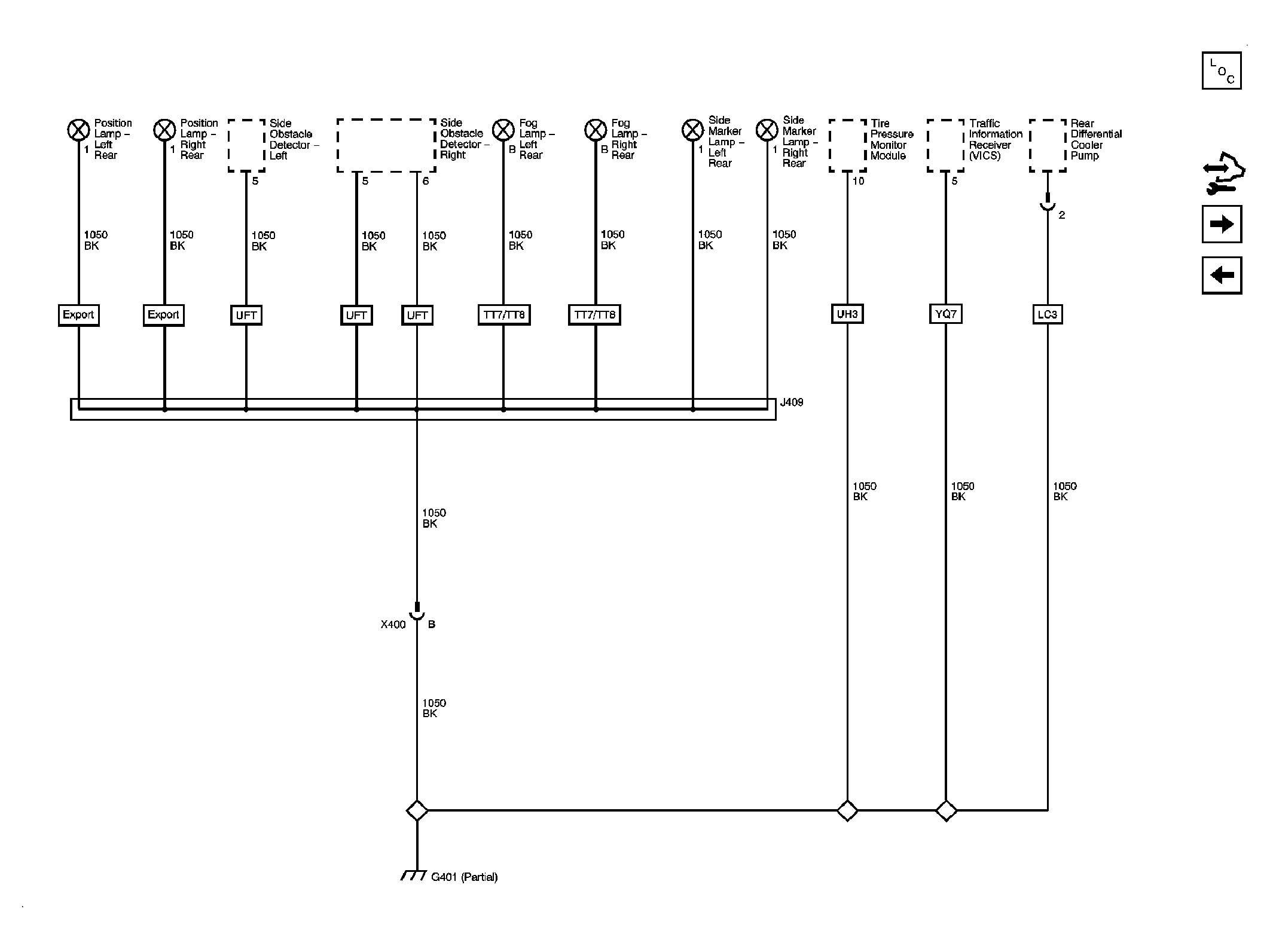

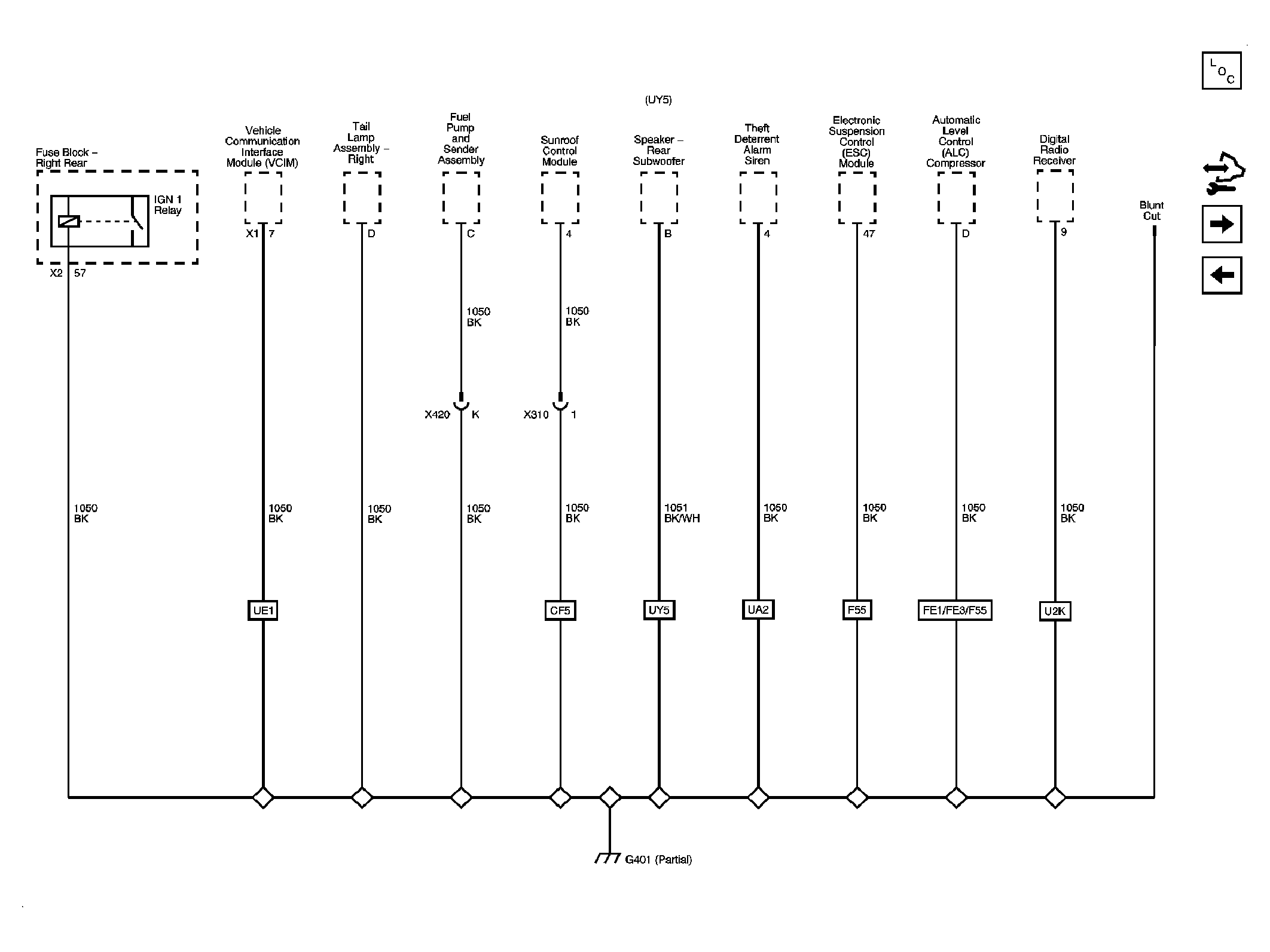

Fig 13: G401 Schematic (1 of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 14: G401 Schematic (2 of 2)

Courtesy of GENERAL MOTORS CORP.

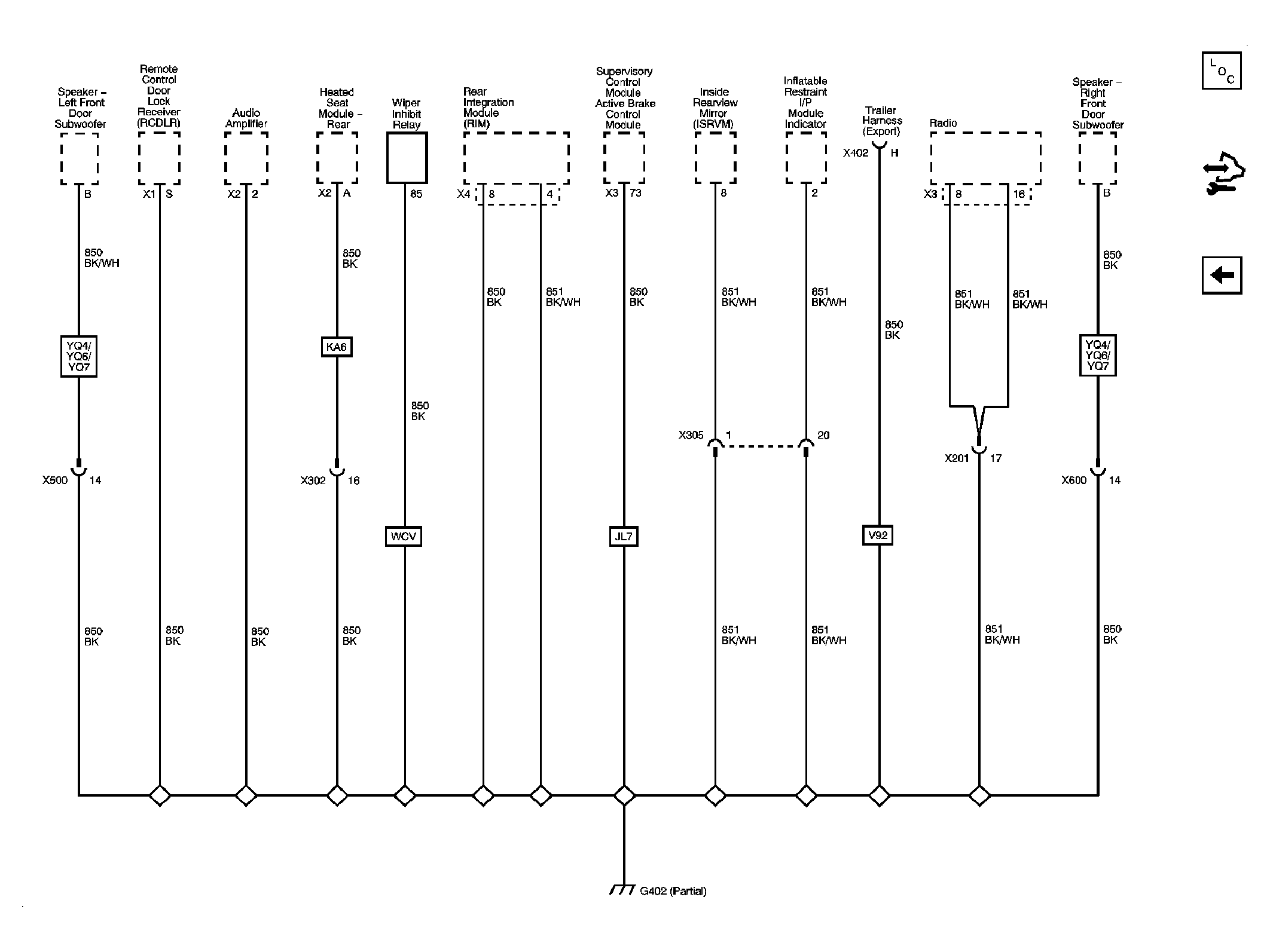

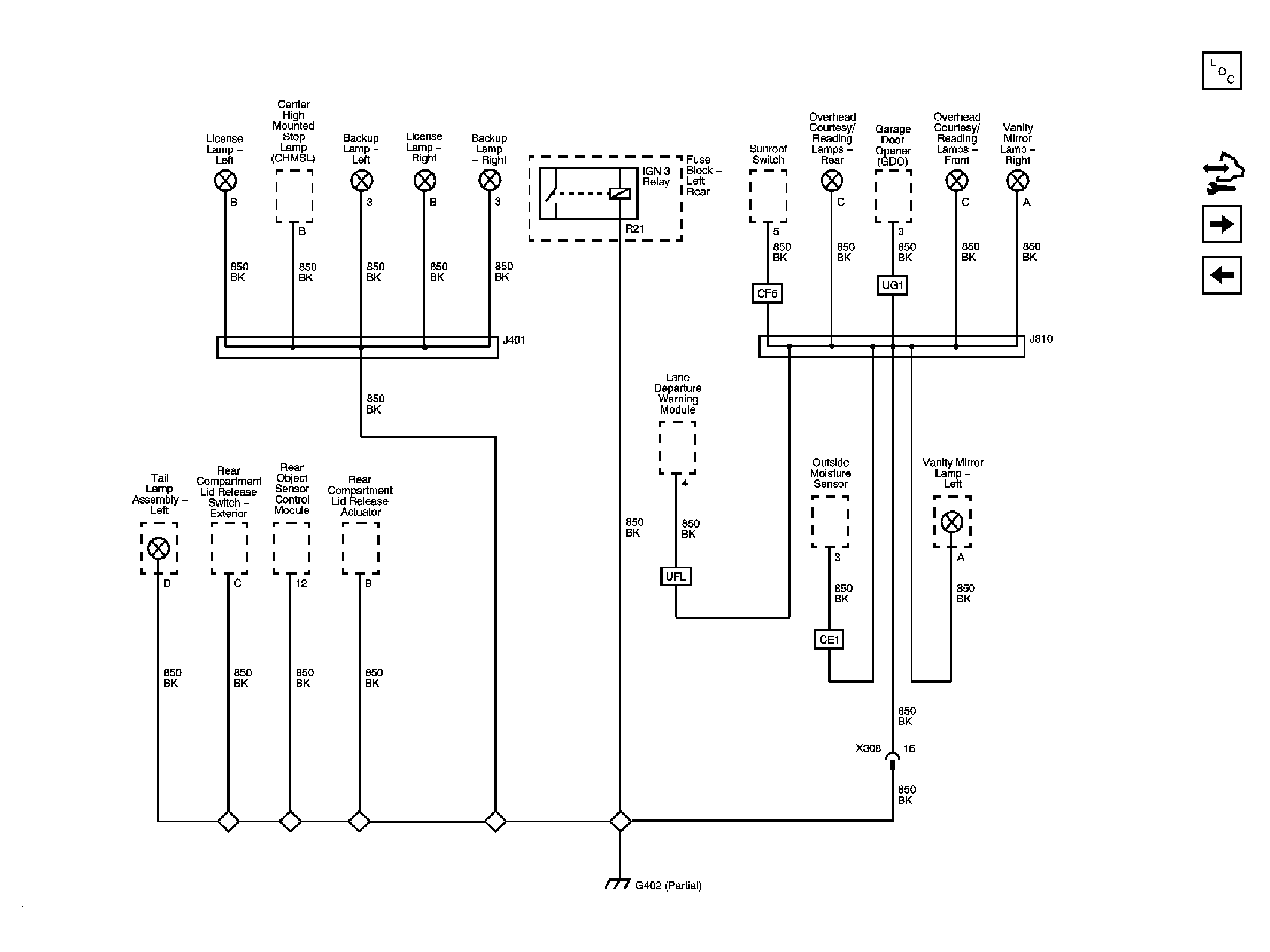

Fig 15: G402 Schematic (1 of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 16: G402 Schematic (2 of 2)

Courtesy of GENERAL MOTORS CORP.
