Installation Procedure

WARNING: This page is about a different car, the 2008 Isuzu i-370, 2008 Isuzu i-290, 2008 GMC Canyon, and 2008 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

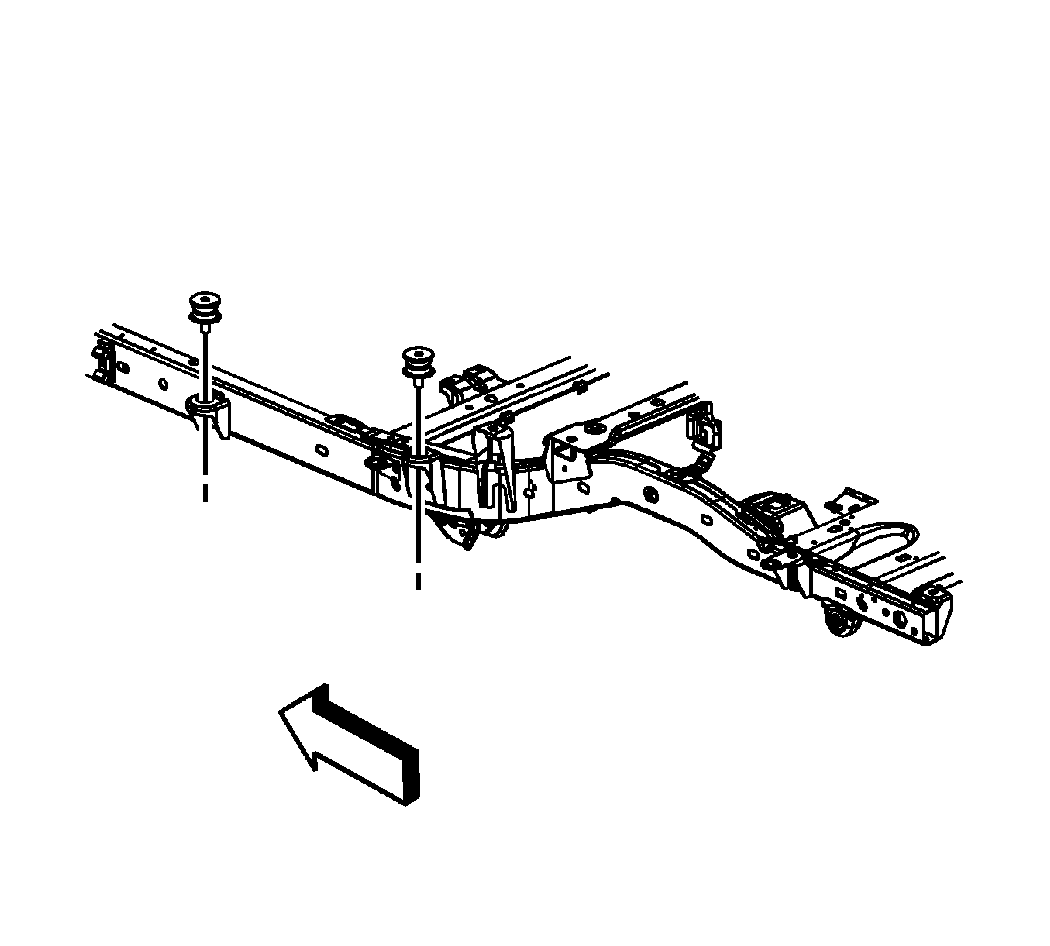

    Fig 1: View Of Upper Cushions #3 & #4
    GM1351733Courtesy of GENERAL MOTORS CORP.
  1. Install the upper cushions to the number 3 and the number 4 body mount, long wheel base vehicles.

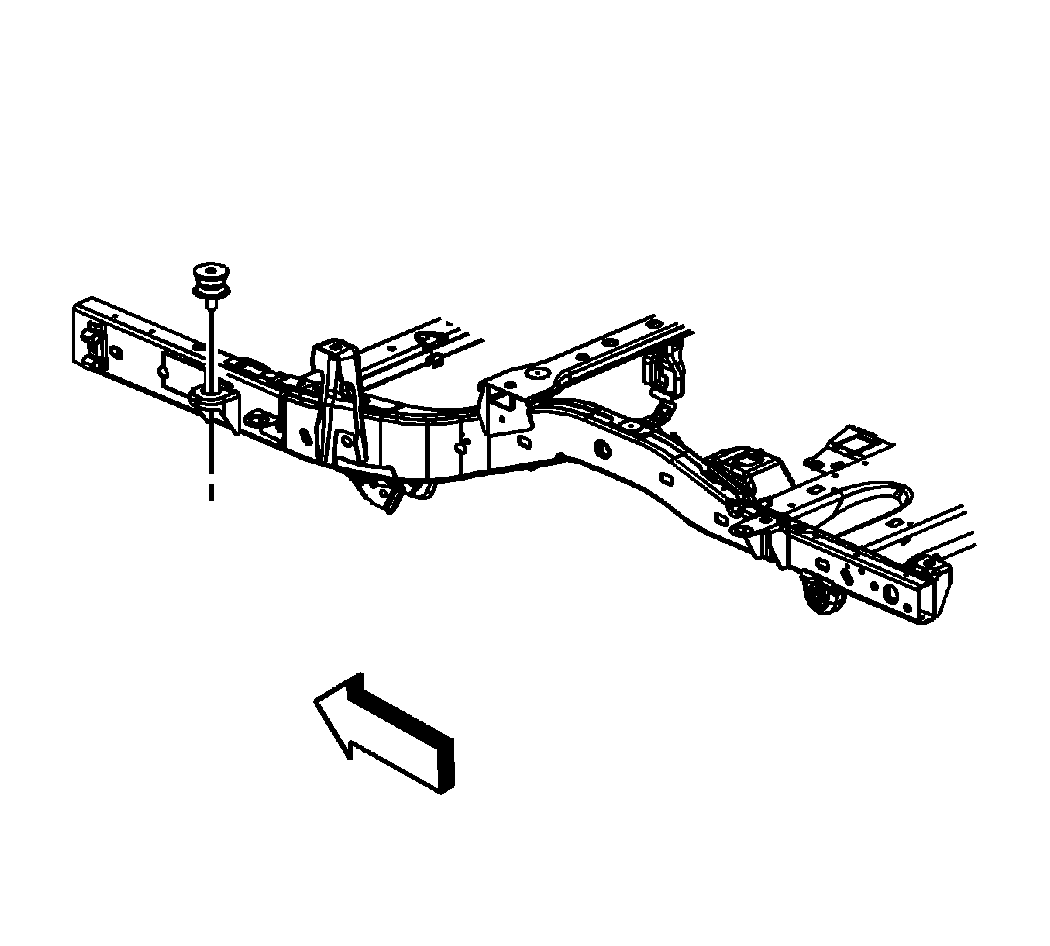

    2. Fig 2: View Of Upper Cushion #3
    GM1351731Courtesy of GENERAL MOTORS CORP.
  2. Install the upper cushion to the number 3 body mount, short wheel base vehicles.

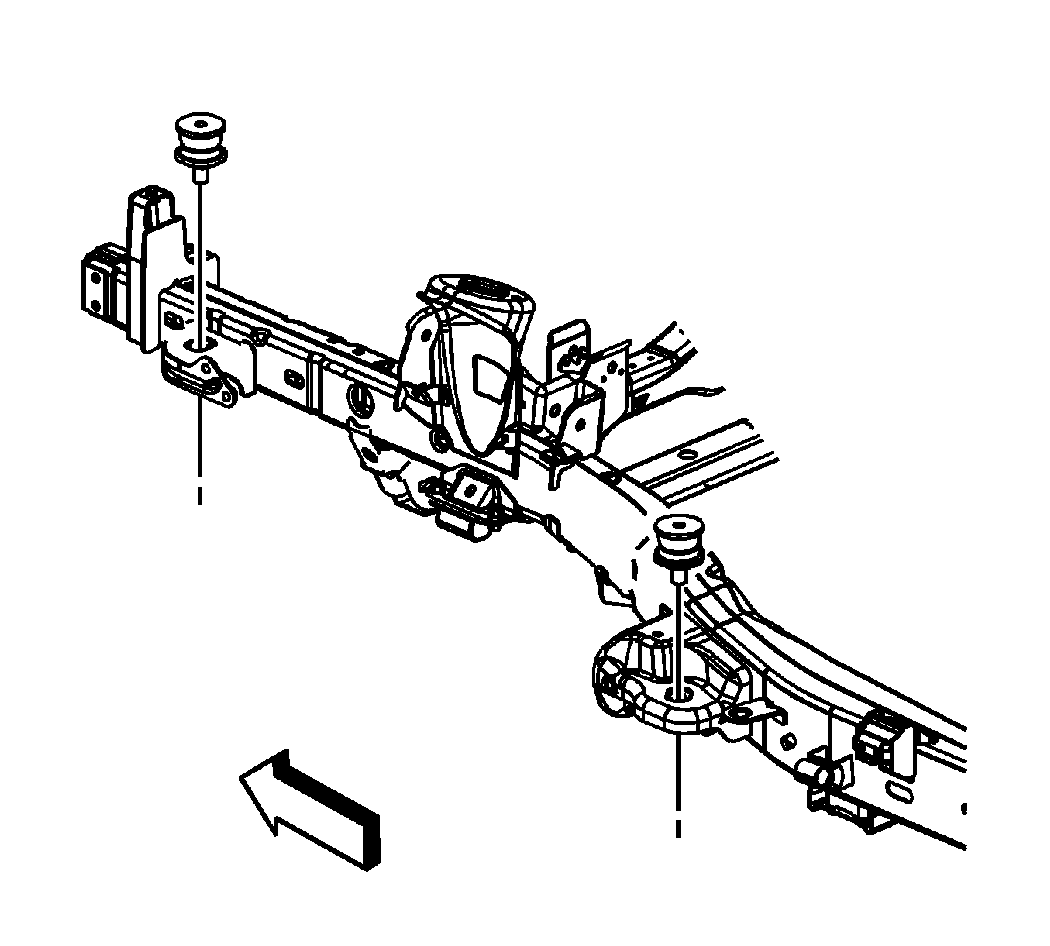

    3. Fig 3: View Of Upper Cushions #1 & #2
    GM1351728Courtesy of GENERAL MOTORS CORP.
  3. Install the upper cushions to the number 1 and the number 2 body mount.
  4. Raise the hoist to allow the body mount bolts to be installed.
  5. Connect or install any wiring harness or component that was removed to allow for the lowering of the frame.

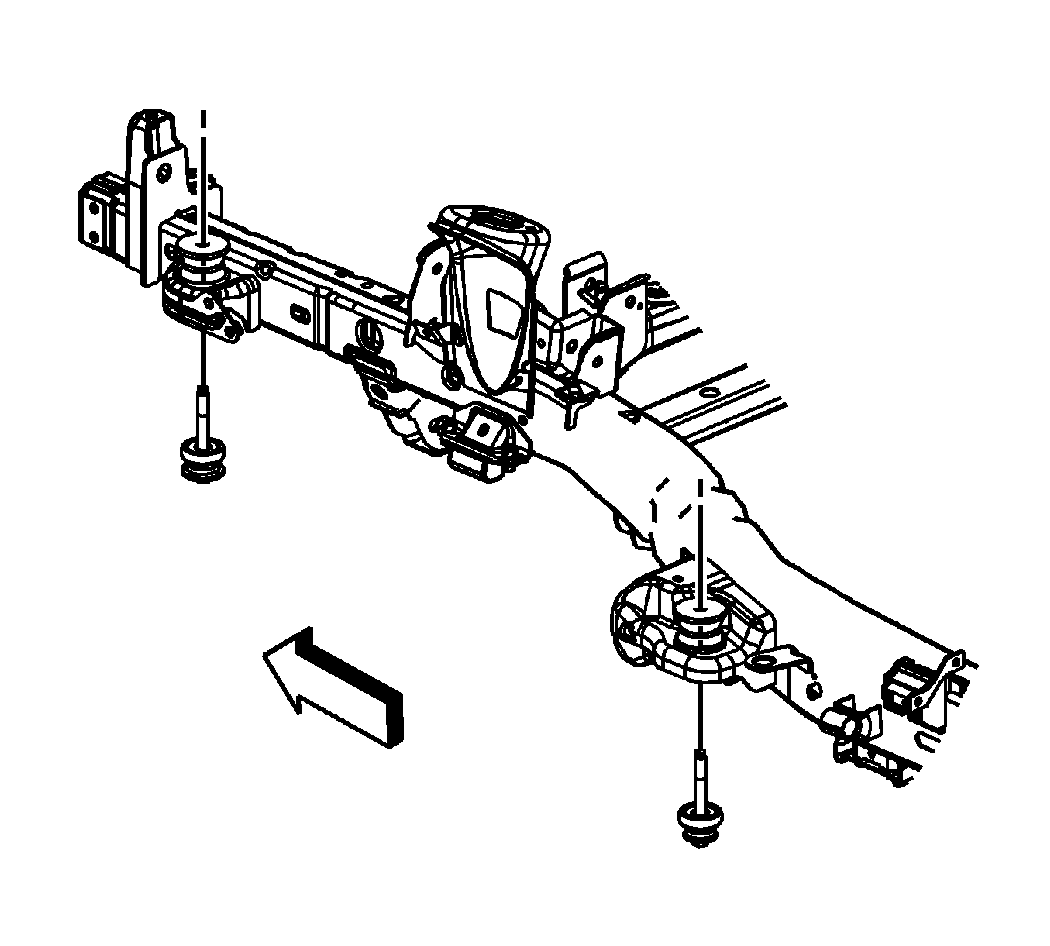

    6. Fig 4: View Of Bolt/Cushion Assemblies #1 & #2
    GM1351720Courtesy of GENERAL MOTORS CORP.
  6. Install the bolt/cushion assembly to the number 1 and the number 2 body mount.

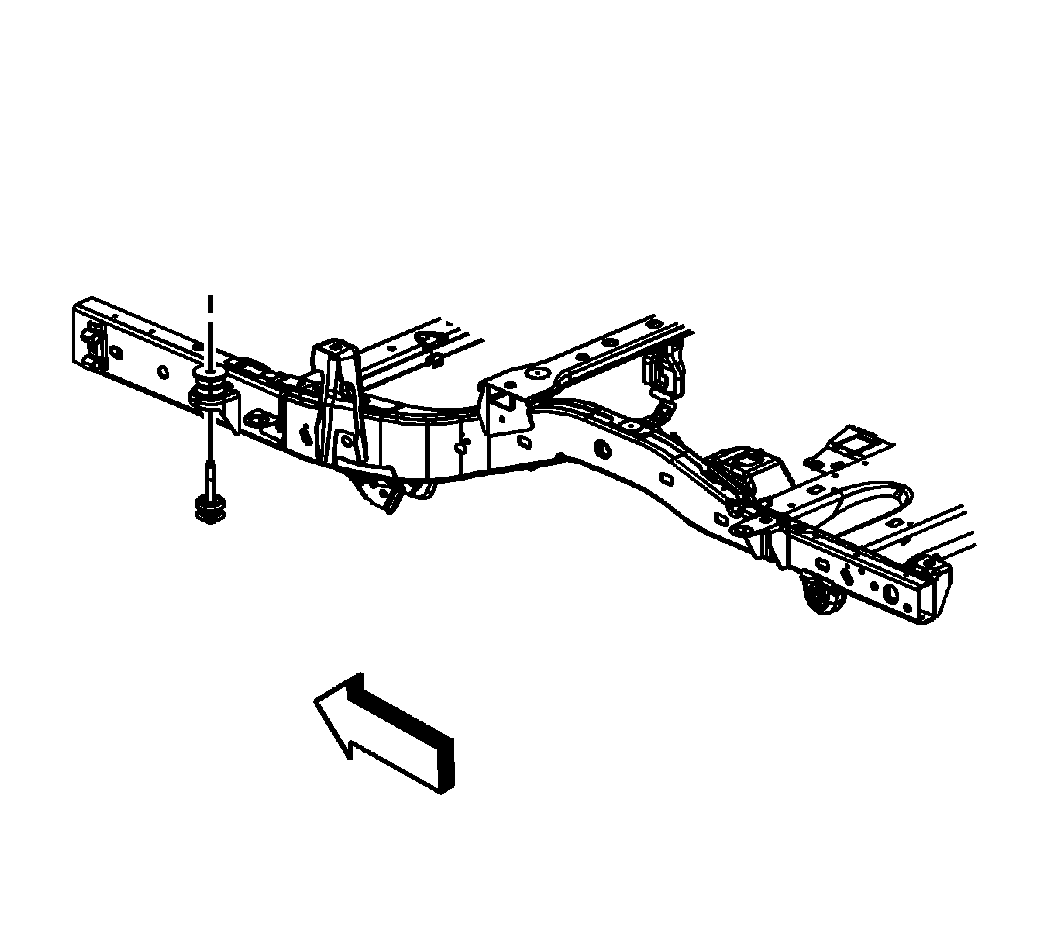

    7. Fig 5: View Of Bolt/Cushion Assembly #3
    GM1351723Courtesy of GENERAL MOTORS CORP.
  7. Install the bolt/cushion assembly to the number 3 body mount, short wheel base vehicles.
    8. NOTE: Refer to Fastener Notice .
  8. Install the bolt/cushion assembly to the number 3 and the number 4 body mount, long wheel base vehicles.

    Tighten:  Tighten the bolts to 115 N.m (85 lb ft).

  9. Remove the jack stands.
  10. Lower the vehicle.
