Front Hoist Pads: Notes
WARNING: This page is about a different car, the 2008 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
The front hoist pads must not contact the rocker panels, the front fenders, the floor pan, or the stone guard moldings. Do no lift the vehicle by the metal flange located behind the triangle or the rocker molding.

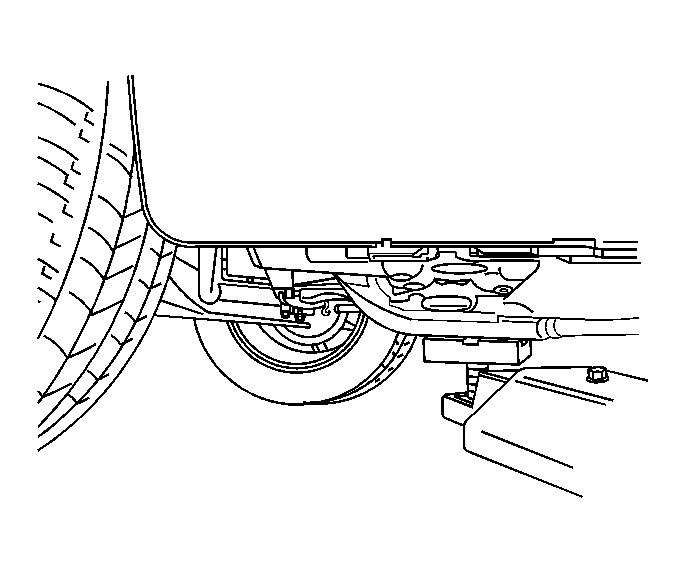

Position the frame contact front hoist pads as follows:
- Under the front frame rail.
- The long sides of the pads, if applicable parallel to the frame rails.
