Windshield Outside Moisture Sensor Replacement

WARNING: This page is about a different car, the 2008 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

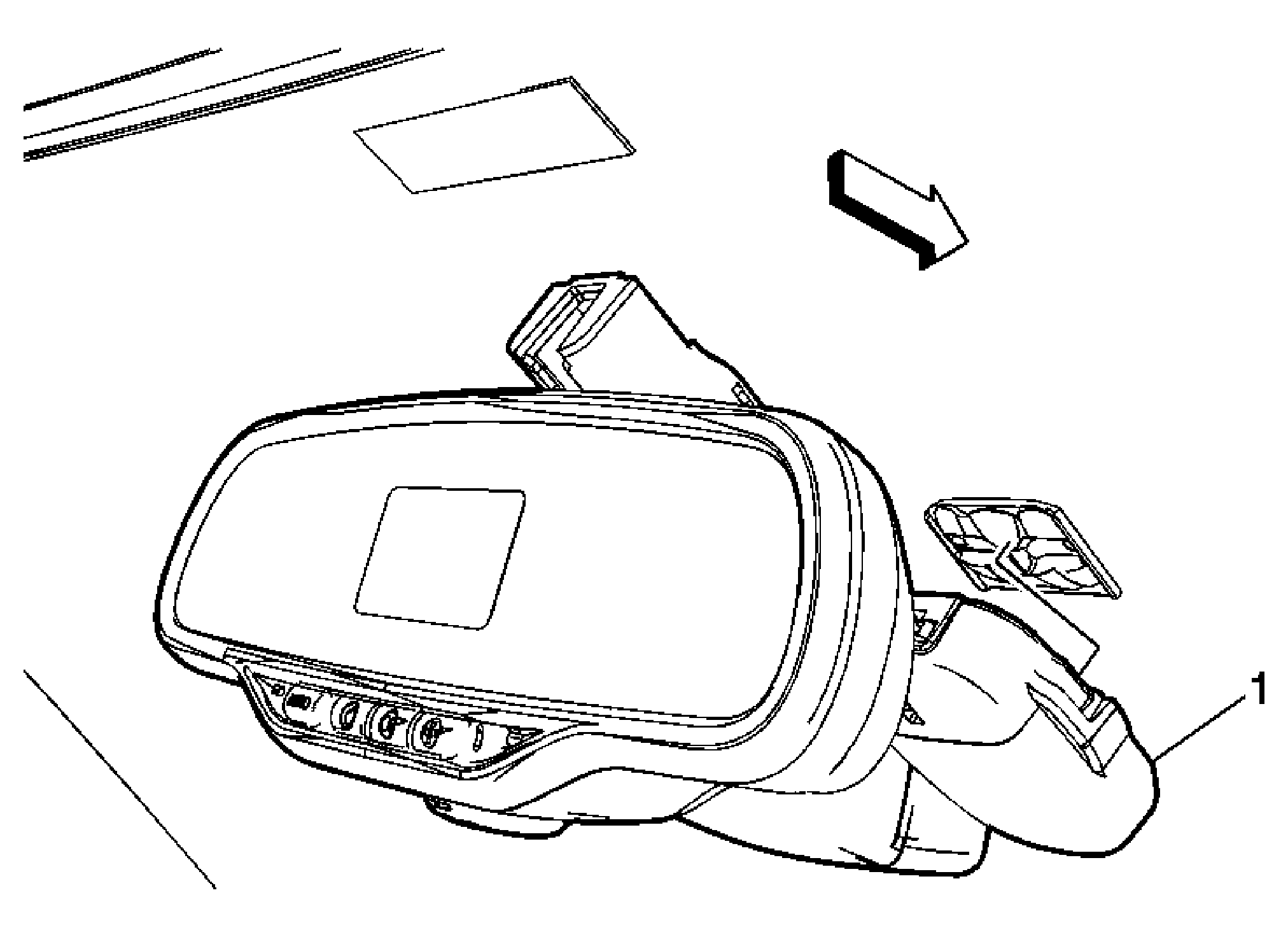

Fig 1: View Of Outside Moisture Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the vehicle direction alert alarm warning module. Refer to Vehicle Direction Alert Alarm Warning Module Replacement . Slide upward the mirror harness cover. Disconnect the electrical connector at the top of the windshield outside moisture sensor.
2	Windshield Outside Moisture Sensor Assembly Tip: Pinch the outer tabs and push the sensor upward in order to release from the windshield base.

Callout

Component Name

Preliminary Procedure

Remove the vehicle direction alert alarm warning module. Refer to Vehicle Direction Alert Alarm Warning Module Replacement .
Slide upward the mirror harness cover.
Disconnect the electrical connector at the top of the windshield outside moisture sensor.

Windshield Outside Moisture Sensor Assembly
Tip: Pinch the outer tabs and push the sensor upward in order to release from the windshield base.
