Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

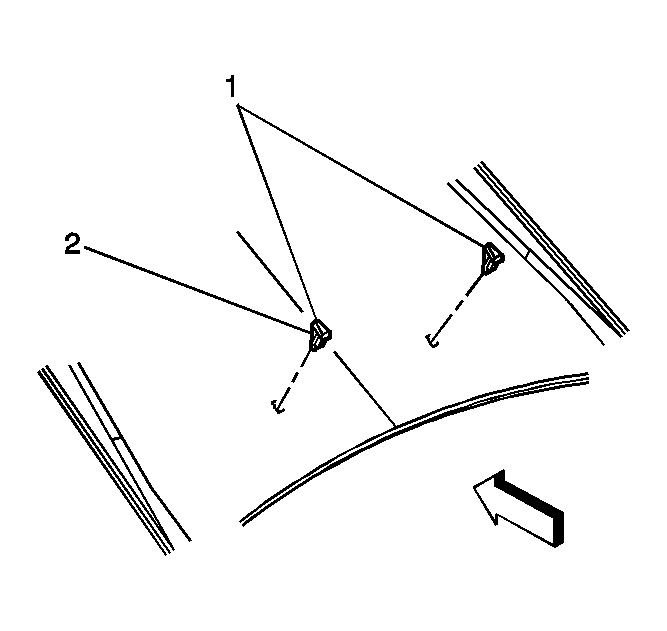

Fig 1: View Of Front Washer Nozzles

Courtesy of GENERAL MOTORS CORP.

Install the washer nozzle (1) to the hood by indexing the tension clips (2) on the nozzle to the opening in the hood.
Push downward in order to secure the washer nozzle tension clips (2) to the hood.

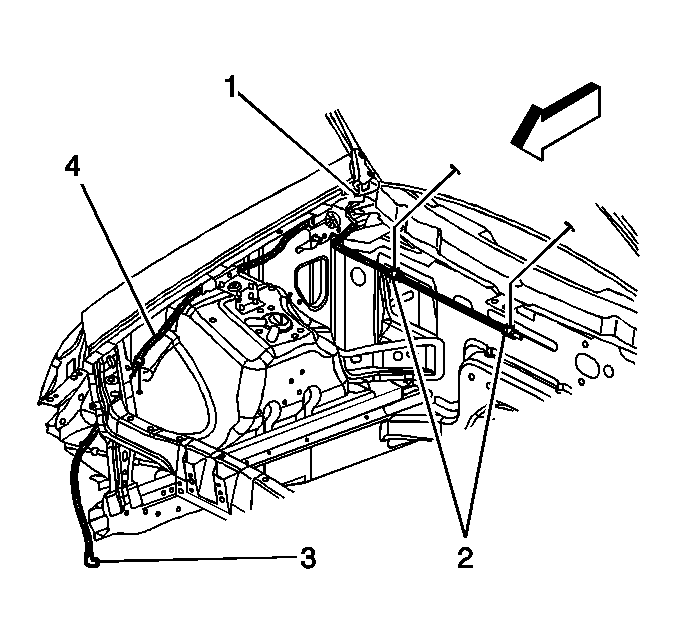

Fig 2: View Of Washer Hose

Courtesy of GENERAL MOTORS CORP.

Connect the washer hose connections (2) to the washer nozzles.
Install the hood insulator.
Close the hood.
