Headlamp Washer Pump Replacement

WARNING: This page is about a different car, the 2008 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

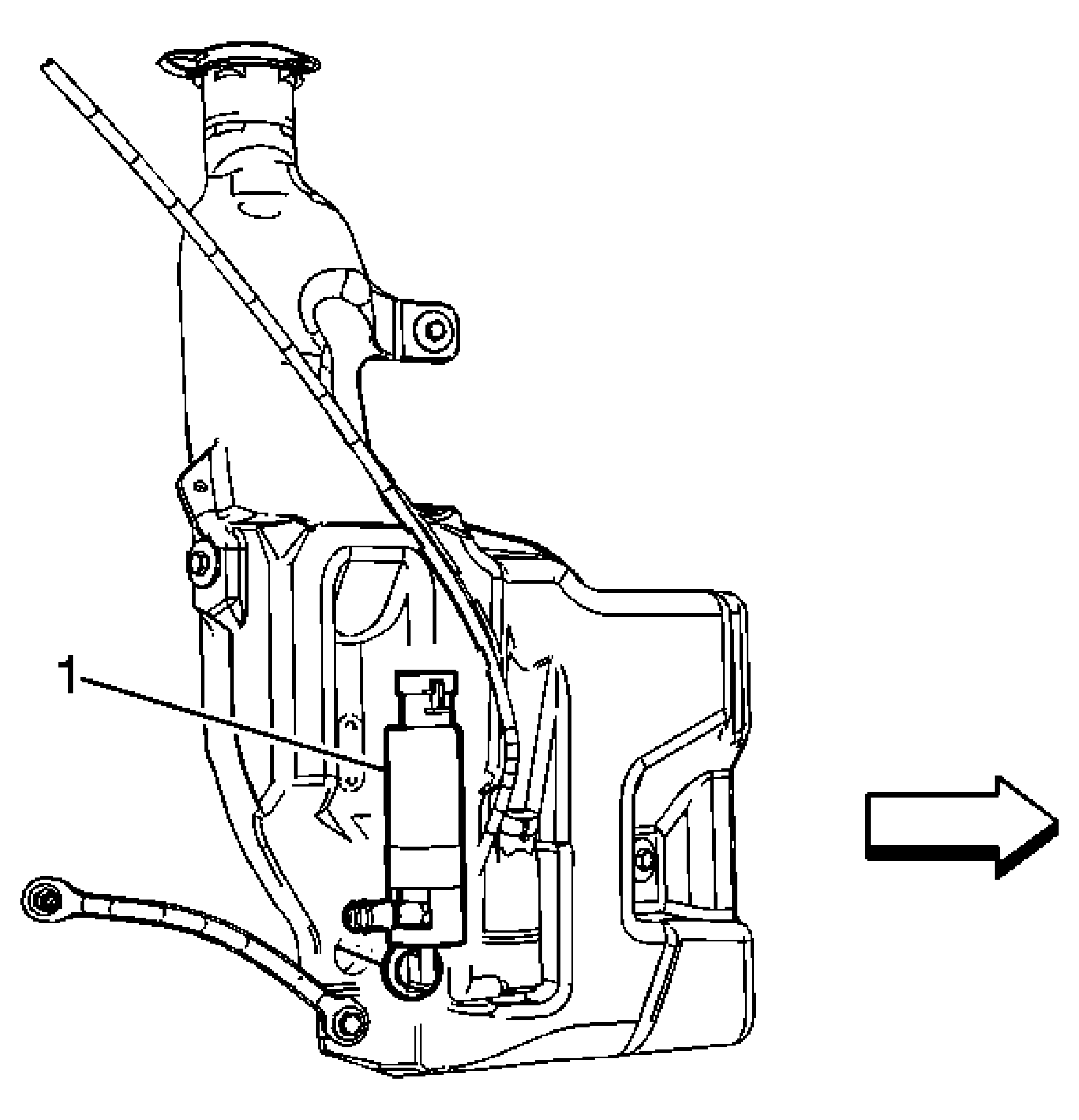

Fig 1: View Of Headlamp Washer Pump

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the right front fascia extension. Refer to Front Bumper Fascia Extension Replacement (DW) or Front Bumper Fascia Extension Replacement (DX) . Drain the washer solvent into a suitable clean container. Disconnect the headlamp washer pump hose from the headlamp washer pump. Disconnect the headlamp washer pump electrical connector from the washer pump. Disengage the washer pump from the container, pull the top of the pump slightly outward. Using two flat-bladed tools in front of the headlamp washer pump spout, pry outward in order to remove the pump.
1	Headlamp Washer Pump Tip: Discard the old washer pump grommet from the washer container.

Callout

Component Name

Preliminary Procedure

Remove the right front fascia extension. Refer to Front Bumper Fascia Extension Replacement (DW) or Front Bumper Fascia Extension Replacement (DX) .
Drain the washer solvent into a suitable clean container.
Disconnect the headlamp washer pump hose from the headlamp washer pump.
Disconnect the headlamp washer pump electrical connector from the washer pump.
Disengage the washer pump from the container, pull the top of the pump slightly outward.
Using two flat-bladed tools in front of the headlamp washer pump spout, pry outward in order to remove the pump.

Headlamp Washer Pump
Tip: Discard the old washer pump grommet from the washer container.
