Headlamp Washer Nozzle Assembly Replacement

WARNING: This page is about a different car, the 2008 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

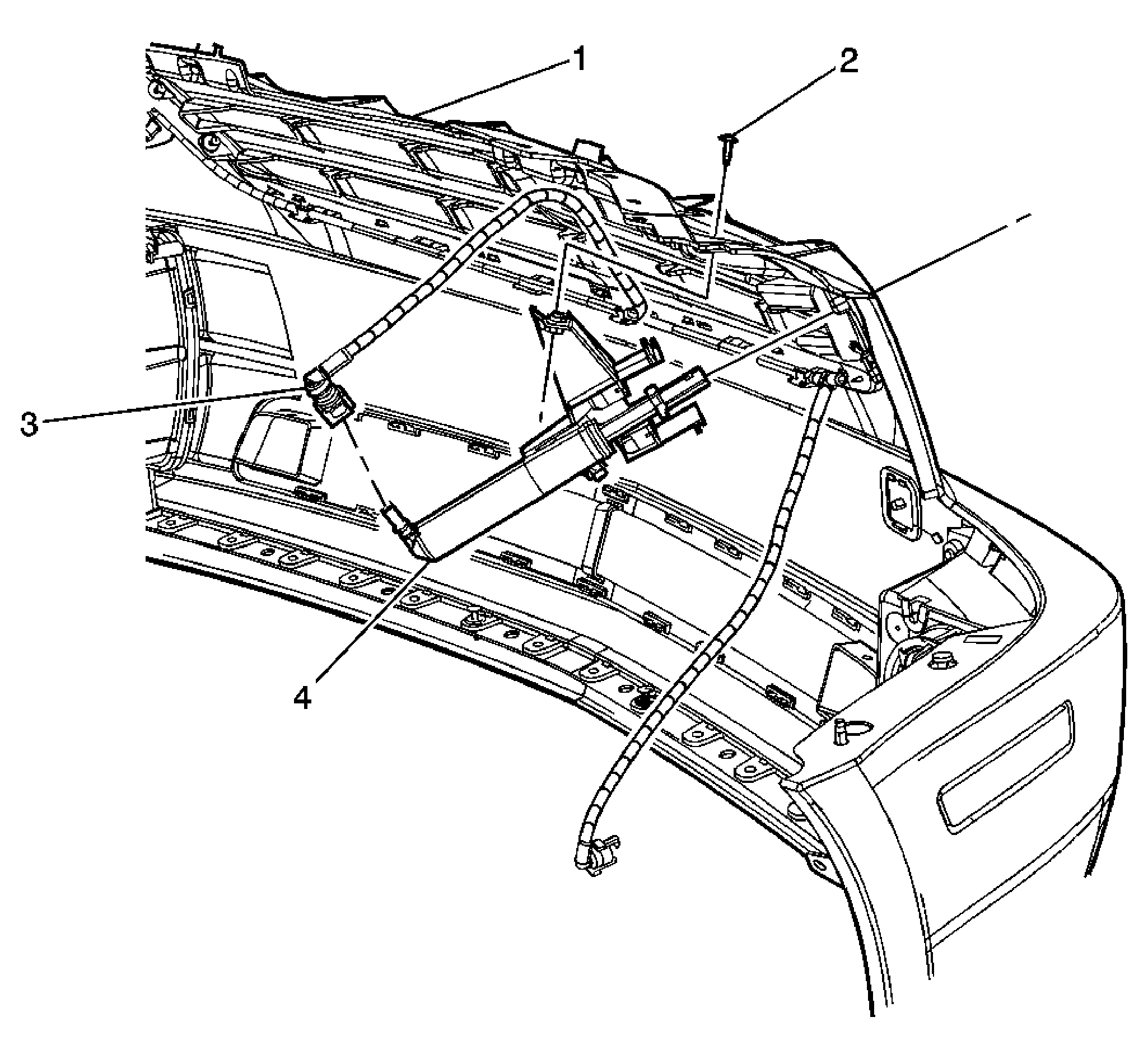

Fig 1: View Of Headlamp Washer Nozzle Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement
1	Front Bumper Fascia
2	Screw, Headlamp Washer Nozzle NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
3	Headlamp Washer Hose Assembly
4	Headlamp Washer Nozzle Tip: Squeeze the locking tabs on the headlamp washer nozzle assembly together to remove and replace from the fascia. Pull the nozzle shaft out and lock in place with the washer nozzle locking tabs. Use a small flat-bladed tool to release the trim cover from the nozzle.
