Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

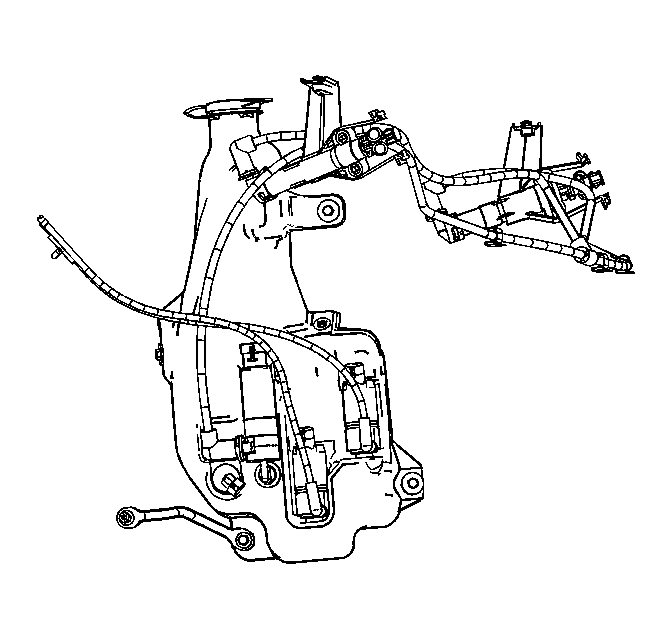

    Fig 1: View Of Washer Hose Assembly
    GM1233321Courtesy of GENERAL MOTORS CORP.
  1. Position the washer hose assembly to the vehicle.
  2. Secure the washer hose clips to the electrical main body harness.
  3. Secure the headlamp washer hose quick connects to both headlamp washer nozzles.

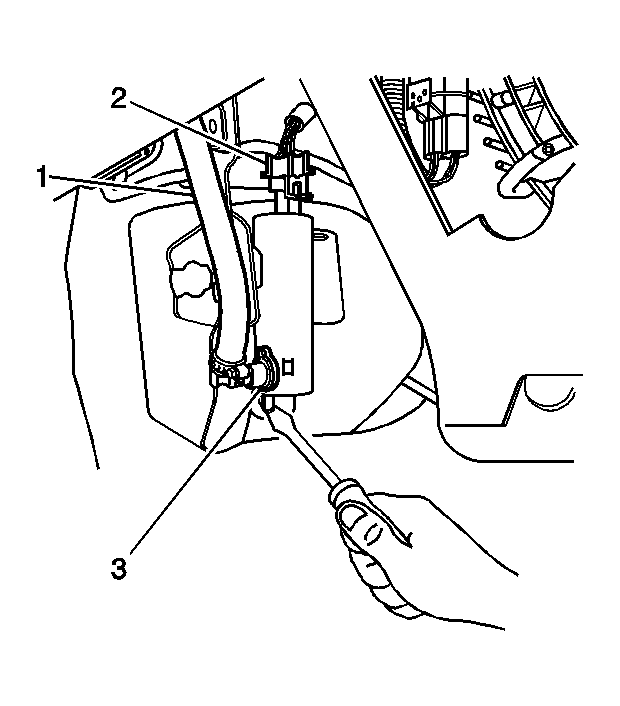

    4. Fig 2: View Of Headlamp Washer Hose Quick Connect
    GM786882Courtesy of GENERAL MOTORS CORP.
  4. Secure the washer hose quick connect to the headlamp washer pump nozzle (1).
  5. Install the left front headlamp.
  6. Install the radiator support sight shield.
  7. Install the front air deflector. Refer to Front Air Deflector Replacement .
  8. Fill the reservoir with washer solvent.
  9. Verify the operation of the headlamp washers.
