Rear Side Marker Lamp Bulb Replacement

WARNING: This page is about a different car, the 2008 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

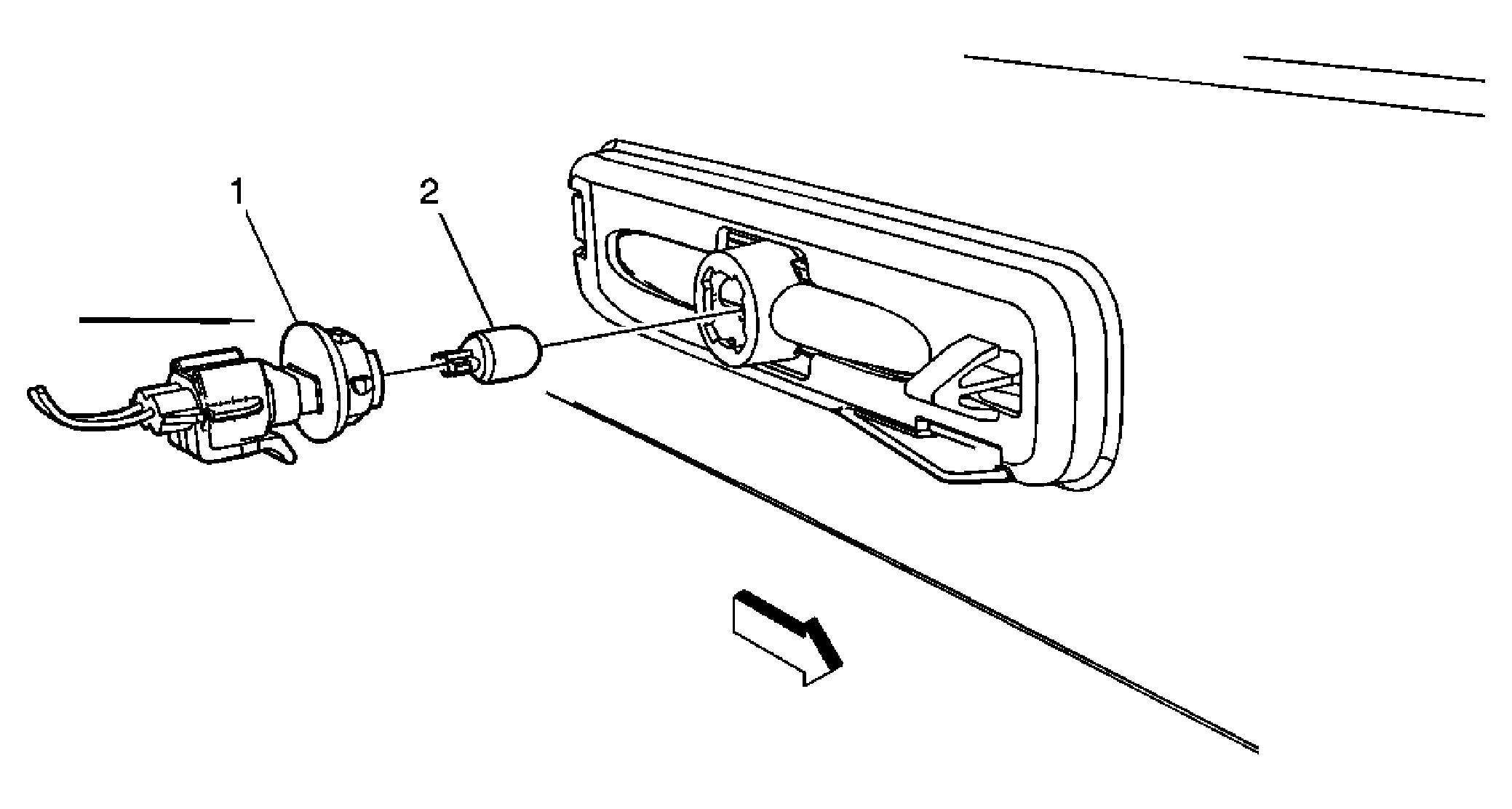

Fig 1: View Of Rear Side Marker Lamp & Socket
GM1829340Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove either the LR or RR inner wheelhouse liner. Refer to Rear Wheelhouse Liner Panel Replacement .
1 Rear Side Marker Lamp Socket
Tip:  Rotate the lamp socket a quarter turn counter-clockwise in order to remove.
2 Rear Side Marker Lamp Bulb
