Front Side Marker Lamp Replacement

WARNING: This page is about a different car, the 2008 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

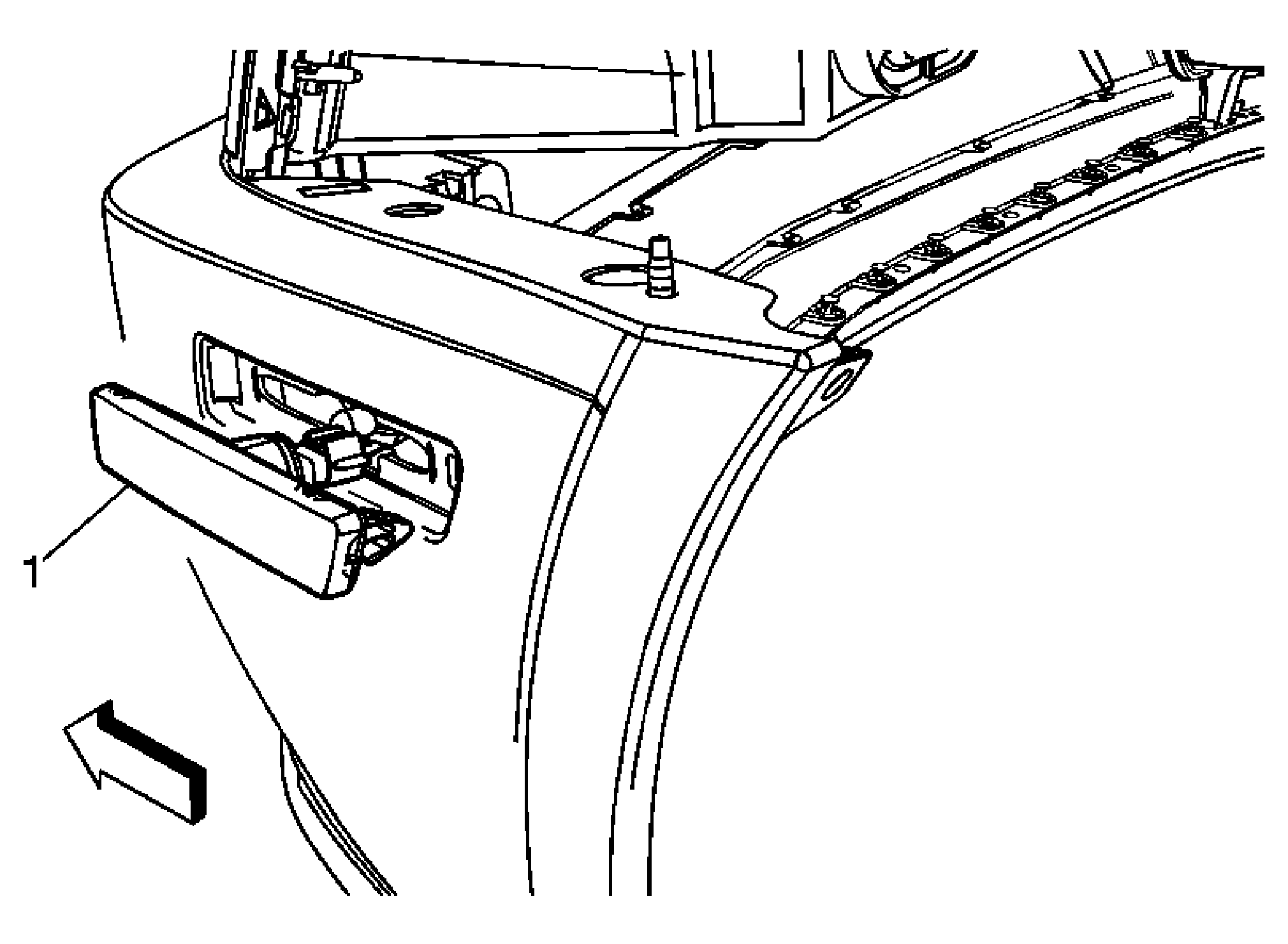

Fig 1: View Of Front Side Marker Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the inner wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
1	Front Side Marker Lamp Procedure Squeeze the attachment clip with the fingers or suitable flat tipped pliers. Push the lamp assembly outward from the front bumper fascia in order to remove. Disconnect the lamp socket from the lamp housing.

Callout

Component Name

Preliminary Procedure:
Remove the inner wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .

Front Side Marker Lamp

Procedure

Squeeze the attachment clip with the fingers or suitable flat tipped pliers.
Push the lamp assembly outward from the front bumper fascia in order to remove.
Disconnect the lamp socket from the lamp housing.
