Front Fog Lamp Bulb Replacement
WARNING: This page is about a different car, the 2008 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

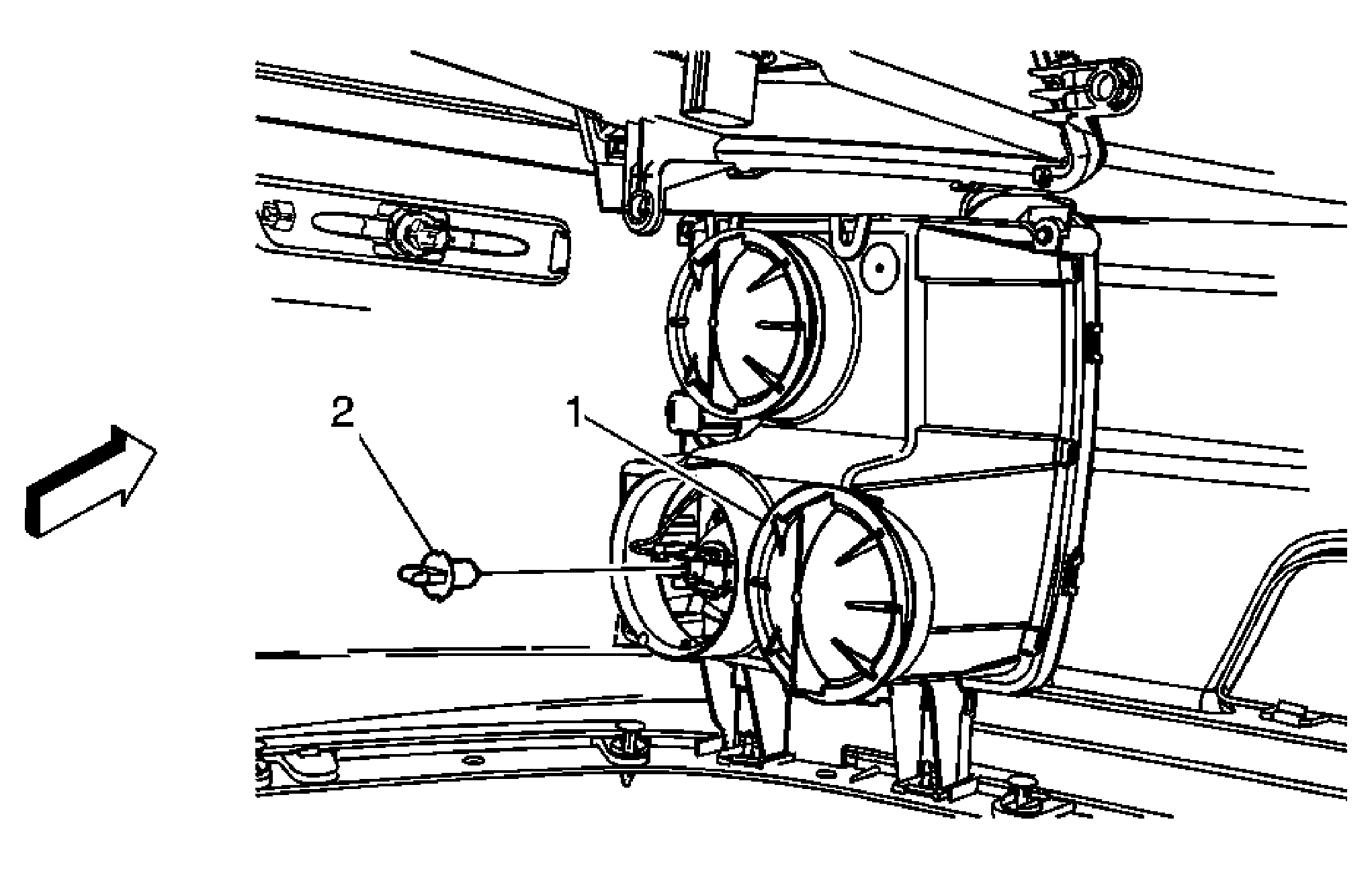

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove either the LF or RF wheelhouse liner. Refer to Front Wheelhouse Liner Replacement . |
|
| 1 | Accessory Cover |
| 2 | Fog Lamp Bulb
CAUTION:
Refer to Halogen Bulb Caution
.
|
