Door Control Module Schematics

WARNING: This page is about a different car, the 2008 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

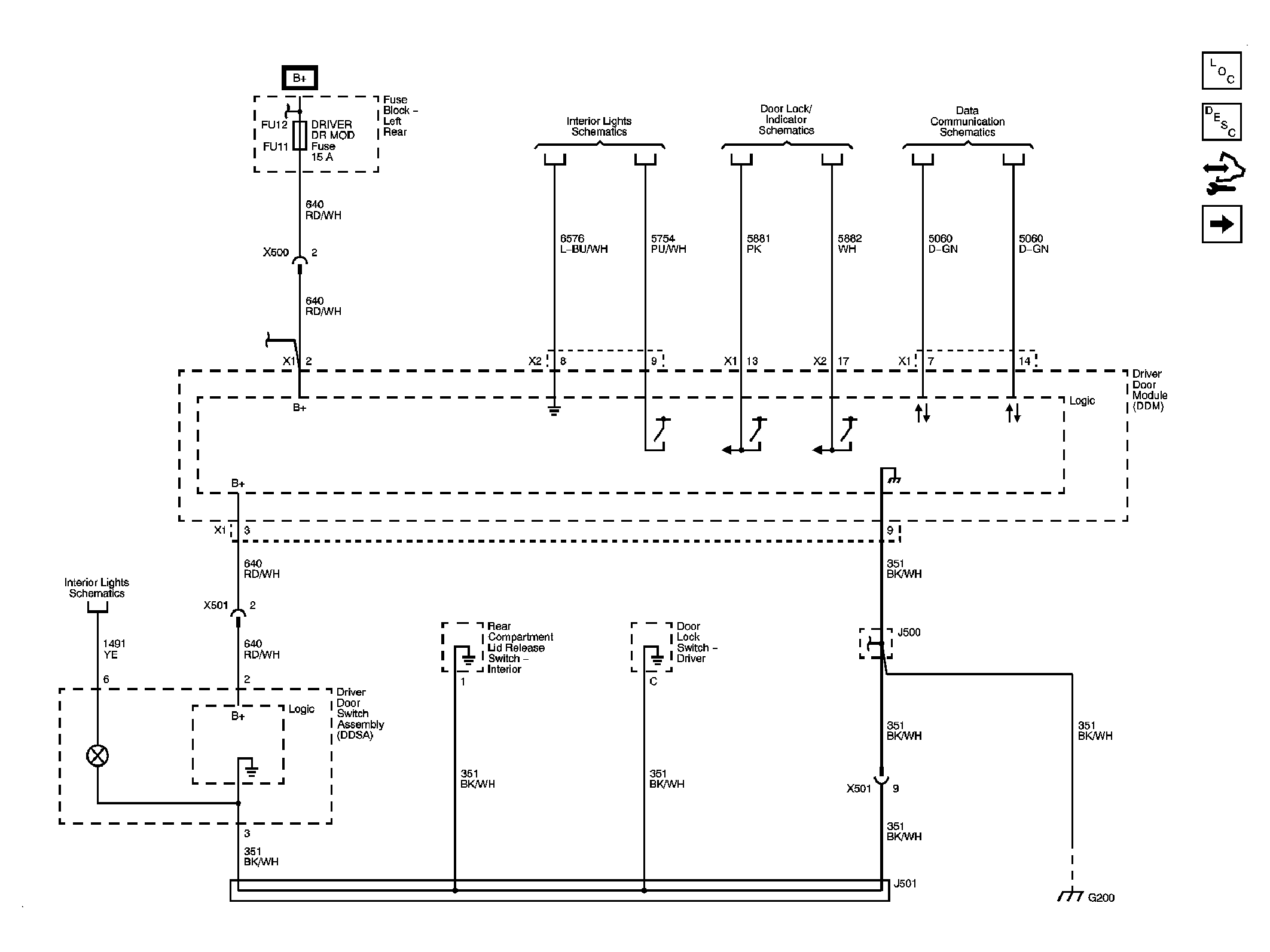

Fig 1: DDM Power, Ground and DLC Schematic

Courtesy of GENERAL MOTORS CORP.

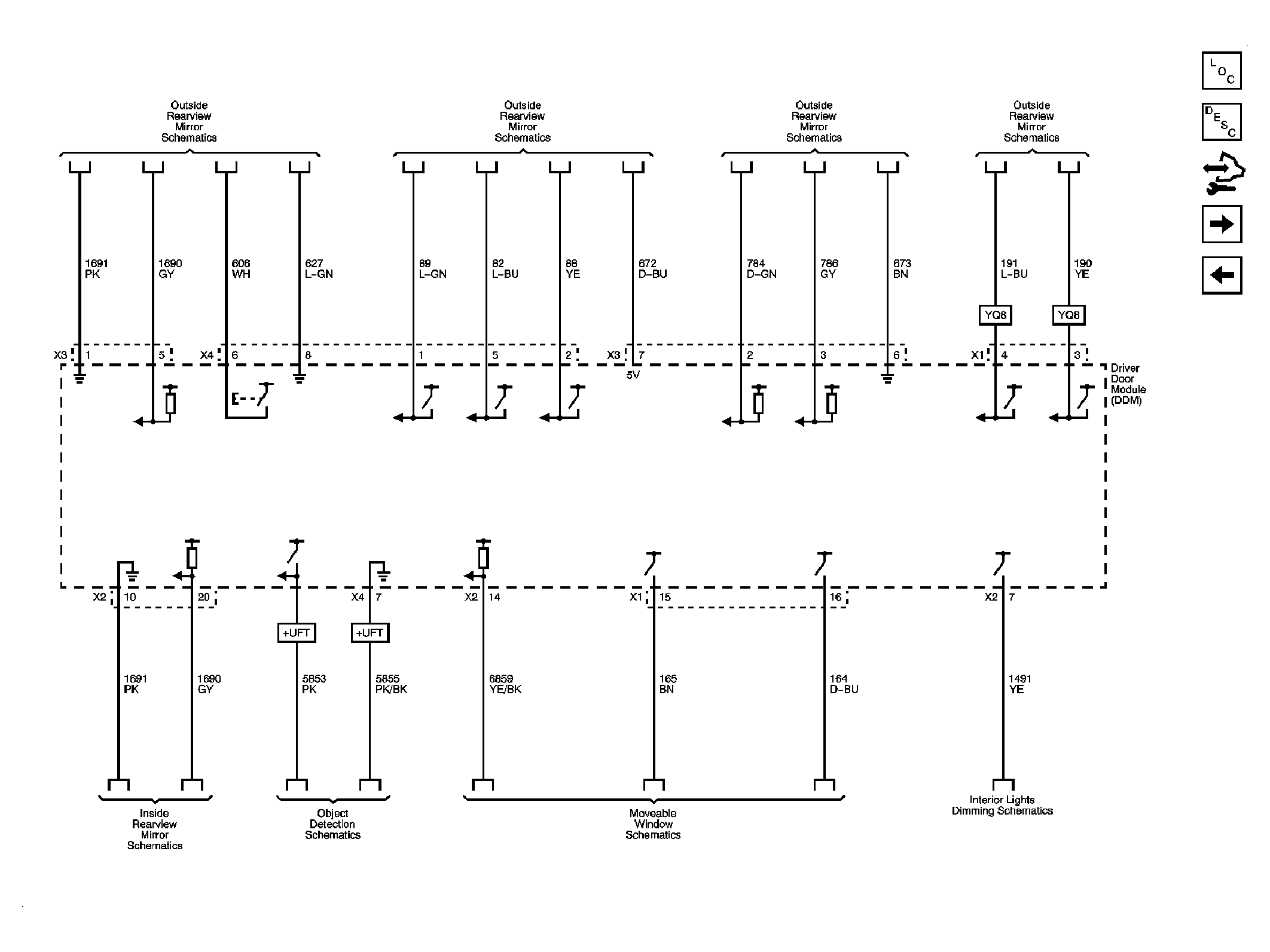

Fig 2: DDM Signals/Controls 1 of 2 Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: DDM Signals/Controls 2 of 2 Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 4: FPDM Power, Ground and DLC Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 5: FPDM Signals/Controls 1 of 2 Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 6: FPDM Signals/Controls 2 of 2 Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 7: LRDM Power, Ground and DLC Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 8: LRDM Signals/Controls Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 9: RRDM Power, Ground and DLC Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 10: RRDM Signals/Controls Schematic

Courtesy of GENERAL MOTORS CORP.
