Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

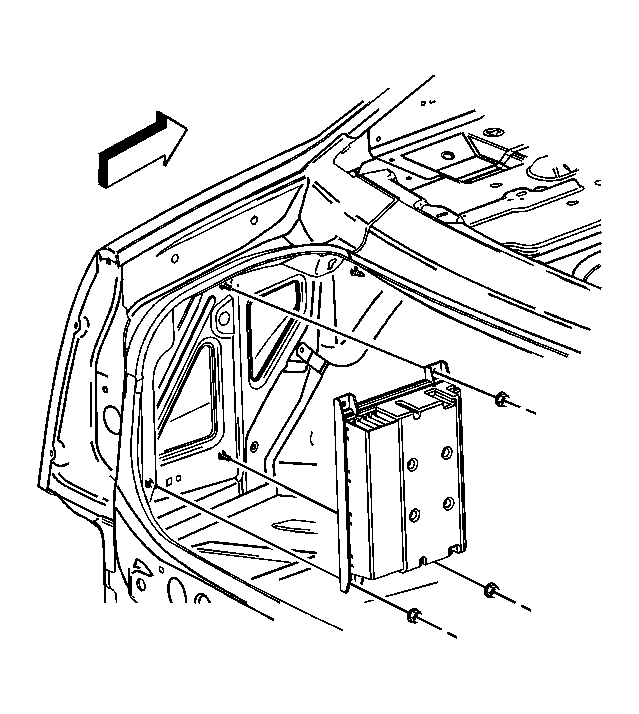

    Fig 1: View Of Amplifier
    GM1463649Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connectors.
    2. NOTE: Refer to Fastener Notice .
  2. Install the bolts securing the amplifier to the vehicle.

    Tighten:  Tighten the bolts (1) to 9 N.m (80 lb in).

  3. Install the rear compartment trim. Refer to Rear Compartment Trim Panel Replacement .
  4. Refer to Control Module References for programming and setup information.
