Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Rout and secure the new cable next to the existing cable.

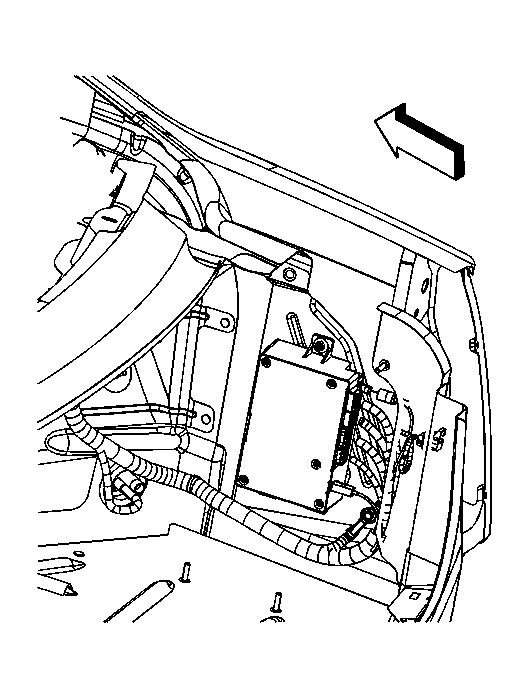

Fig 1: View Of Right Rear Compartment

Courtesy of GENERAL MOTORS CORP.

Install the coax cable.
Connect the electrical connectors.

Fig 2: View Of Coax Cable Under Side Sail Panel

Courtesy of GENERAL MOTORS CORP.

Install the right side sail panel. Refer to Sail Panel Replacement .
Install the headliner. Refer to Headlining Trim Panel Replacement .
