Front Seat Speaker Replacement

WARNING: This page is about a different car, the 2008 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

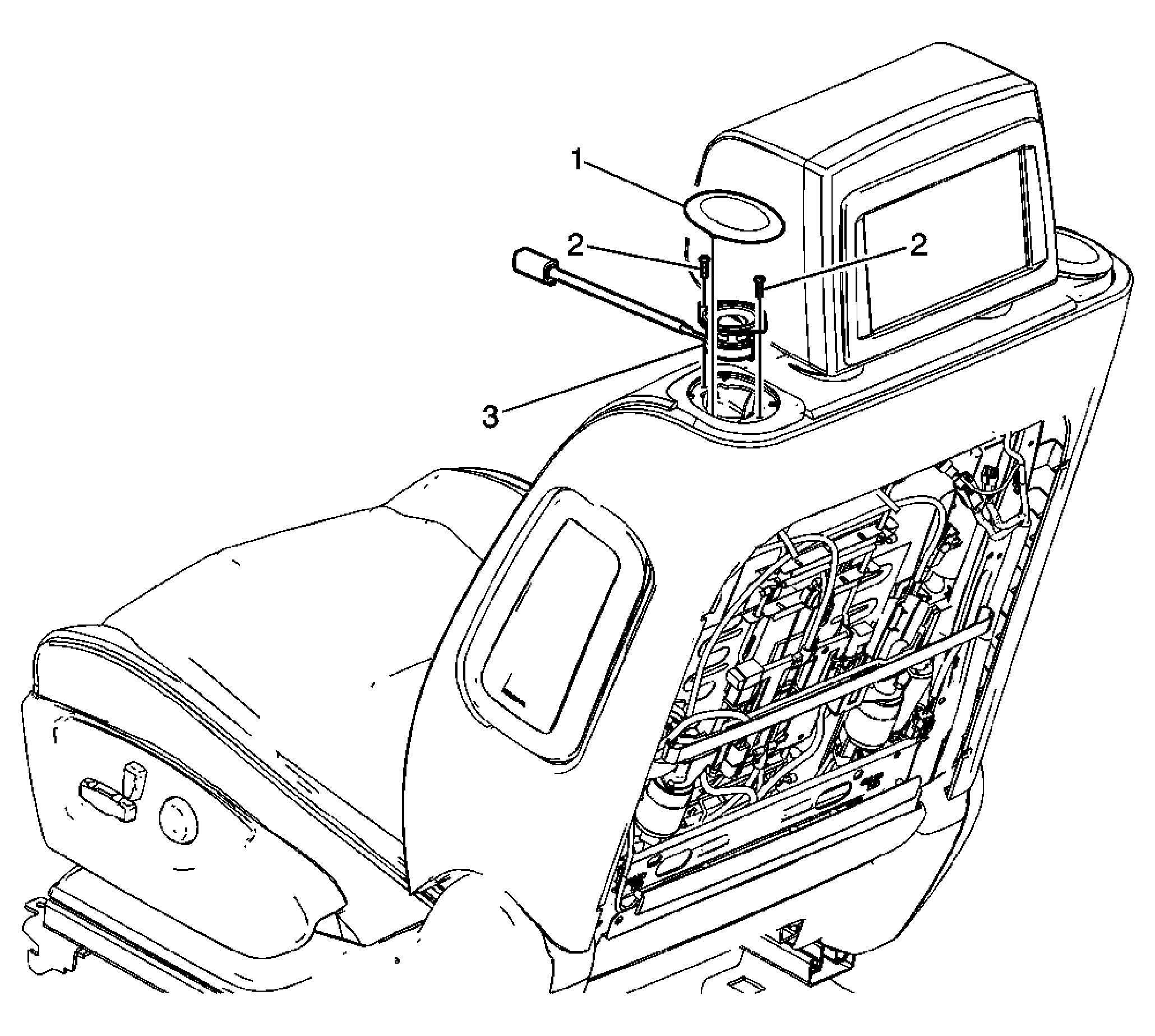

Fig 1: Front Seat Speaker

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the seat back panel. Refer to Front Seat Back Panel Replacement .
1	Front Seat Head Restraint Speaker Grille Procedure: Use a plastic flat bladed tool to remove the speaker grille.
2	Front Seat Head Restraint Speaker Screw (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
3	Front Seat Head Restraint Speaker Assembly Procedure Cut the speaker wire close to the speaker. Disconnect the electrical connector and pull out the cut speaker wire and discard. For installation route the speaker wire rearward from the speaker location between the frame and the seat cover. Pull the speaker wire down the back of the seat and connect the electrical connectors.
