Powertrain Component Views

WARNING: This page is about a different car, the 2008 Chevrolet Malibu Classic. However, it is still accessible from the selected car via links, so may be relevant.

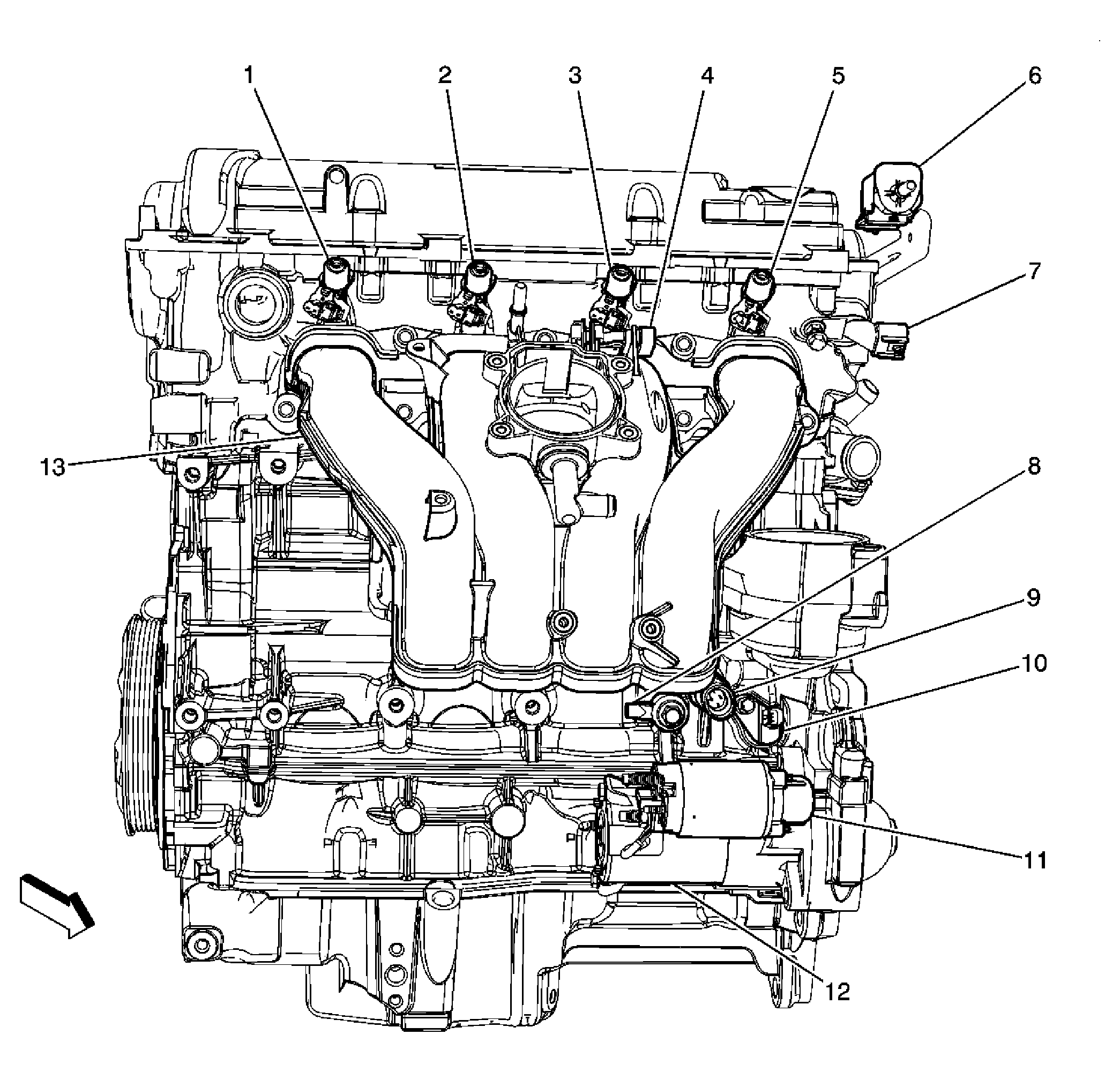

Fig 1: View Of Fuel Injectors, MAP Sensor, Knock Sensor, Starter And Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Injector 1
2	Fuel Injector 2
3	Fuel Injector 3
4	Manifold Absolute Pressure (MAP) Sensor
5	Fuel Injector 4
6	Evaporative Emission (EVAP) Canister Purge Solenoid
7	Camshaft Position (CMP) Sensor - Intake
8	Knock Sensor (KS)
9	Engine Oil Pressure (EOP) Switch
10	Crankshaft Position (CKP) Sensor
11	Starter Solenoid
12	Starter
13	Intake Manifold

Fig 2: View Of Fuel Injectors, Throttle Actuator Control (TAC) Module And Manifold Absolute Pressure (MAP) Sensor (L61)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Injector 1
2	Fuel Injector 2
3	Fuel Injector 3
4	Throttle Actuator Control (TAC) Module
5	Fuel Injector 4
6	Manifold Absolute Pressure (MAP) Sensor

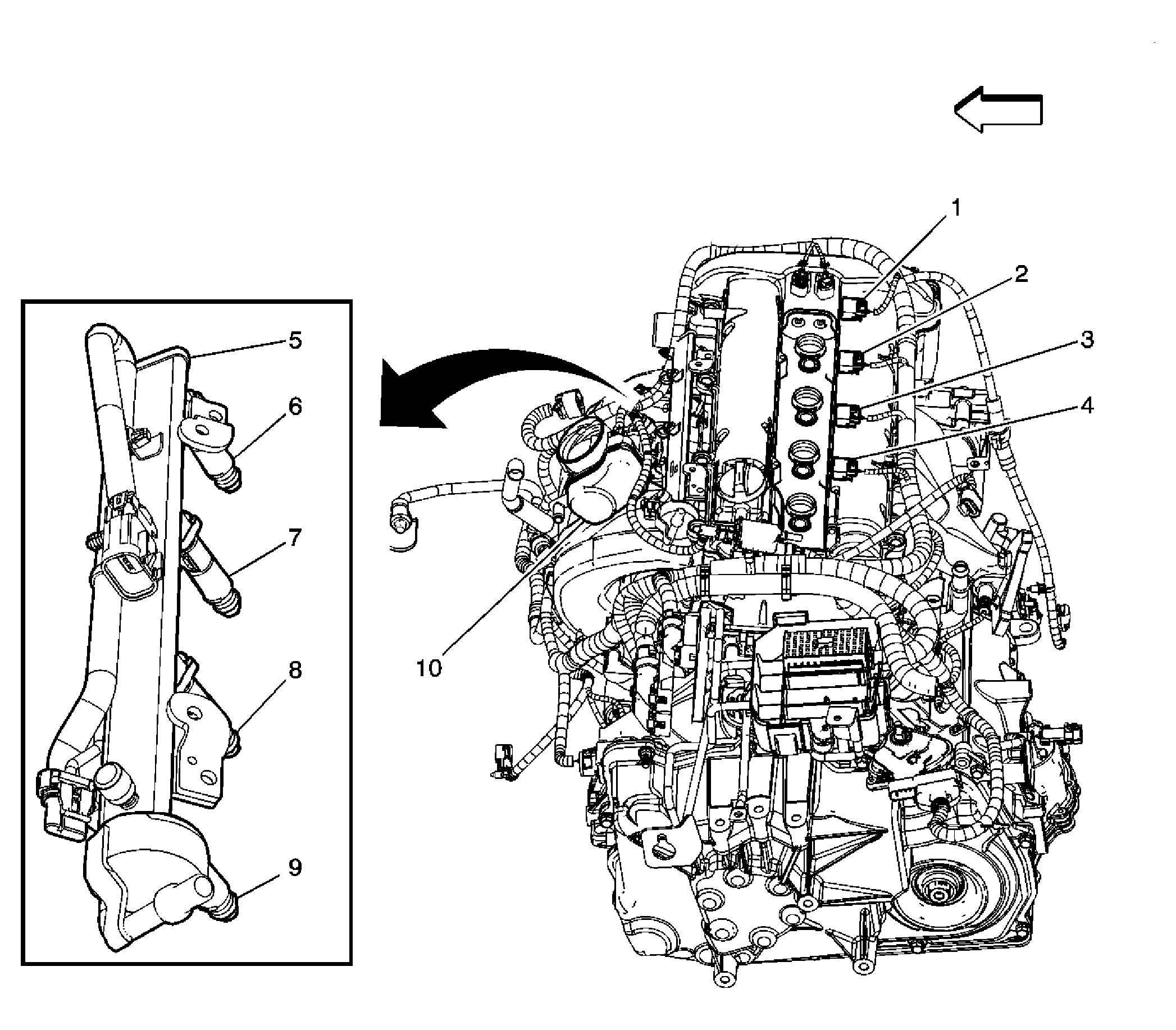

Fig 3: View Of Ignition Coil Modules, Fuel Rail And Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ignition Coil Module 1
2	Ignition Coil Module 2
3	Ignition Coil Module 3
4	Ignition Coil Module 4
5	Fuel Rail
6	Fuel Injector 1
7	Fuel Injector 2
8	Fuel Injector 3
9	Fuel Injector 4
10	Throttle Actuator Control (TAC) Module

Fig 4: View Of Engine Coolant Temperature (ECT) Sensor And Heated Oxygen Sensor (HO2S) 1 (L61)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine Coolant Temperature (ECT) Sensor
2	Heated Oxygen Sensor (HO2S) 1

Fig 5: View Of Mass Air Flow (MAF) Sensor W/Intake Air Temperature (IAT) Sensor (L61)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Mass Air Flow (MAF) Sensor W/Intake Air Temperature (IAT) Sensor

Fig 6: View Of Heated Oxygen Sensor (HO2S) 1 And 2 (L61)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heated Oxygen Sensor (HO2S) 1
2	Heated Oxygen Sensor (HO2S) 2

Fig 7: View Of Engine Coolant Heater And Heated Oxygen Sensor (HO2S) 1 (L61)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine Coolant Heater
2	Heated Oxygen Sensor (HO2S) 1

Fig 8: View Of Starter And Starter Solenoid (L61)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Starter
2	Starter Solenoid

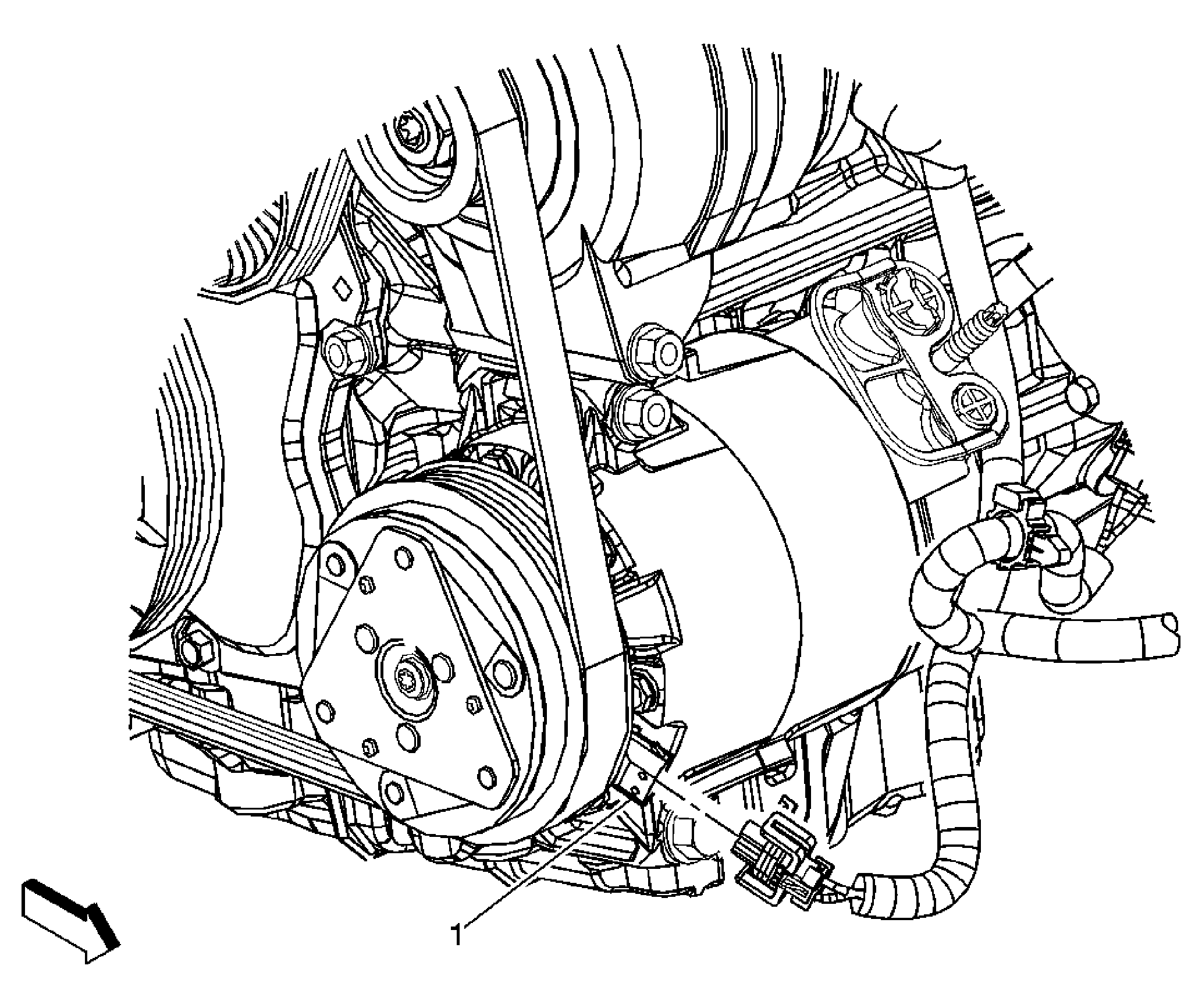

Fig 9: View Of A/C Compressor Clutch (L61)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/C Compressor Clutch

Fig 10: View Of Crankshaft Position (CKP) Sensor And Engine Oil Pressure (EOP) Switch (L61)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Crankshaft Position (CKP) Sensor
2	Engine Oil Pressure (EOP) Switch

Fig 11: View Of Generator And G106 Connector (L61)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G106
2	Generator

Fig 12: View Of TFP Manual Valve Position Switch Assembly, Input Speed And Output Speed Sensors And Pressure Control Solenoid (MN5)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
13	TFP Manual Valve Position Switch Assembly
46	Input Speed Sensor
62	Output Speed Sensor
305	1-2 and 2-3 Shift Solenoid Valves
305	1-2 and 2-3 Shift Solenoid Valves
312	Pressure Control Solenoid
335	TCC Control PWM Solenoid

Fig 13: View Of Battery Positive Terminal, Starter Solenoid, Fusible Link And Starter

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Battery Positive Terminal at Starter Solenoid
2	Fusible Link
3	Starter Solenoid
4	S Terminal
5	Starter

Fig 14: View Of Ignition Control Module, Fuel Injectors And Camshaft Position (CMP) Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ignition Control Module (ICM)
2	Fuel Injector 3
3	Fuel Injector 5
4	Fuel Injector 4
5	Fuel Injector 6
6	Fuel Injector 2
7	Camshaft Position (CMP) Sensor
8	Generator
9	Fuel Injector 1

Fig 15: View Of Fuel Injectors And Camshaft Position (CMP) Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Injector 6
2	Fuel Injector 5
3	Fuel Injector 4
4	Camshaft Position (CMP) Sensor
5	Fuel Injector 1
6	Fuel Injector 2
7	Fuel Injector 3

Fig 16: View Of MAF/IAT Sensor, Evaporative Emission (EVAP) Canister Purge Solenoid Valve, Fuse Block, TCM And ECM

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	MAF/IAT Sensor
2	Evaporative Emission (EVAP) Canister Purge Solenoid Valve
3	Throttle Actuator Control (TAC) Module
4	Fuse Block - Underhood
5	Engine Control Module (ECM)
6	Transmission Control Module (TCM)
7	X100
8	Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1
9	Starter
10	Engine Oil Pressure (EOP) Sensor
11	Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2
12	Knock Sensor 2

Fig 17: View Of Engine Oil Pressure (EOP) Sensor, Starter, Starter Solenoid And Knock Sensor (KS) 2 (LZ4)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine Oil Pressure (EOP) Sensor
2	Starter
3	Starter Solenoid
4	Knock Sensor (KS) 2

Fig 18: View Of Camshaft Position (CMP) Actuator Solenoid, Throttle Actuator Control (TAC) Module, Starter Motor And A/C Compressor Clutch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Camshaft Position (CMP) Actuator Solenoid
2	Throttle Actuator Control (TAC) Module
3	Evaporative Emission (EVAP) Canister Purge Solenoid
4	Knock Sensor (KS) 1
5	Starter Motor
6	Engine Oil Pressure (EOP) Sensor
7	A/C Compressor Clutch

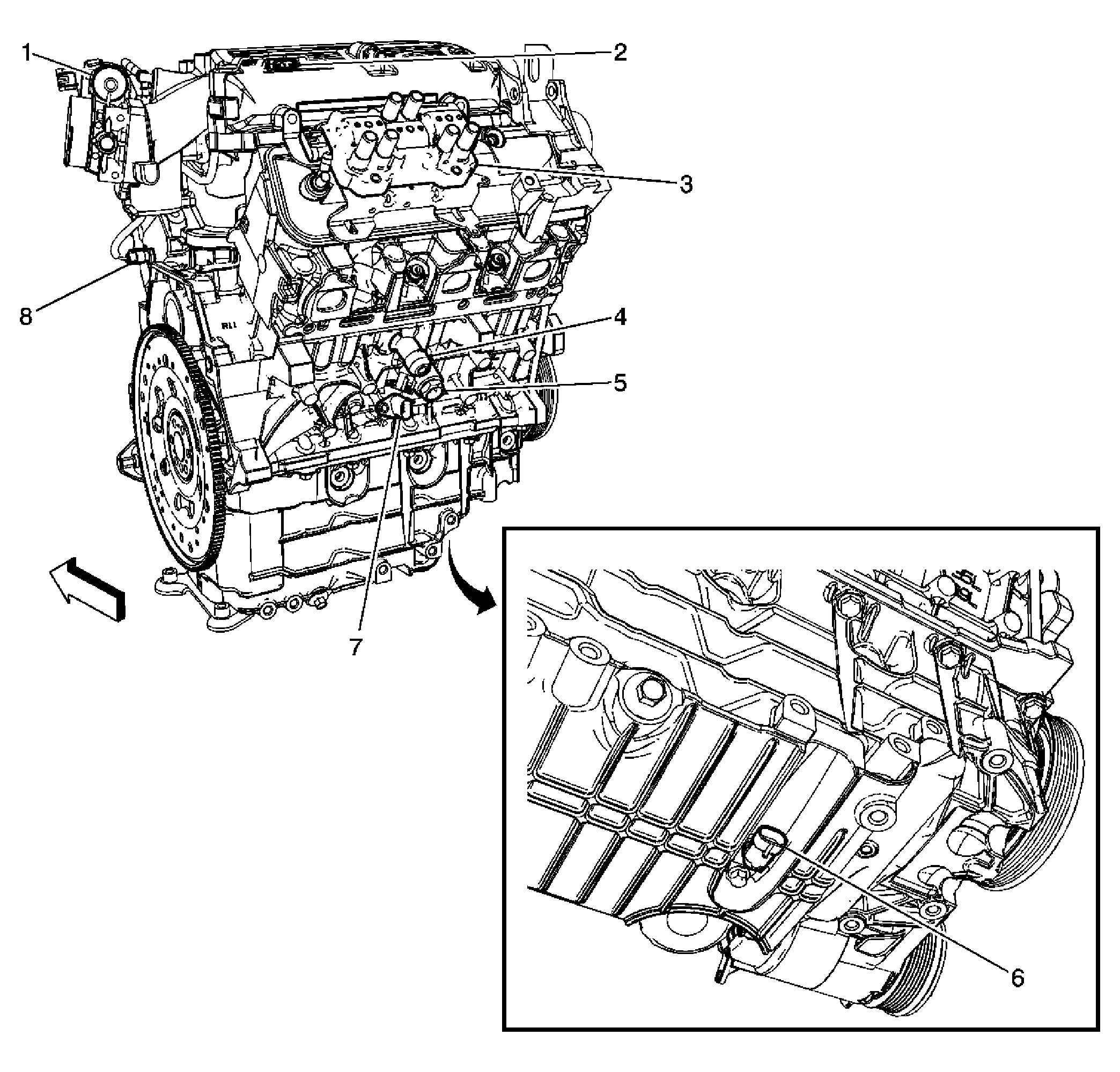

Fig 19: View Of Throttle Actuator Control (TAC) Module, Manifold Absolute Pressure (MAP) Sensor And Ignition Control Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Throttle Actuator Control (TAC) Module
2	Manifold Absolute Pressure (MAP) Sensor
3	Ignition Control Module (ICM)
4	Knock Sensor (KS) 2
5	Engine Block Heater
6	Engine Oil Level Sensor
7	Crankshaft Position (CKP) Sensor
8	Engine Coolant Temperature (ECT) Sensor

Fig 20: View Of MAP Sensor, Ignition Control Module, Knock Sensor 1 And Vehicle Speed Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	MAP Sensor
2	Ignition Control Module (ICM)
3	Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1
4	Knock Sensor 1
5	Engine Coolant Temperature (ECT) Sensor
6	Crankshaft Position (CKP) Sensor
7	Vehicle Speed Sensor (VSS)
8	Engine Oil Level Sensor
9	Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2
10	Park/Neutral Position (PNP) Switch

Fig 21: View Of Oxygen Sensors Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1
2	Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1
3	Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2
4	Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2
