Steering Wheel Secondary/Configurable Control Schematics

WARNING: This page is about a different car, the 2008 Chevrolet Malibu Classic. However, it is still accessible from the selected car via links, so may be relevant.

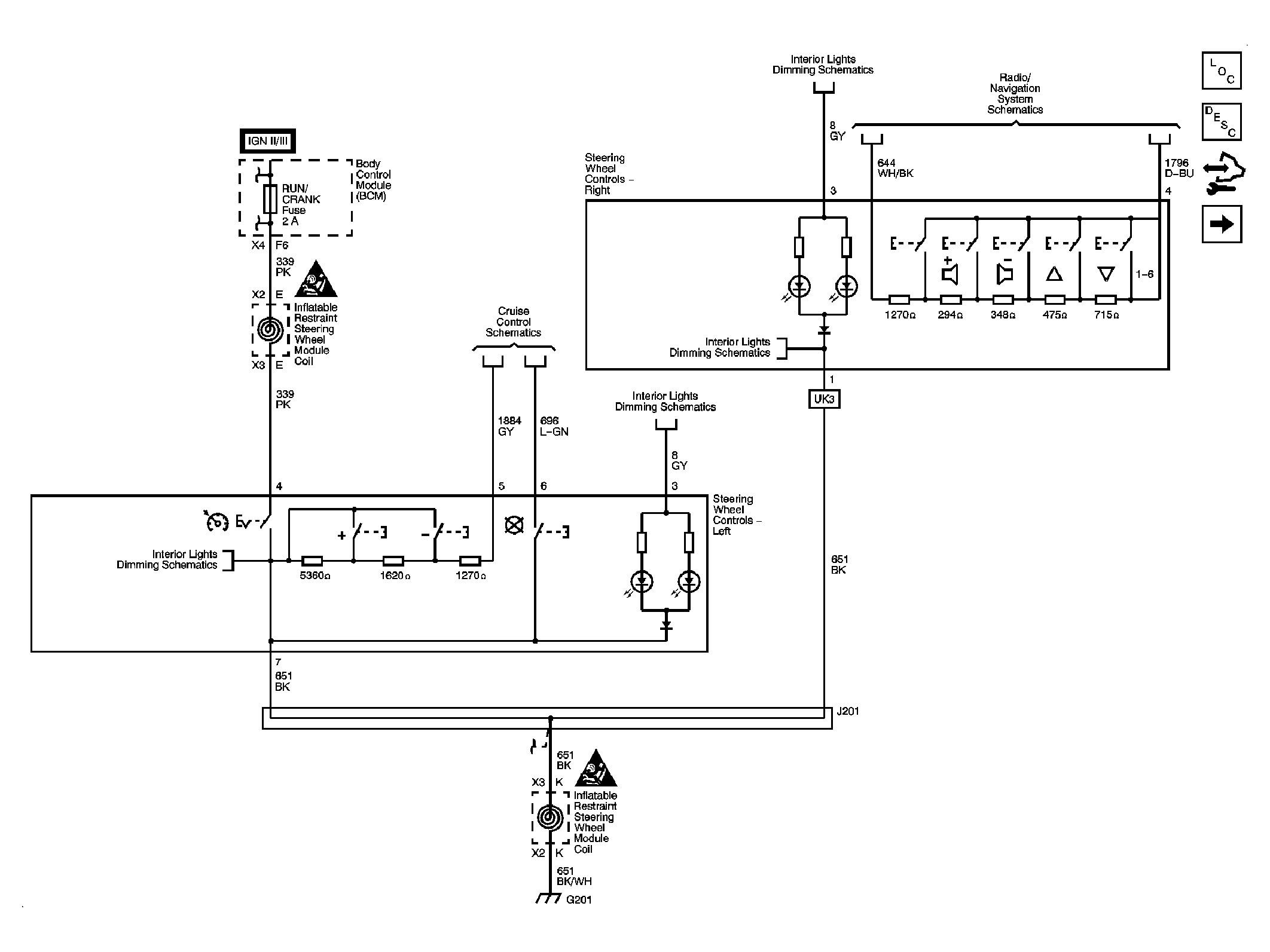

Fig 1: 3-Spoke Schematic
GM1891605Courtesy of GENERAL MOTORS CORP.

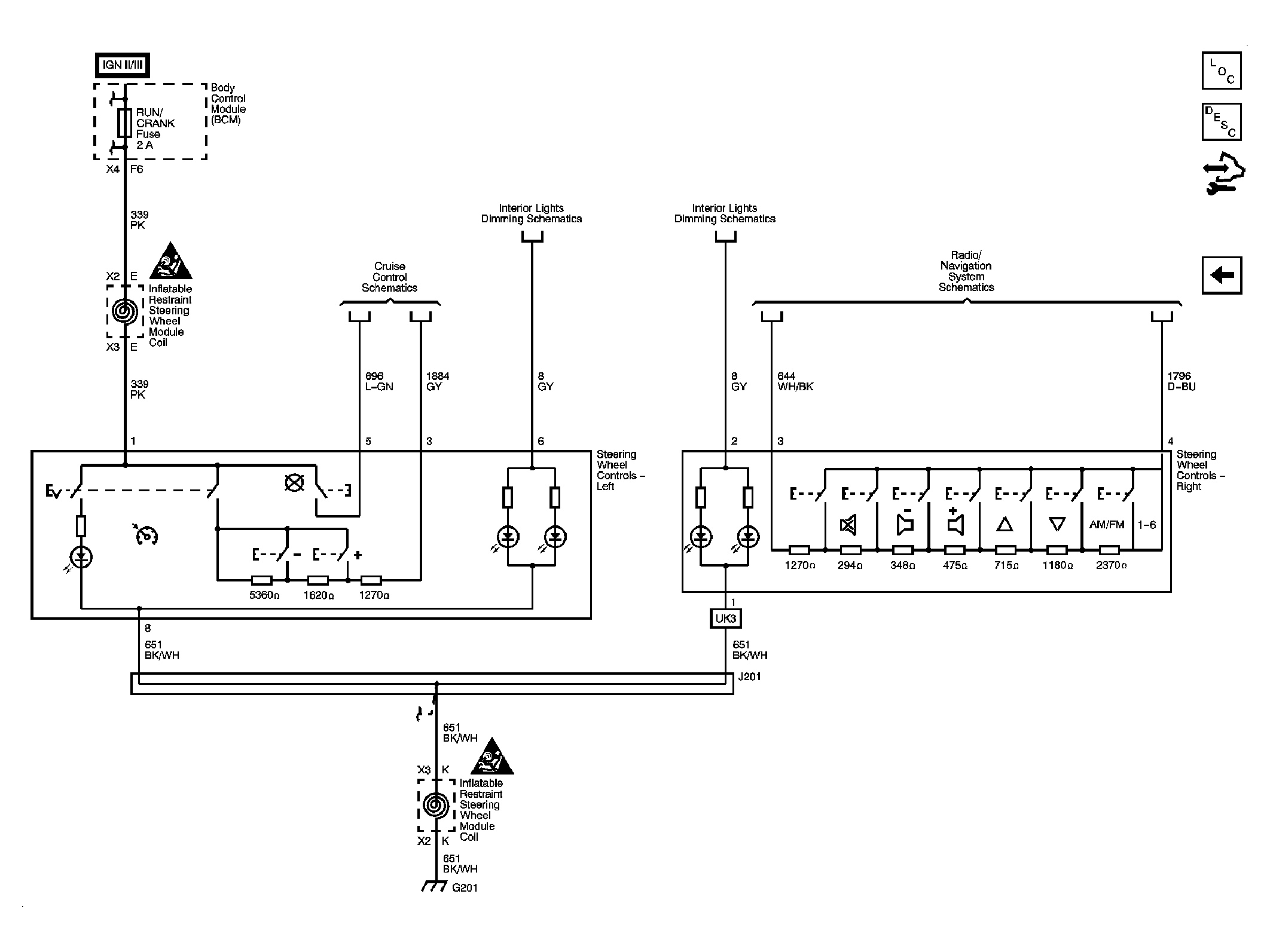

Fig 2: 4-Spoke Schematic
GM1891607Courtesy of GENERAL MOTORS CORP.
