Installation Procedure

WARNING: This page is about a different car, the 2008 Isuzu i-370, 2008 Isuzu i-290, 2008 GMC Canyon, and 2008 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

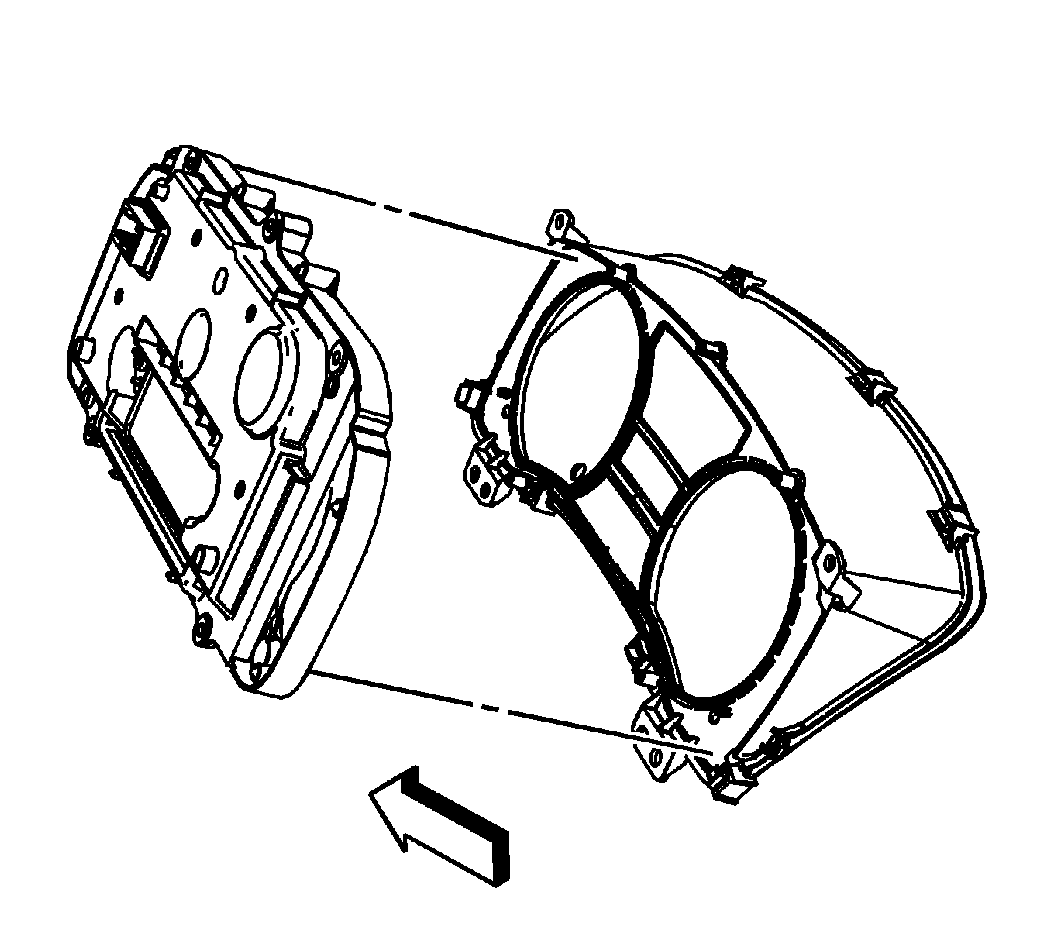

    Fig 1: View Of IPC Lens
    GM1300318Courtesy of GENERAL MOTORS CORP.
  1. Install the lens to the IPC.

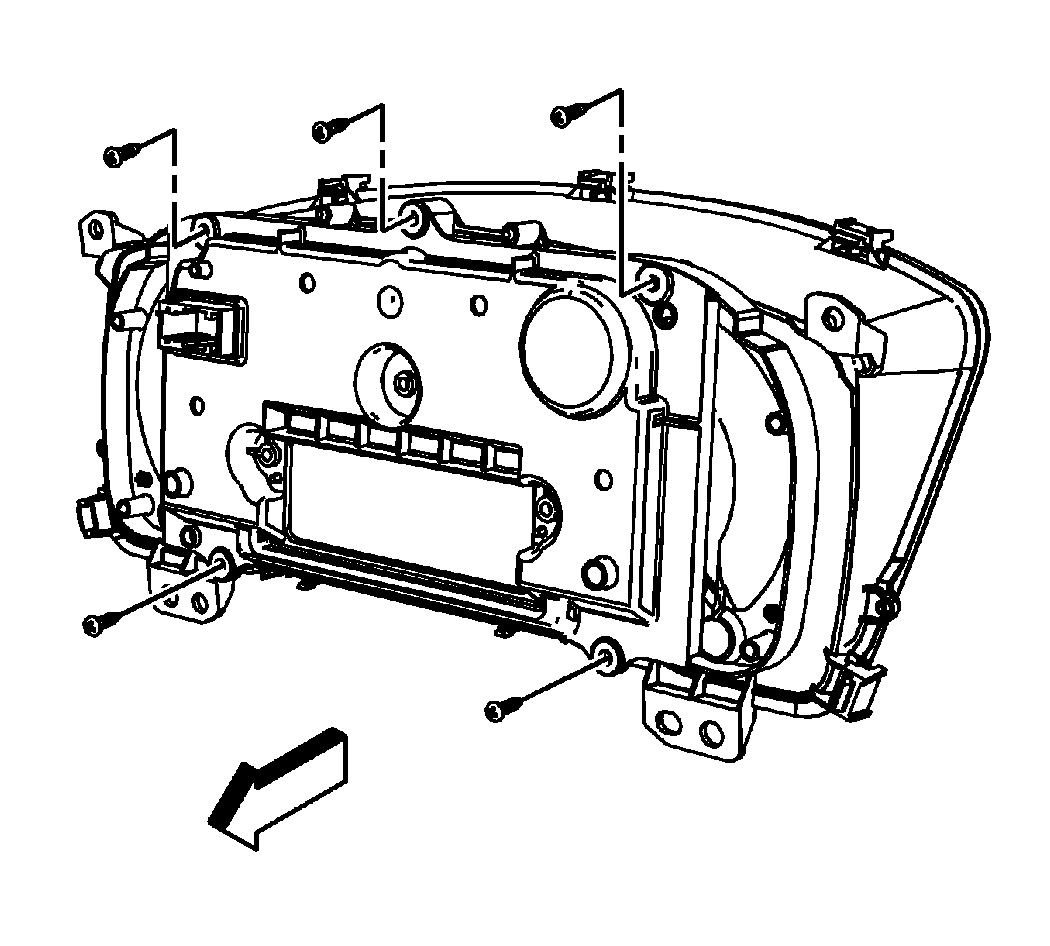

    2. Fig 2: View Of IPC Lens Retaining Screws
    GM1300326Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  2. Install the screws to the IPC lens.

    Tighten:  Tighten the screws to 1.5 N.m (14 lb in).

  3. Install the IPC. Refer to Instrument Cluster Replacement .
  4. Install the IPC bezel. Refer to Instrument Panel Cluster Trim Plate Bezel Replacement .
