Wheels/Vehicle Underbody Component Views

WARNING: This page is about a different car, the 2008 Chevrolet Malibu Classic. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Top Of Fuel Tank

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Tank Pressure (FTP) Sensor, Connector
2	Fuel Pump and Sender Assembly
3	Fuel Pump and Sender Assembly Connector
4	Fuel Tank

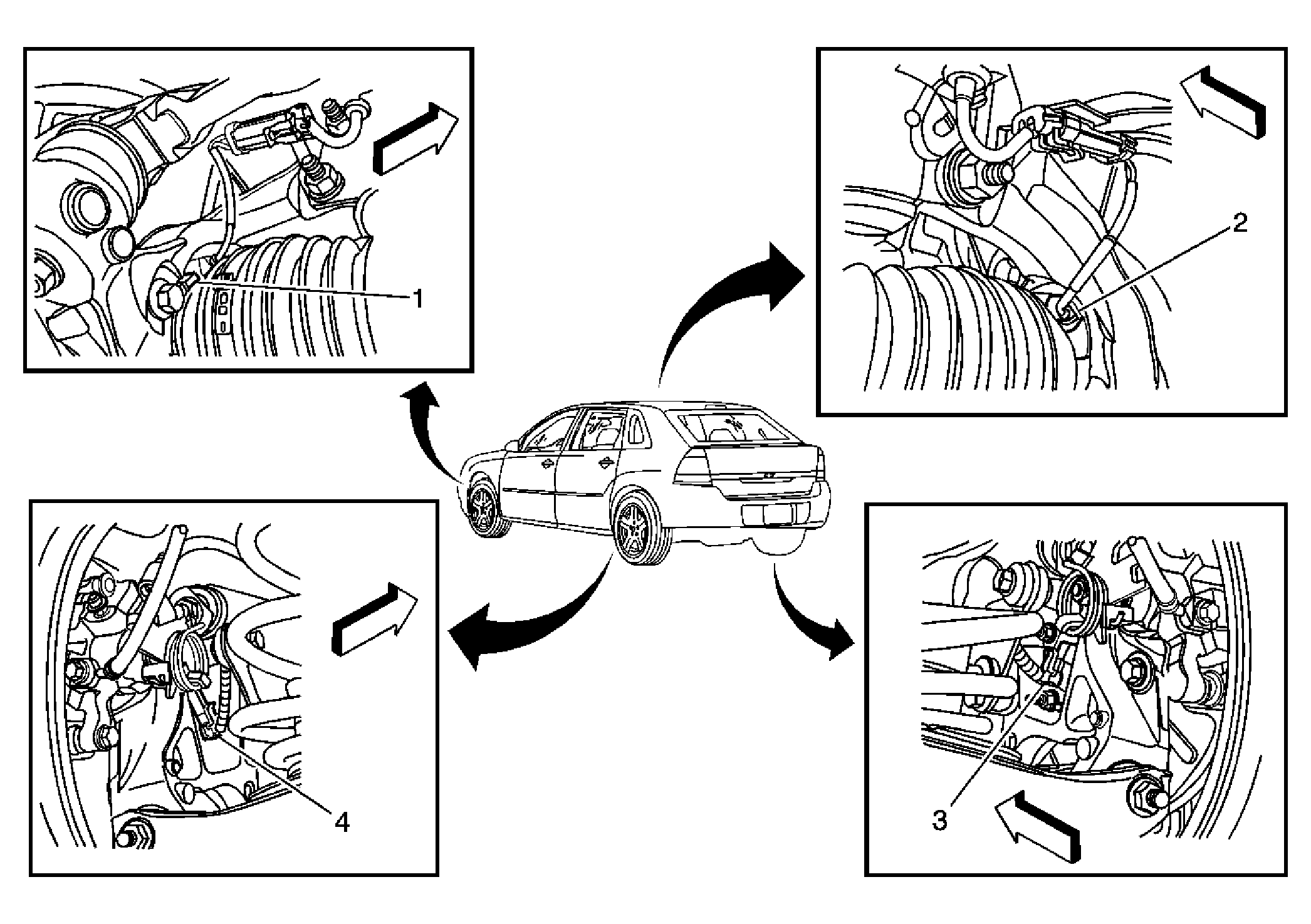

Fig 2: Wheel Speed Sensors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Wheel Speed Sensor (WSS) - Left Front
2	Wheel Speed Sensor (WSS) - Right Front
3	Wheel Speed Sensor (WSS) - Right Rear
4	Wheel Speed Sensor (WSS) - Left Rear

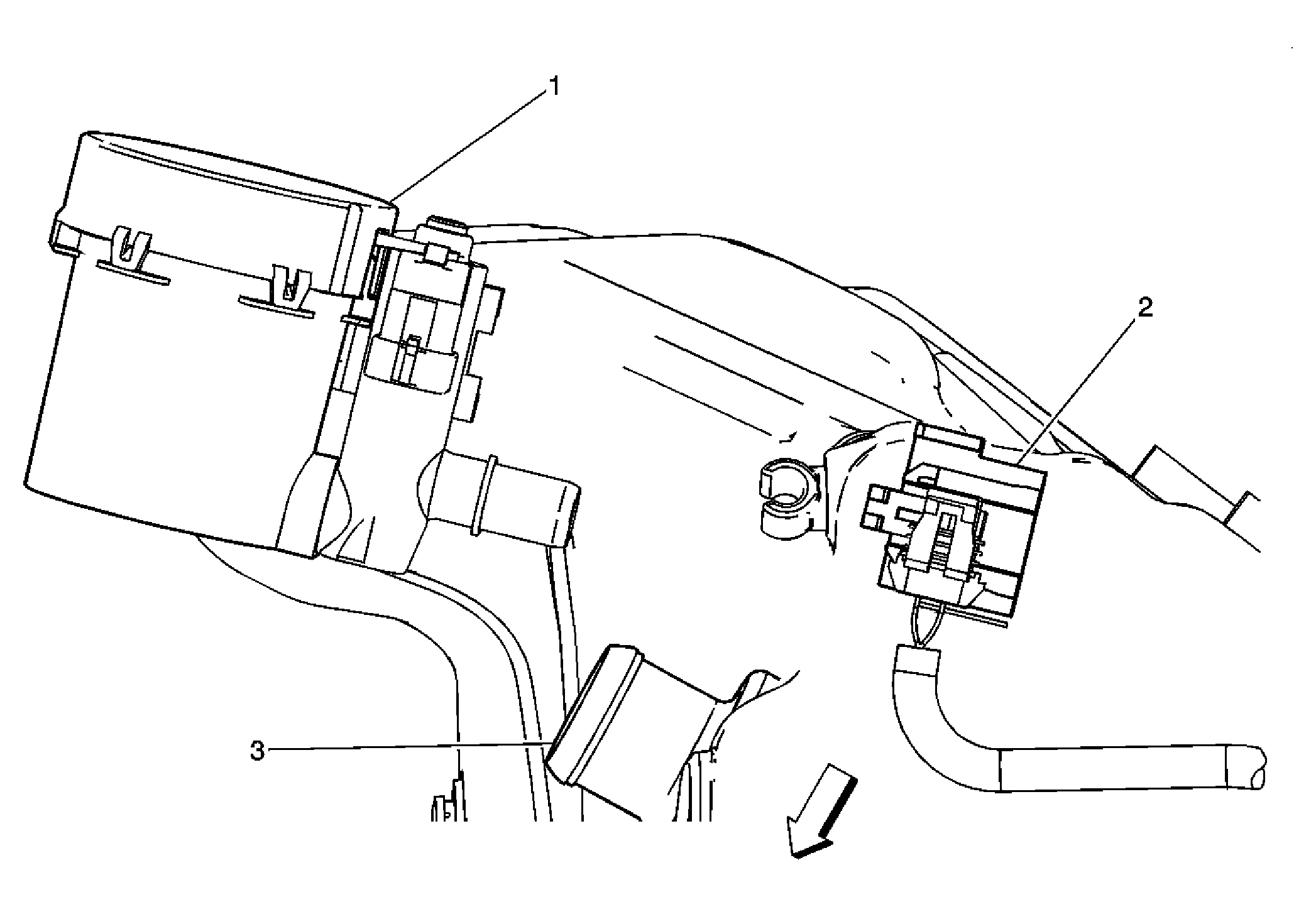

Fig 3: Under Right Rear Of Vehicle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Evaporative Emission (EVAP) Canister
2	Evaporative Emission (EVAP) Canister Vent Solenoid Valve
3	Fuel Tank Filler Neck

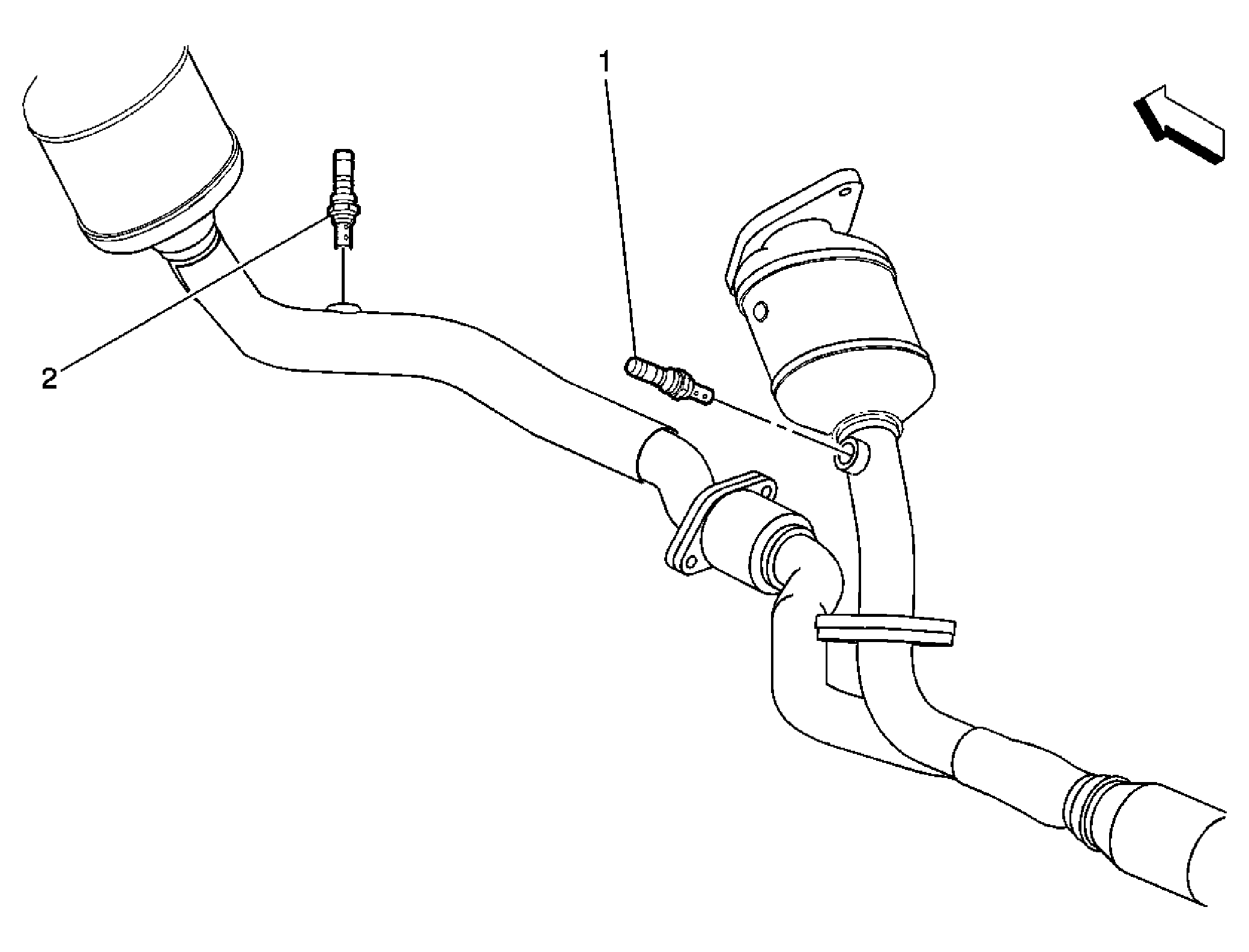

Fig 4: Behind The Catalytic Convertors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2
2	Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2

Fig 5: Fuel Tank Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Evaporative Emission (EVAP) Canister
2	Evaporative Emission (EVAP) Canister Vent Solenoid Valve
3	Fuel Pump and Sender Assembly
4	Fuel Tank Pressure (FTP) Sensor
5	Fuel Tank
