Luggage Compartment/Rear of Vehicle Component Views

WARNING: This page is about a different car, the 2008 Chevrolet Malibu Classic. However, it is still accessible from the selected car via links, so may be relevant.

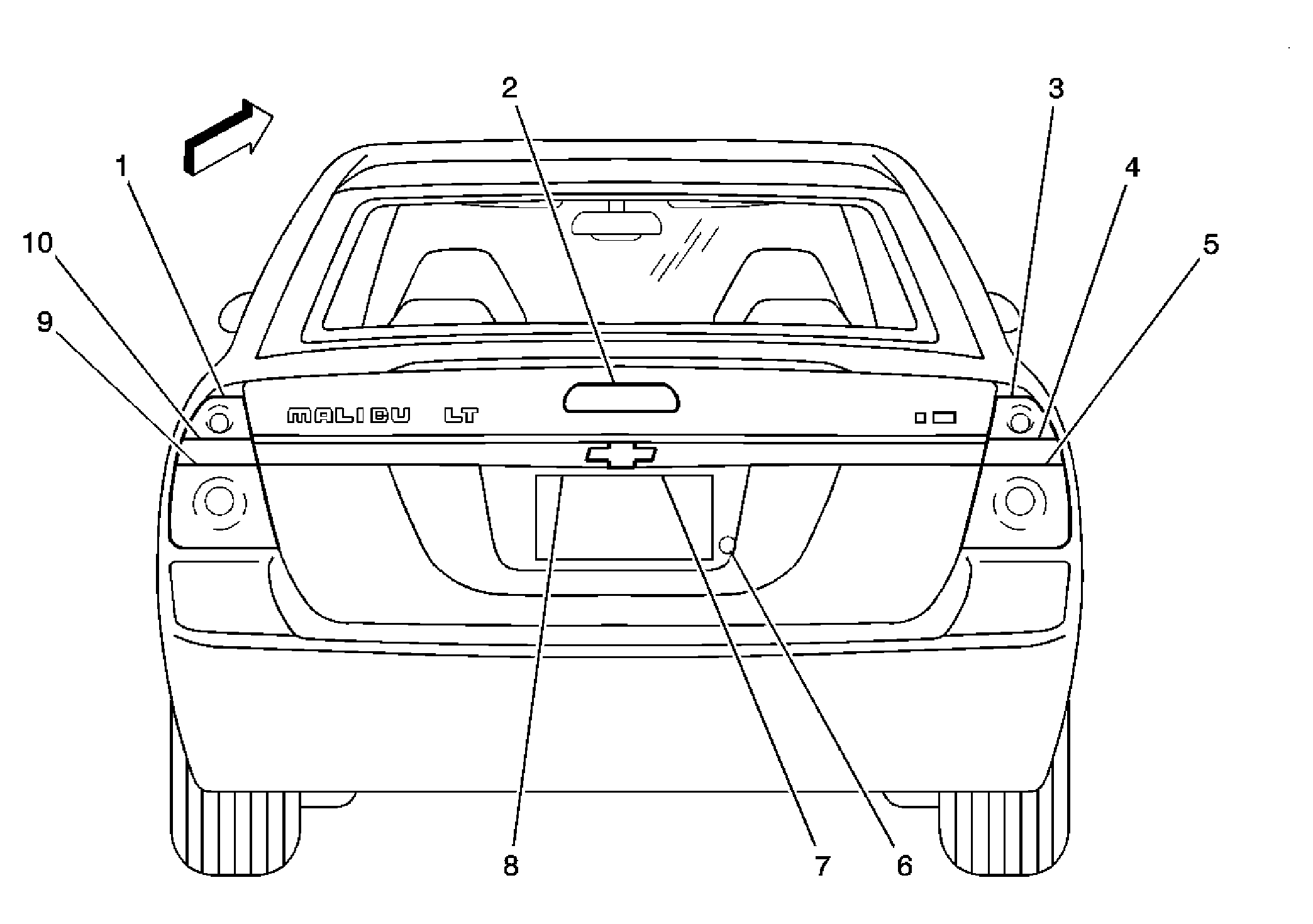

Fig 1: Rear Of Vehicle - Sedan

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Tail Lamp - Left
2	Center High Mounted Stop Lamp (CHMSL)
3	Tail Lamp - Right
4	Backup Lamp - Right
5	Tail/Stop and Turn Signal Lamp - Right
6	Rear Compartment Lid Release Switch - Exterior
7	License Lamp - Right
8	License Lamp - Left
9	Tail/Stop and Turn Signal Lamp - Left
10	Backup Lamp - Left

Fig 2: Locating Rear Compartment Courtesy Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Compartment Courtesy Lamp

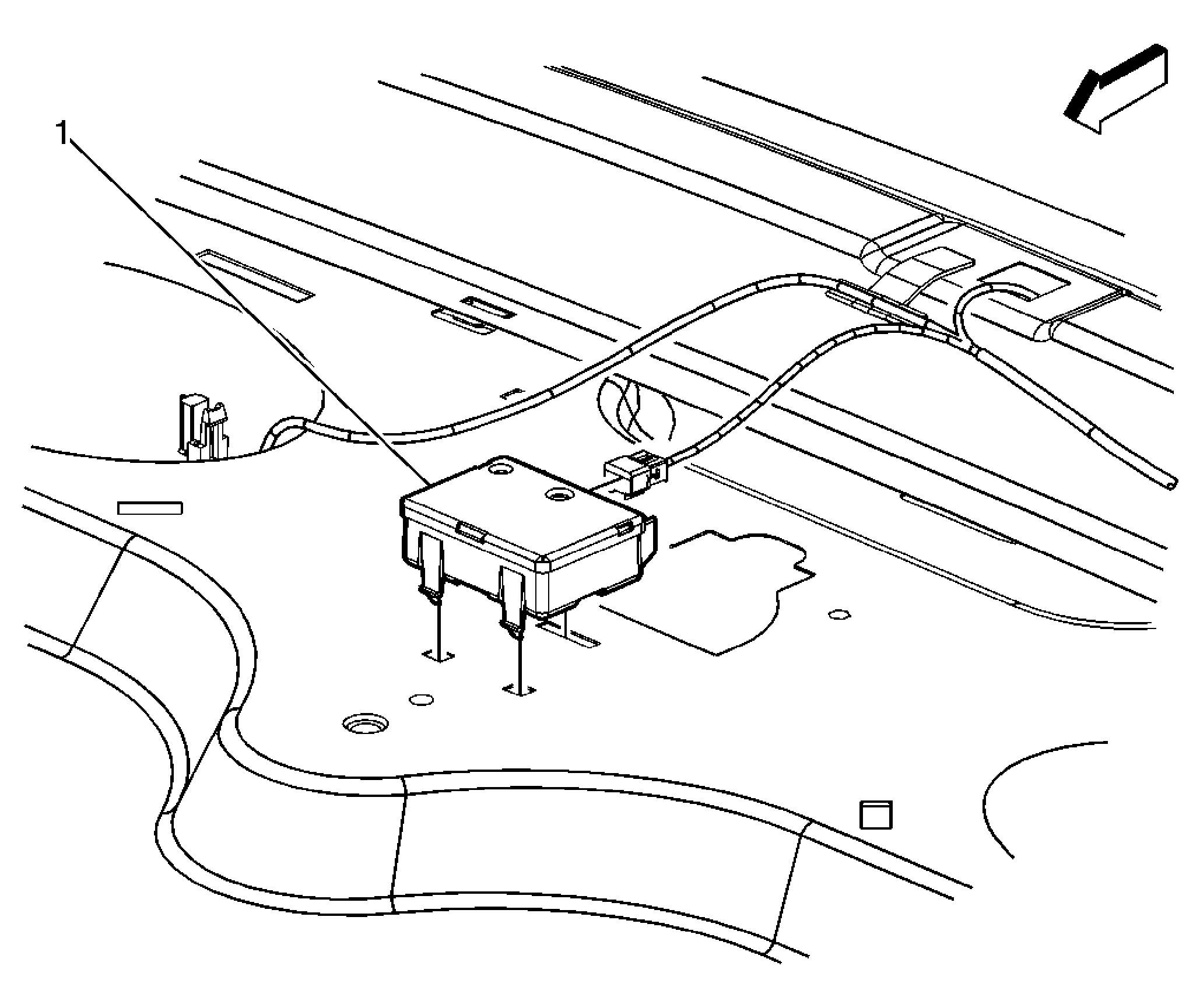

Fig 3: Right Side Of Rear Compartment Component Views (Sedan)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Digital Radio Receiver

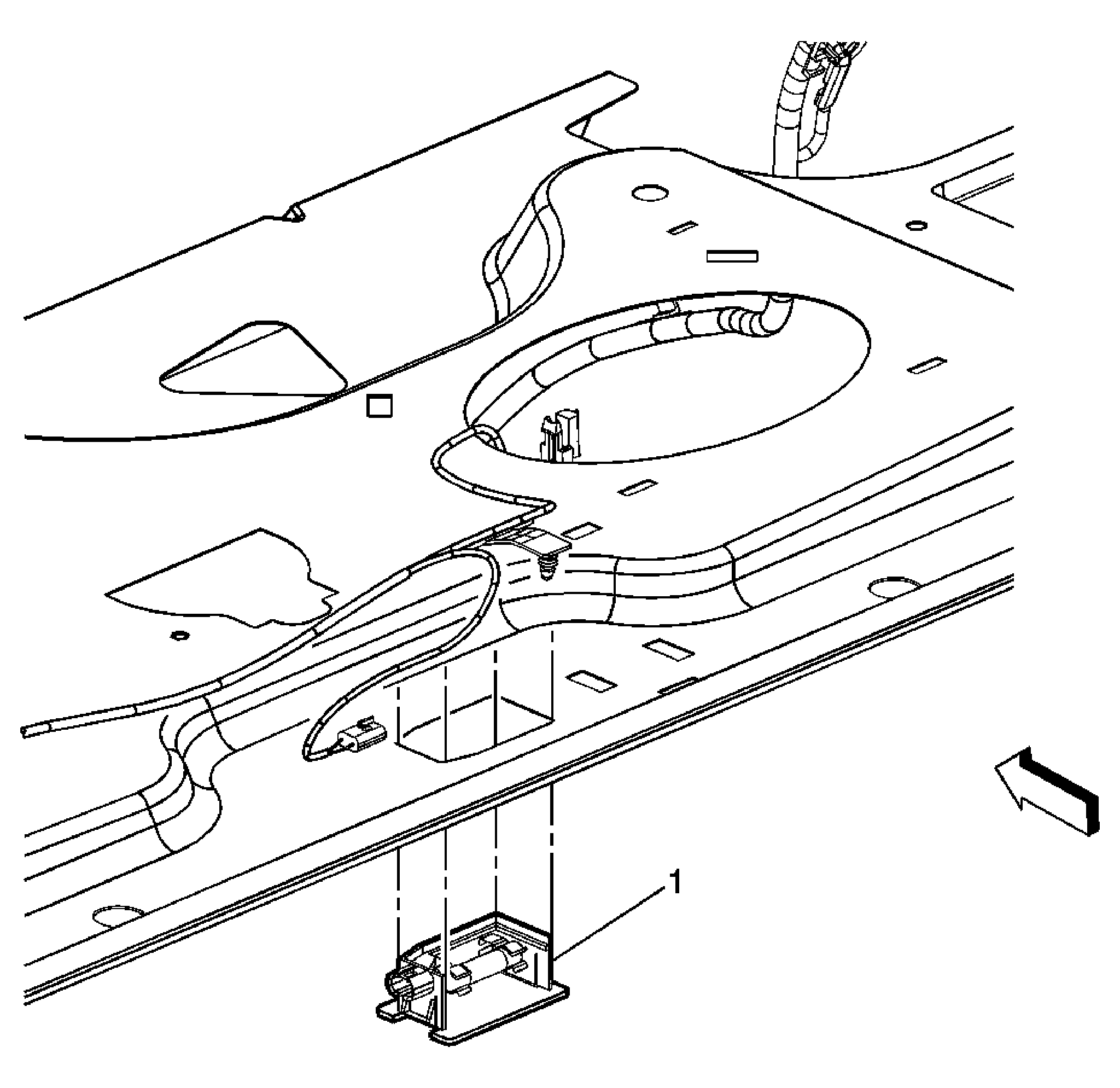

Fig 4: Rear Speakers (Sedan)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - Right Rear
2	Speaker - Left Rear

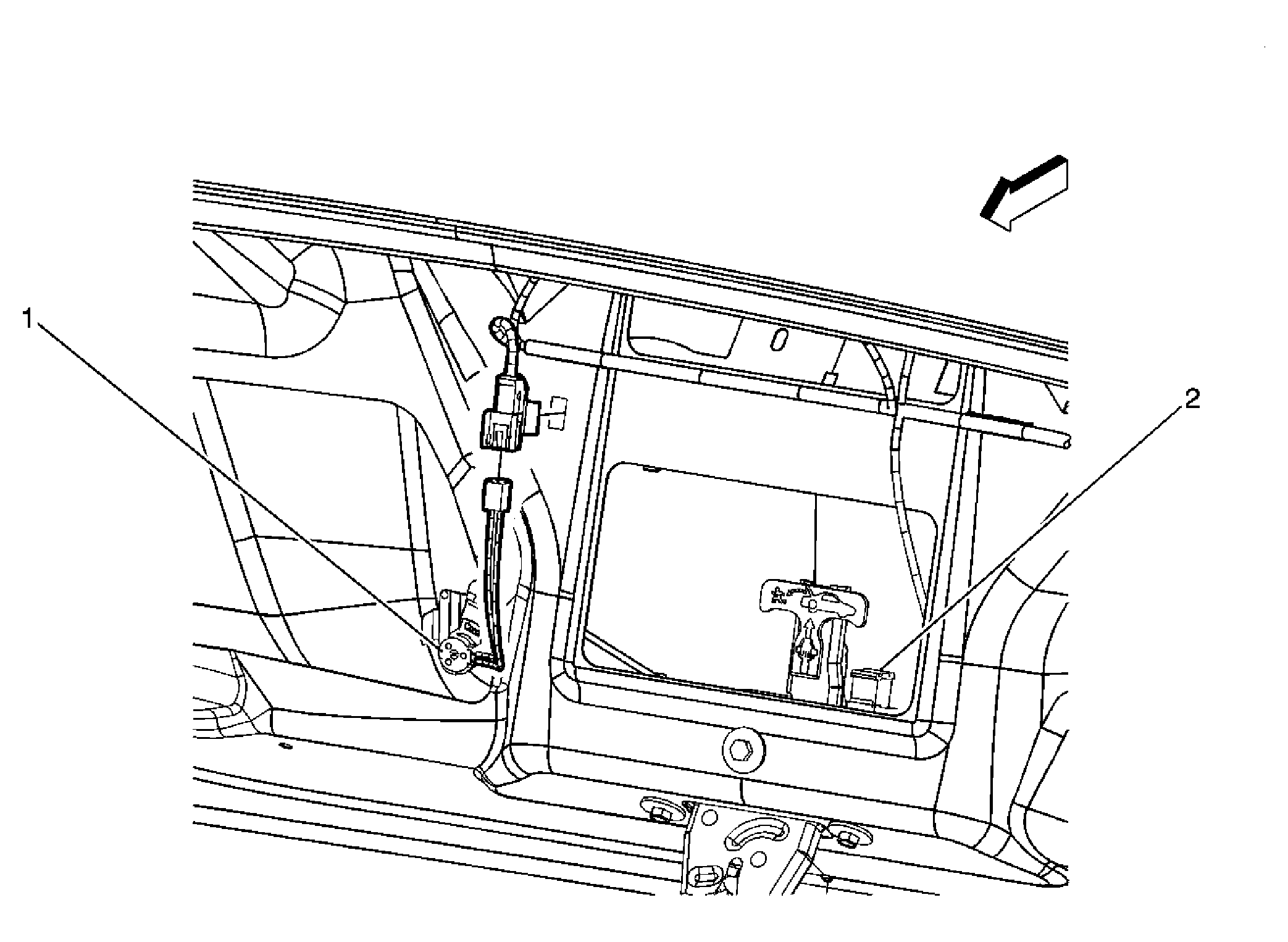

Fig 5: Body Rear End Component Views - Rear Of Rear Compartment Lid - Sedan

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Compartment Lid Release Switch - Exterior
2	Rear Compartment Lid Latch

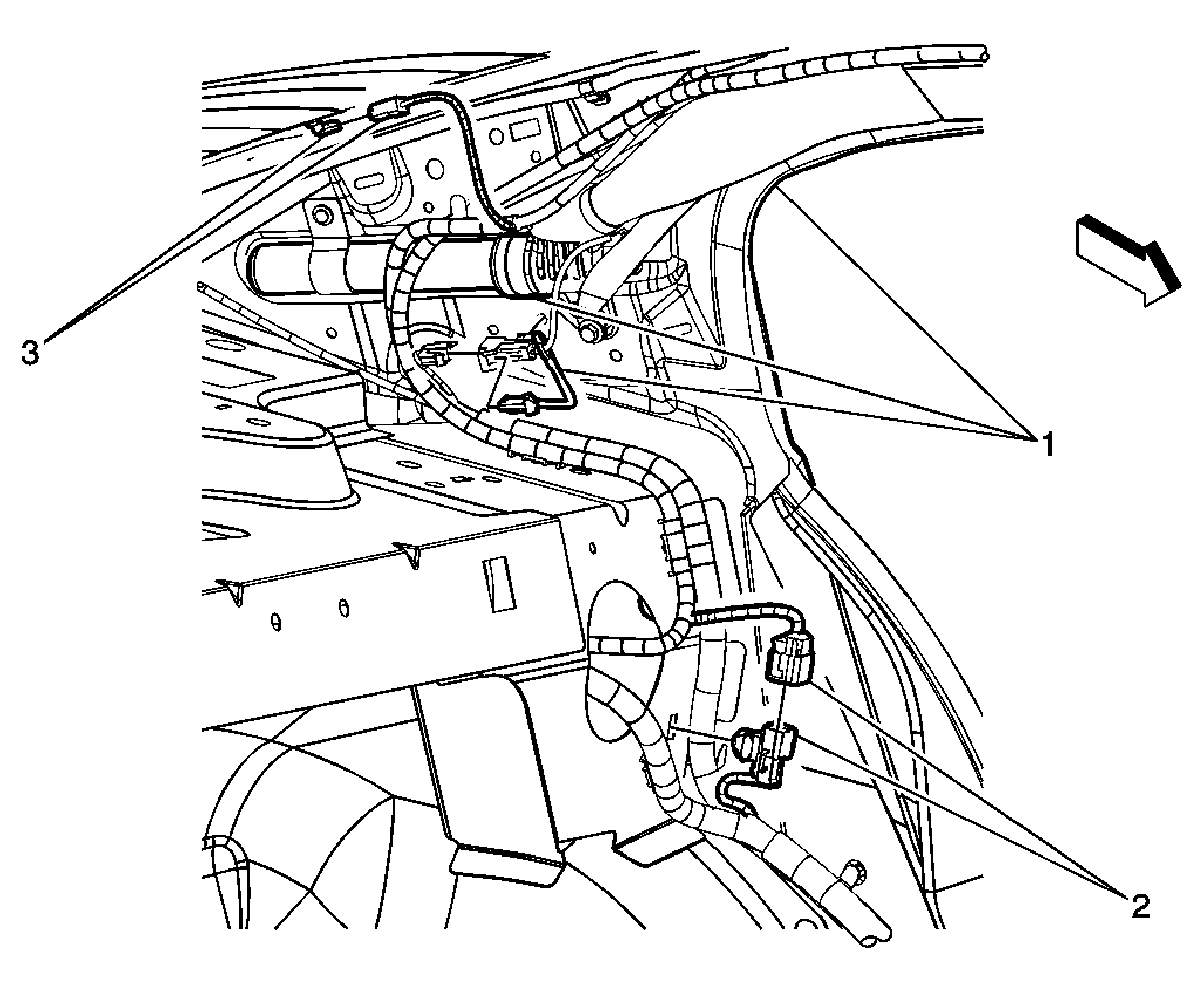

Fig 6: Inside Of The Left C-Pillar - Sedan

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Roof Rail Module - Left (AY0)
2	X451 (UE1)
3	Rear Window Defogger Grid X1

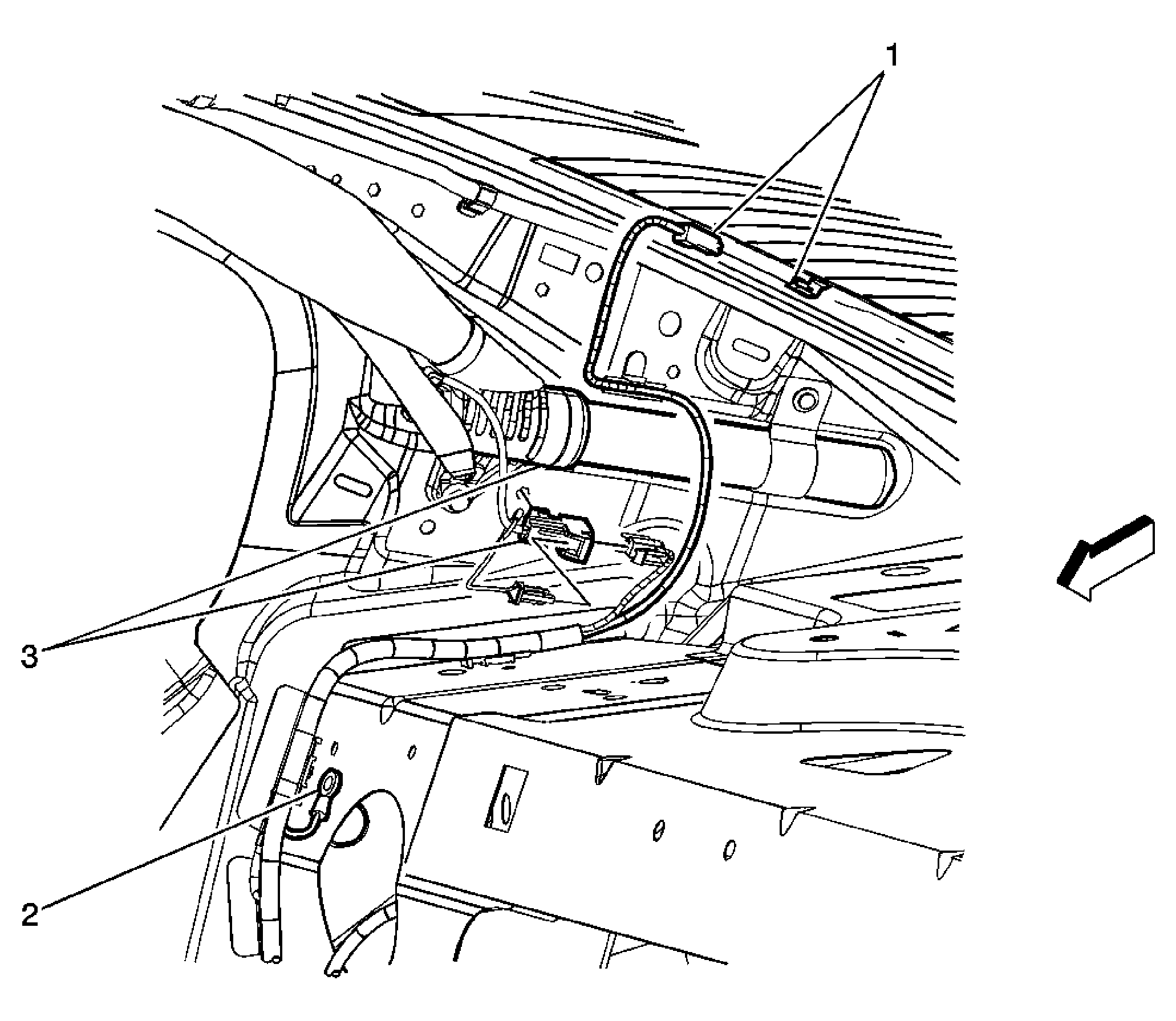

Fig 7: Inside Of Right C-Pillar - Sedan

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Defogger Grid X2
2	G301
3	Inflatable Restraint Roof Rail Module - Right (AY0)

Fig 8: Remote Control Door Lock Receiver (RCDLR) - Sedan

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Remote Control Door Lock Receiver (RCDLR)
