Torque Converter Clutch Pulse Width Modulated (TCC PWM) Solenoid Valve, Wiring Harness Side

WARNING: This page is about a different car, the 2008 Chevrolet Malibu Classic. However, it is still accessible from the selected car via links, so may be relevant.

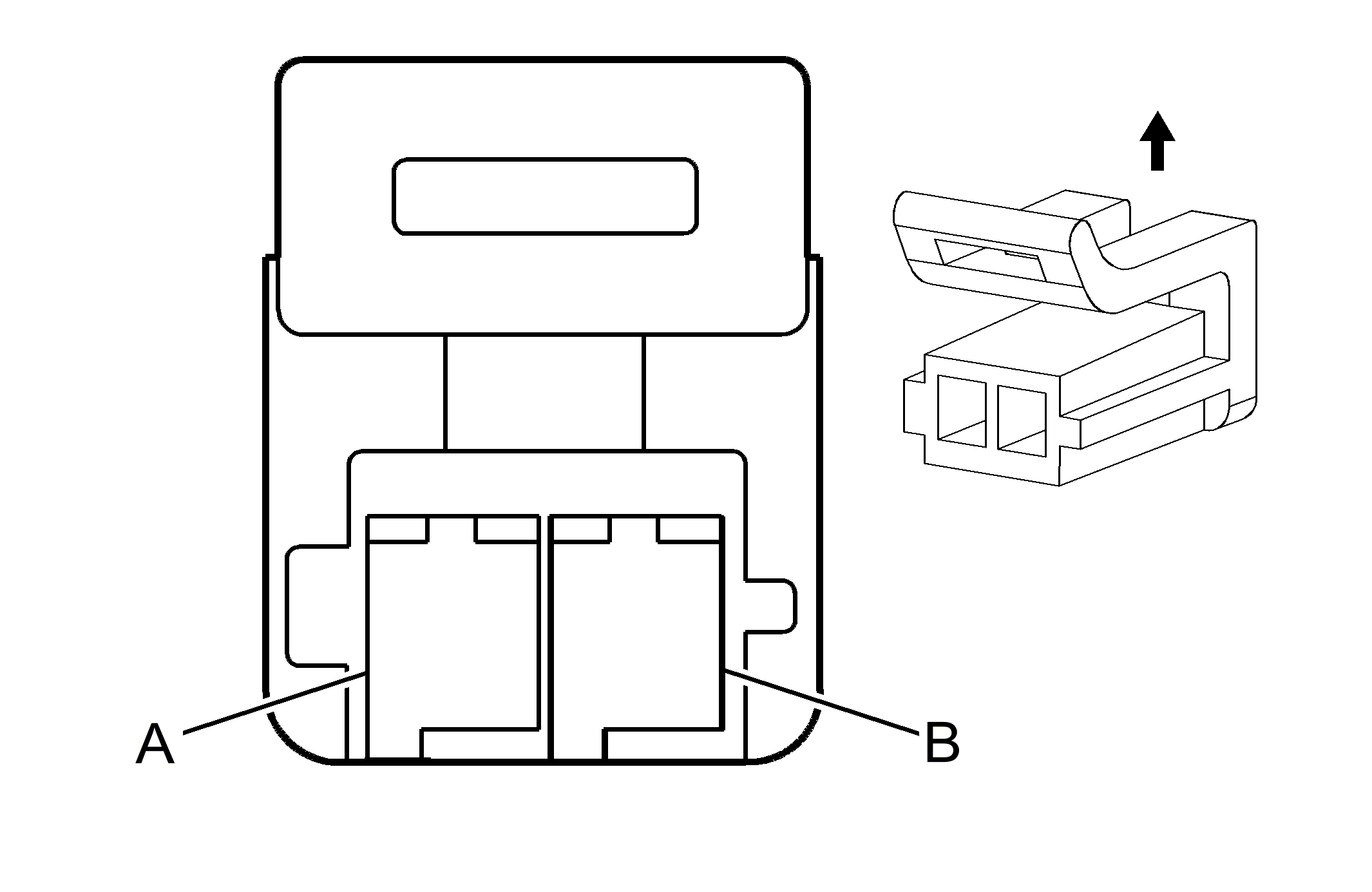

Fig 1: Torque Converter Clutch Pulse Width Modulated (TCC PWM) Solenoid Valve, Wiring Harness Side Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
A	0.5 RD	839	Ignition 1 Voltage
B	0.35 TN	418	Torque Converter Clutch Pulse Width Modulated (TCC PWM) Solenoid Valve Control

Connector Part Information

OEM: 12162202
Service: Non-Serviceable
Description: 2-Way F Micro-Pack 150.2 Series P2S (BU)

Terminal Part Information

Terminal: Non-Serviceable
Core/Insulation Crimp: Non-Serviceable
Release Tool/Test Probe: Non-Serviceable
