Power Steering Pump Pulley Replacement

WARNING: This page is about a different car, the 2008 Chevrolet Malibu Classic. However, it is still accessible from the selected car via links, so may be relevant.

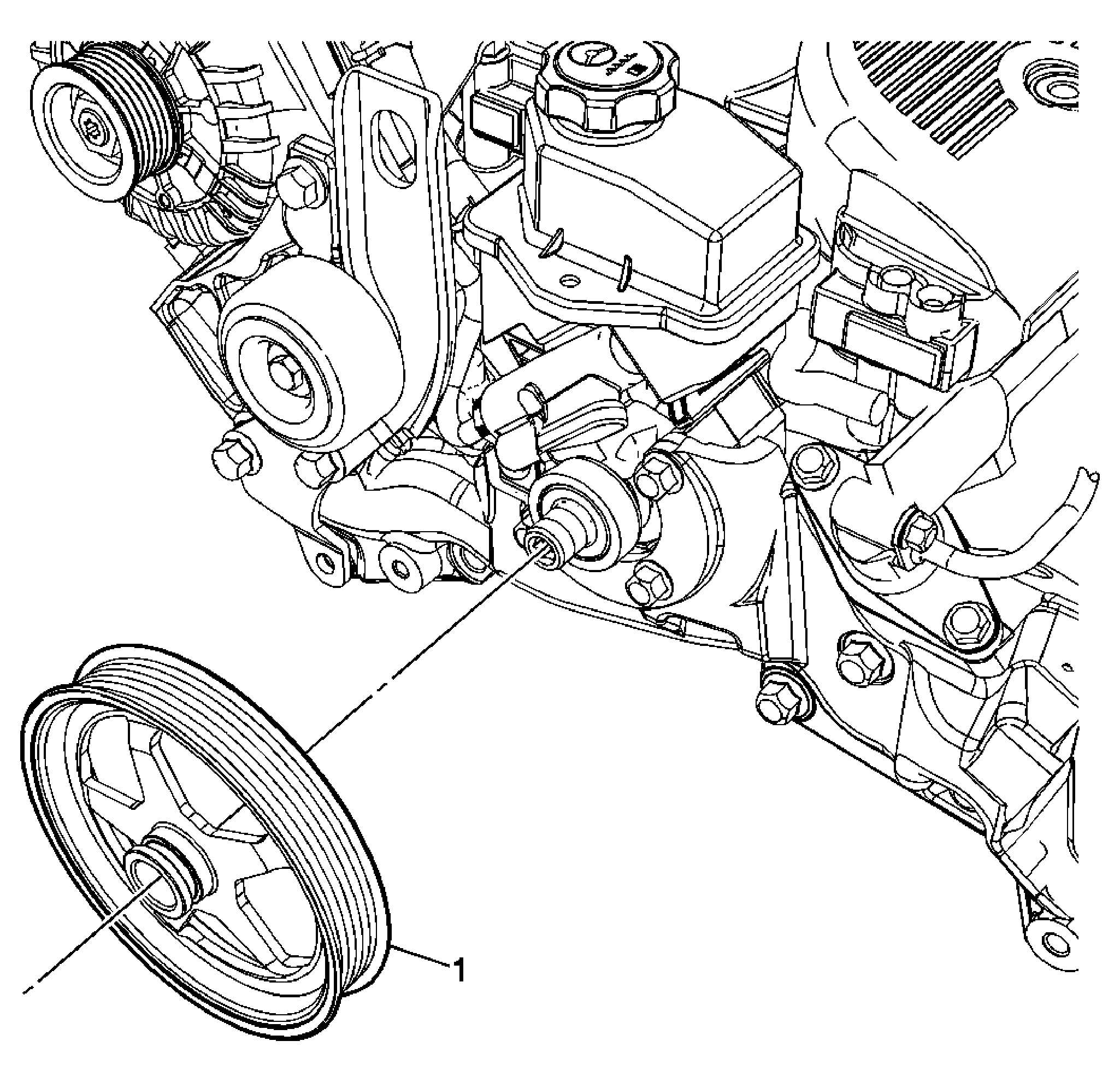

Fig 1: Identifying Power Steering Pump Pulley
GM1776914Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedures

  1. Remove the power steering pump drive belt. Refer to Drive Belt Replacement .
  2. Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
  3. Remove the engine mount strut. Refer to Engine Mount Strut Replacement .
1 Power Steering Pump Pulley
Tip:
  1. Using the J 25034-C  , remove the power steering pump pulley. See Special Tools .
  2. Using the J 25033-C  , install the power steering pump pulley. See Special Tools .

Special Tools
