Installation Procedure

WARNING: This page is about a different car, the 2008 Isuzu i-370, 2008 Isuzu i-290, 2008 GMC Canyon, and 2008 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

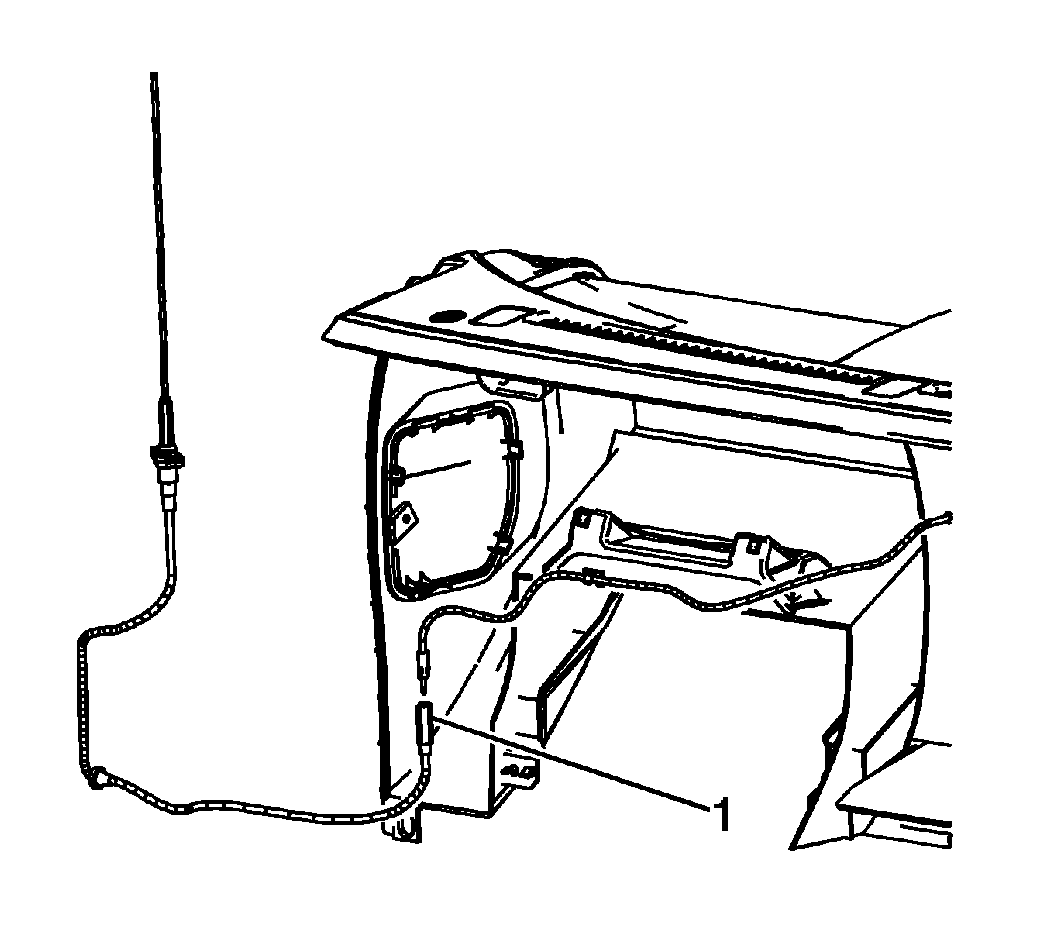

    Fig 1: View Of Radio Extension Cable
    GM1363155Courtesy of GENERAL MOTORS CORP.
  1. Install the cable to the vehicle.
  2. Install the clip retaining the extension cable.
  3. Connect the radio extension antenna cable (1).
  4. Close the I/P compartment door.
  5. Install the radio. Refer to Radio Replacement .
  6. Install the accessory trim panel. Refer to Instrument Panel Accessory Trim Plate Replacement .
