Installation Procedure

WARNING: This page is about a different car, the 2008 Isuzu i-370, 2008 Isuzu i-290, 2008 GMC Canyon, and 2008 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

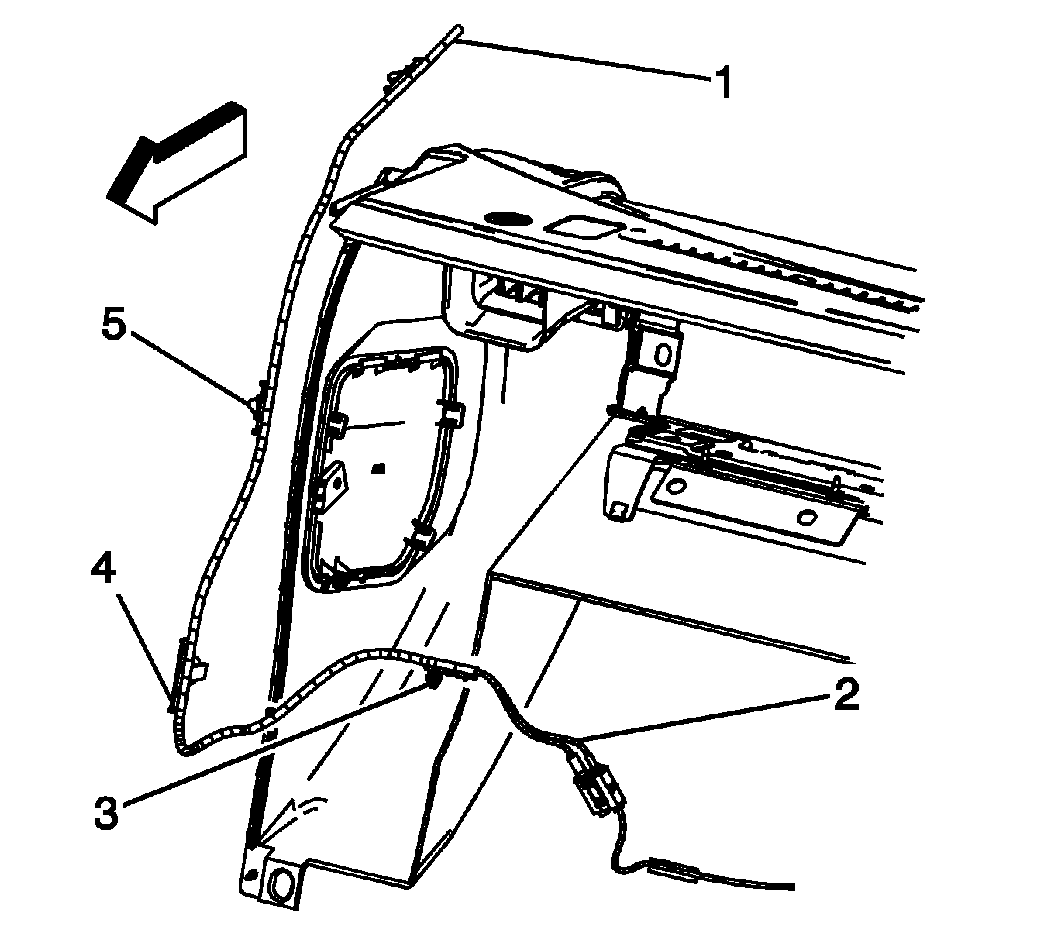

    Fig 1: View Of Coax Cable & Components (UE1)
    GM1364846Courtesy of GENERAL MOTORS CORP.
  1. Attach the existing mechanics wire to the end of the coax cable (2).
  2. Pull downward on the mechanics wire to install the cable behind the I/P.
  3. Attach the coax cable retainer (4) to the hinge pillar.
  4. Attach the coax cable retainer (3) to the I/P.

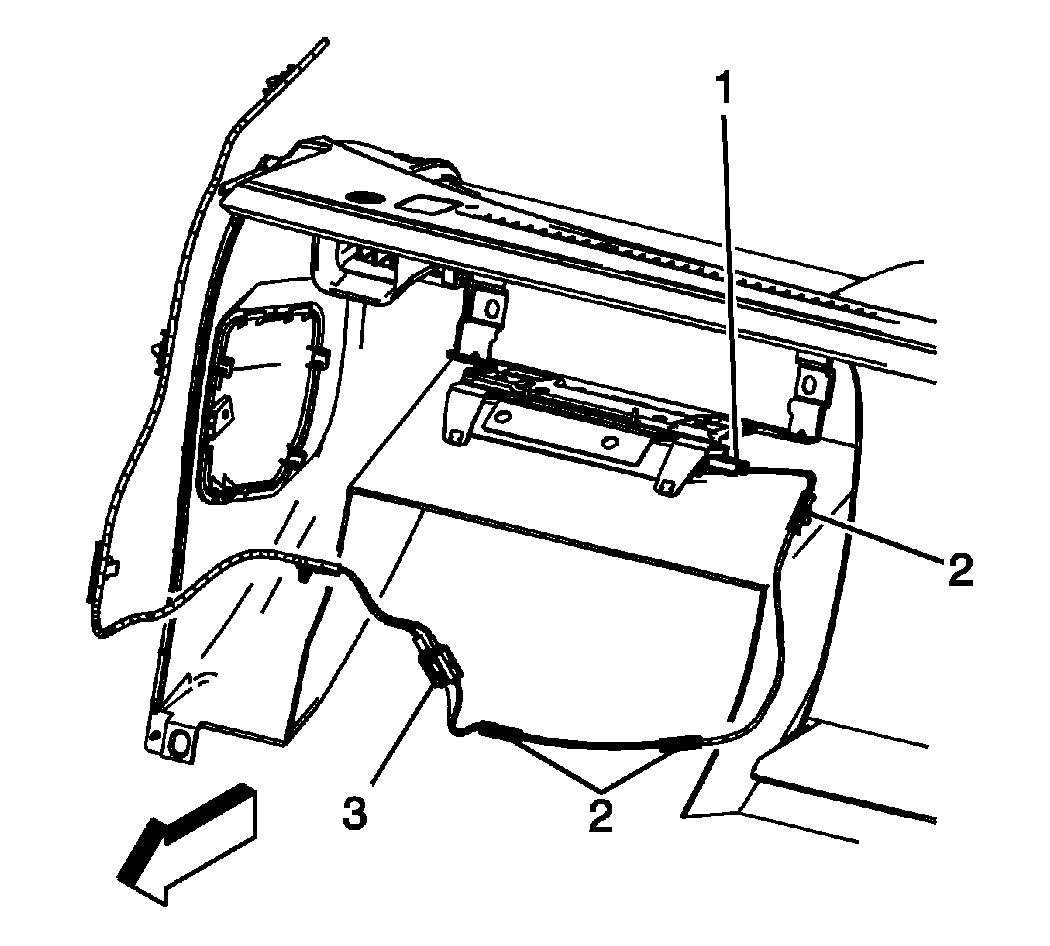

    5. Fig 2: View Of Receiver Extension Cable, Retainers, & Electrical Connector
    GM1364137Courtesy of GENERAL MOTORS CORP.
  5. Connect the digital receiver extension cable (1) to the receiver.
  6. Attach the retainers (2) to the I/P.
  7. Connect the electrical connector (3).
  8. Close the (I/P) compartment door.
  9. Attach the 3 coax cable retainers to the windshield pillar.

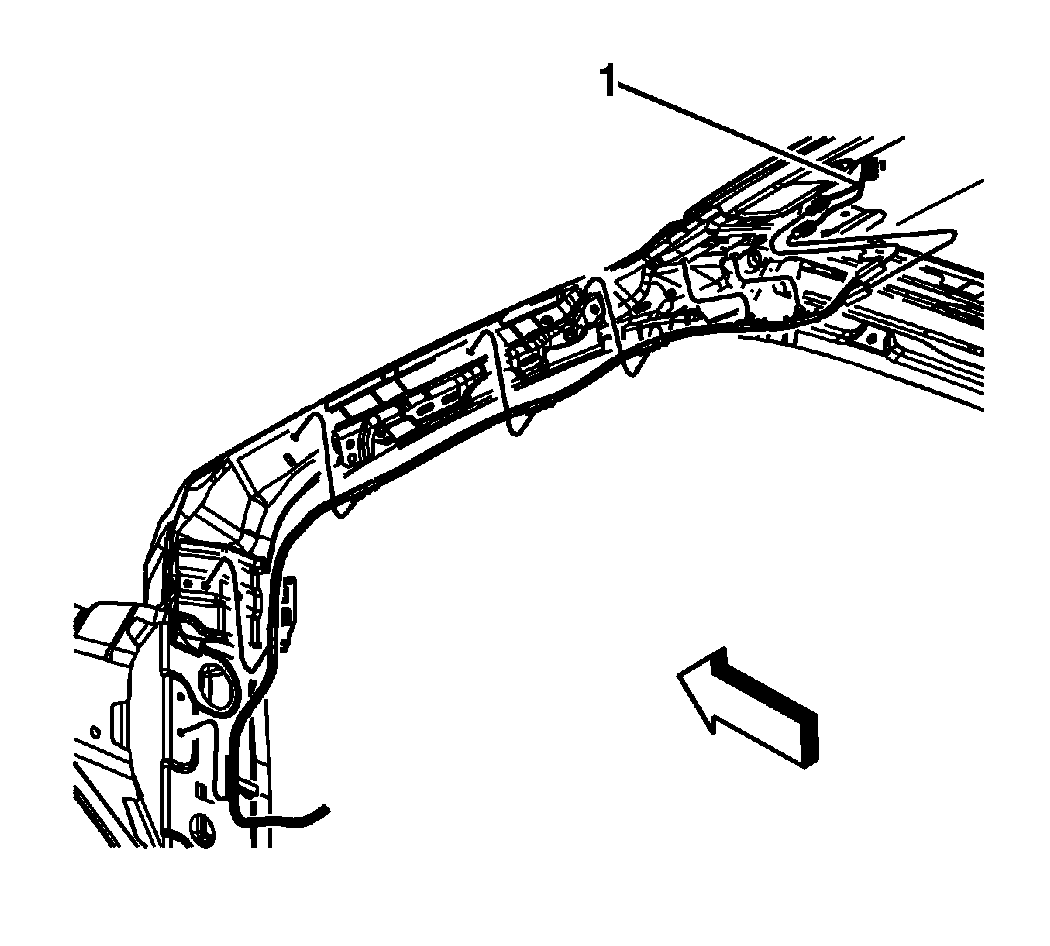

    10. Fig 3: View Of Digital Radio Antenna Connectors
    GM1358247Courtesy of GENERAL MOTORS CORP.
  10. Connect the digital radio antenna connectors (1).
  11. Attach the 2 upper coax cable retainers to the header panel.
  12. Install the headliner. Refer to Headlining Trim Panel Replacement (Crew Cab) or Headlining Trim Panel Replacement (Extended Cab) or Headlining Trim Panel Replacement (Regular Cab) .
