Installation Procedure

WARNING: This page is about a different car, the 2008 Isuzu i-370, 2008 Isuzu i-290, 2008 GMC Canyon, and 2008 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

Attach the mechanics wire to the end of the antenna cable.

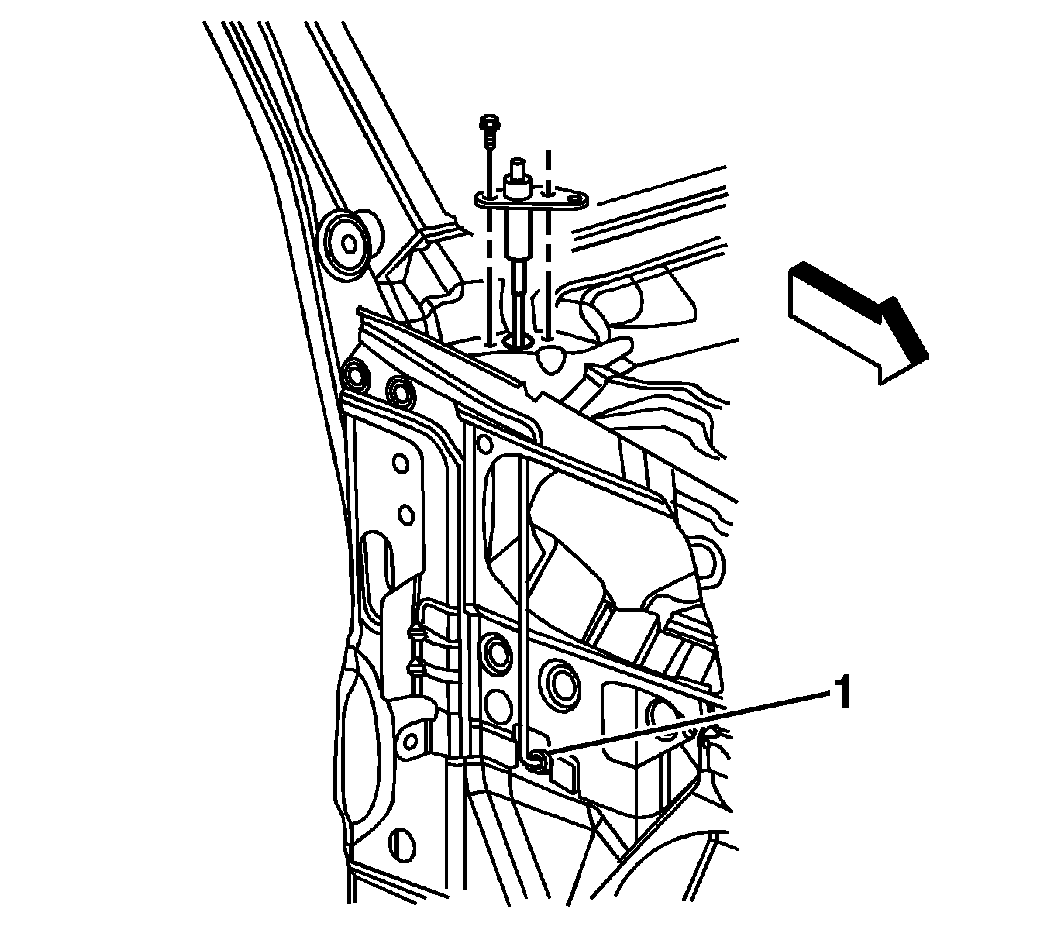

Fig 1: Locating Routing Hole Grommet

Courtesy of GENERAL MOTORS CORP.

Pull on the mechanics wire to route the cable and grommet (1) through the hinge pillar.

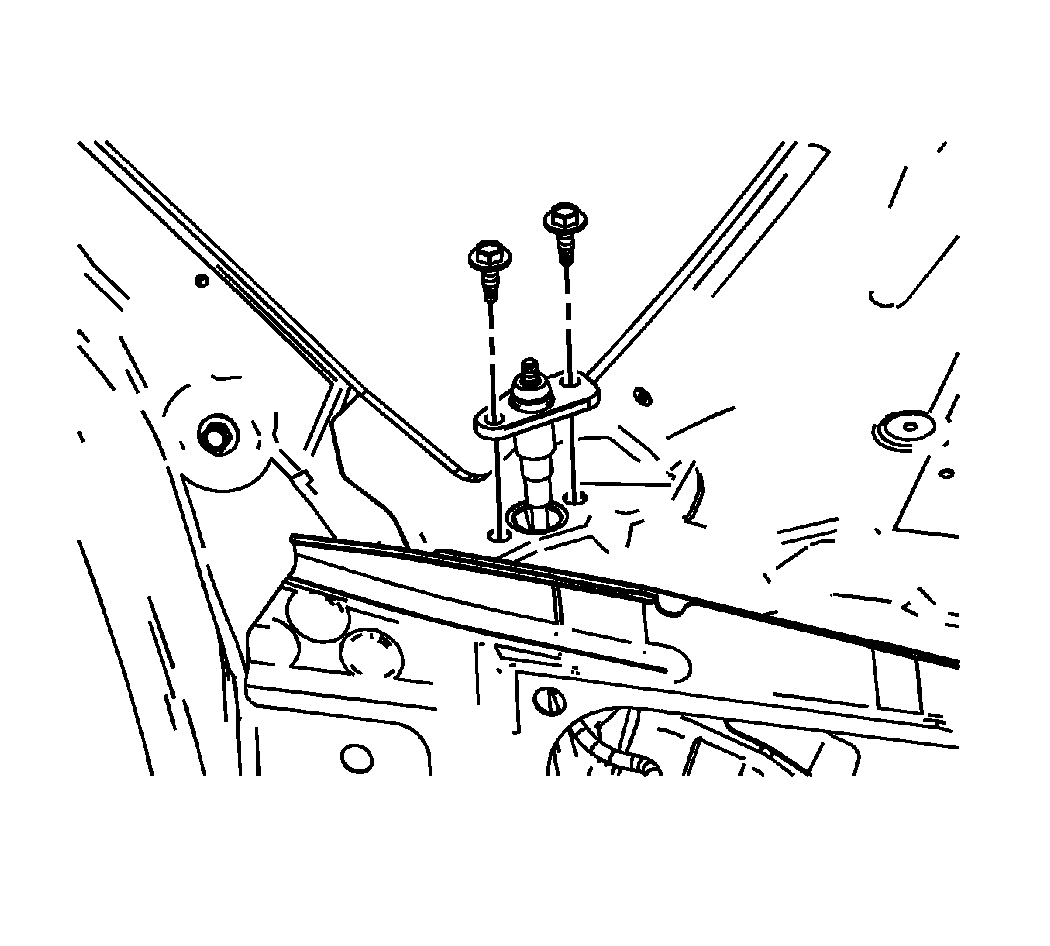

Fig 2: View Of Antenna Base & Screws

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the screws retaining the antenna base.
Tighten: Tighten the screws to 7.5 N.m (66 lb in).
Install the antenna mast. Refer to Fixed Antenna Mast Replacement .

Fig 3: View Of Radio Extension Cable

Courtesy of GENERAL MOTORS CORP.

Remove the mechanics wire from the antenna cable (1).
Install the grommet to the hinge pillar.
Connect the radio antenna cable (1) to the extension cable.
Install the I/P compartment door. Refer to Instrument Panel Compartment Door Replacement .
Install the right hinge pillar trim panel. Refer to Body Hinge Pillar Trim Panel Replacement - Left Side .
Install the right front door sill plate. Refer to Front Side Door Sill Plate Replacement .
