Installation Procedure

WARNING: This page is about a different car, the 2008 Chevrolet Malibu Classic. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the backing paper from the sunshade stop to expose the adhesive surface.

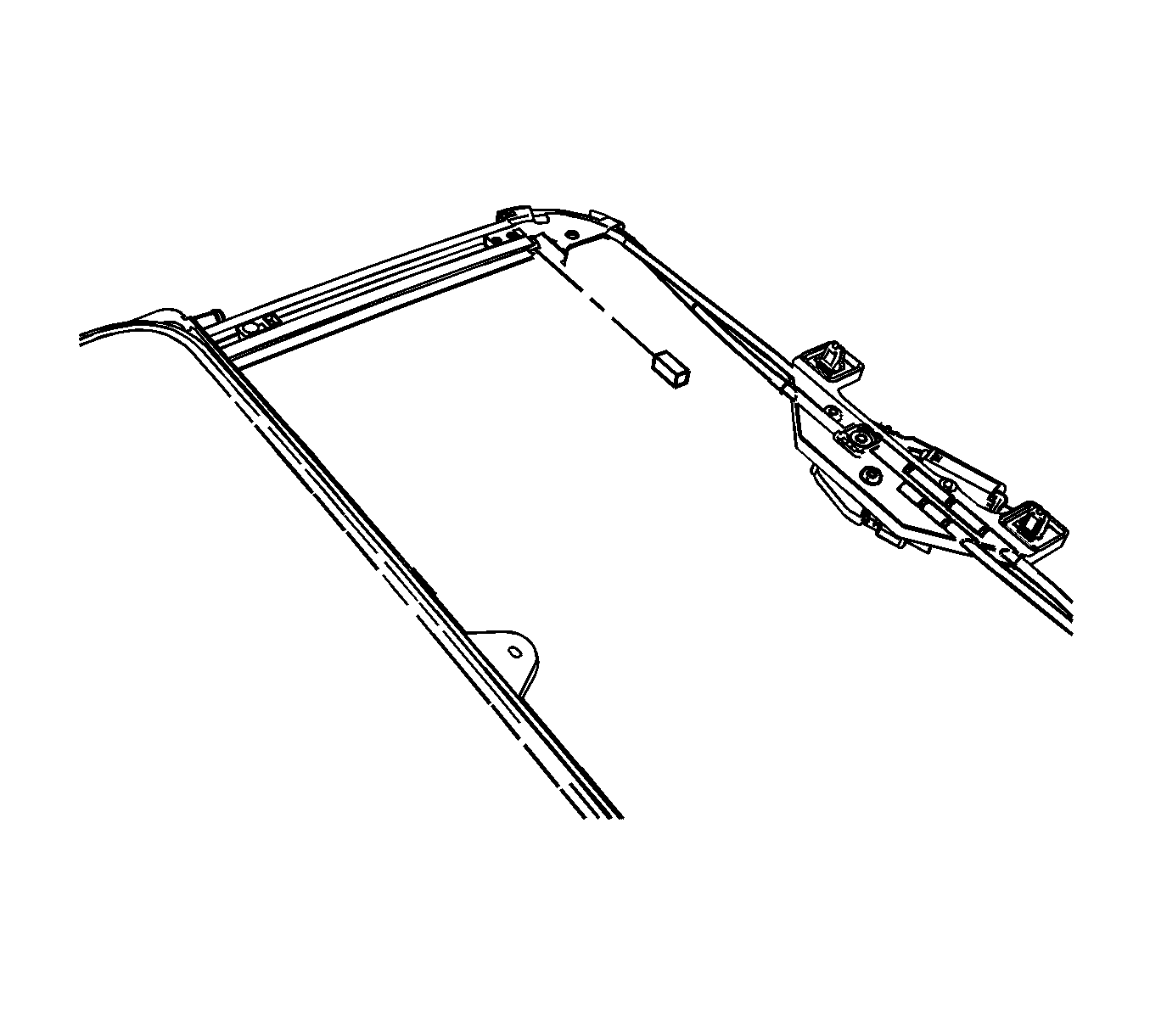

    2. Fig 1: Identifying Sunshade Stop
    GM1224101Courtesy of GENERAL MOTORS CORP.
  2. Position the sunshade stop to the sunroof cable drive tube retainer.
  3. Firmly press the sunshade stop onto the retainer.
  4. Install the headliner. Refer to Headlining Trim Panel Replacement (Sedan) .
