Installation Procedure

WARNING: This page is about a different car, the 2008 Chevrolet Malibu Classic. However, it is still accessible from the selected car via links, so may be relevant.

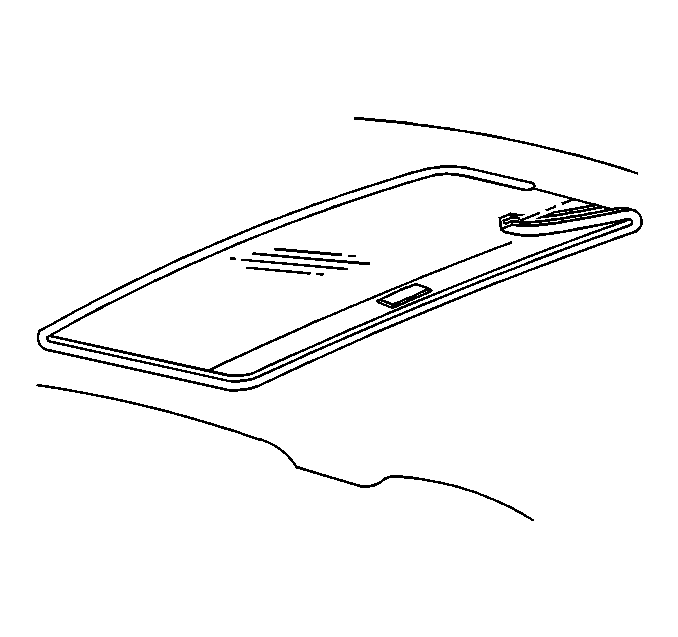

    Fig 1: Identifying Sunroof Opening Finishing Lace
    GM330069Courtesy of GENERAL MOTORS CORP.
  1. Position the end of the sunroof finishing lace at the center of the left side of the sunroof opening.

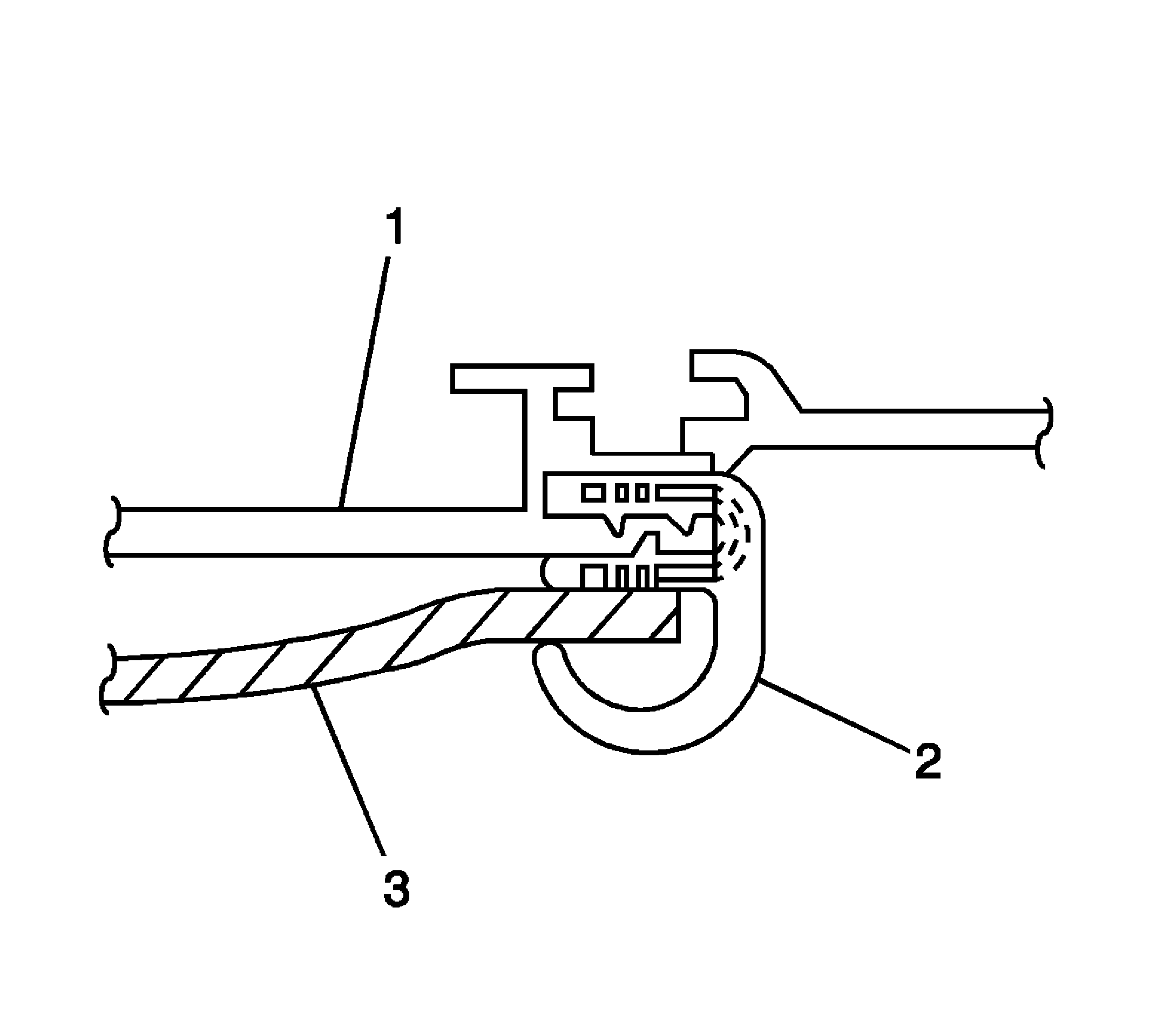

    2. Fig 2: Identifying Finishing Lace In Track Assembly Flange
    GM1222470Courtesy of GENERAL MOTORS CORP.
  2. Push the finishing lace (2) onto the track assembly flange (1) until fully seated around the sunroof opening.
  3. Pull the finishing lace draw cord toward the sunroof opening. Remove the cord from the periphery of the opening.
  4. Ensure that the finishing lace (2) is properly seated over the outer surface of the headliner (3).
