Installation Procedure

WARNING: This page is about a different car, the 2008 Chevrolet Malibu Classic. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the sunroof drive cables into the openings of the metal tubes on each side of the sunroof cable drive tube.

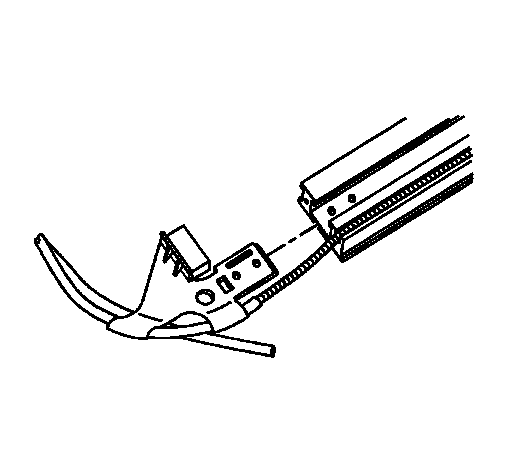

    2. Fig 1: View Of Cable Drive Tube And Track Assembly
    GM1224104Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Do NOT kink the cables.
  2. Feed the sunroof drive cables through the drive tubes.

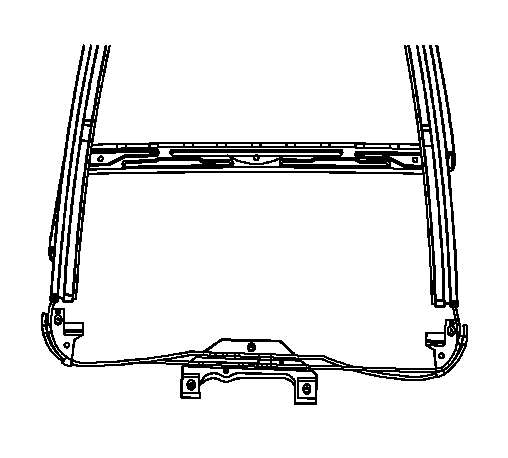

    3. Fig 2: View Of Sunroof Cable Drive Tube Retainers
    GM1224958Courtesy of GENERAL MOTORS CORP.
  3. Install the sunroof cable drive tube retainers into the ends of the sunroof window track assembly. Ensure that the retainers are fully seated in the track assembly.

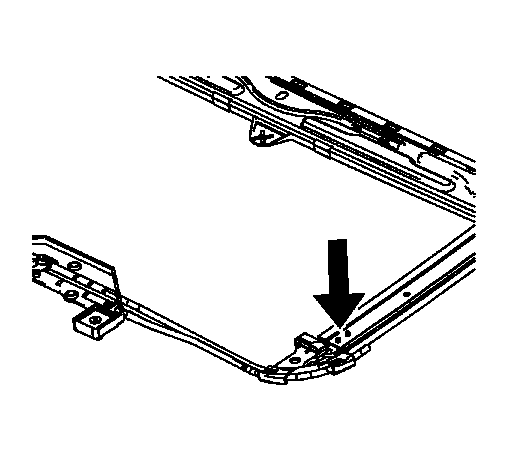

    4. Fig 3: View Of Rivets From Sunroof Cable Drive Tube Retainers
    GM1224103Courtesy of GENERAL MOTORS CORP.
  4. From the top side of the module, install the rivets which secure the drive tube retainers to the window track assembly. Install 2 rivets on each side.
    5. Fig 4: View Of Sunroof Motor/Actuator Assembly
    GM1222467Courtesy of GENERAL MOTORS CORP.
  5. Install the sunroof motor. Refer to Sunroof Motor/Actuator Replacement .
    6. Fig 5: View Of Sunroof Module
    GM1222469Courtesy of GENERAL MOTORS CORP.
  6. Install the sunroof module. Refer to Sunroof Module Assembly Replacement .
  7. Initialize the sunroof motor. Refer to Sunroof Motor/Actuator Initialization/Teach Process (New Motor)  or Sunroof Motor/Actuator Initialization/Teach Process (Existing Motor) .
  8. Inspect the sunroof for proper operation.
