Wheels/Vehicle Underbody Component Views

Fig 1: Identifying Left Middle Side of Frame Rail

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Tank Pressure (FTP) Sensor Connector
2	Fuel Pump and Sender Assembly
3	Evaporative Emission (EVAP) Canister Vent Solenoid Valve
4	Chassis Harness
5	Fuel Tank

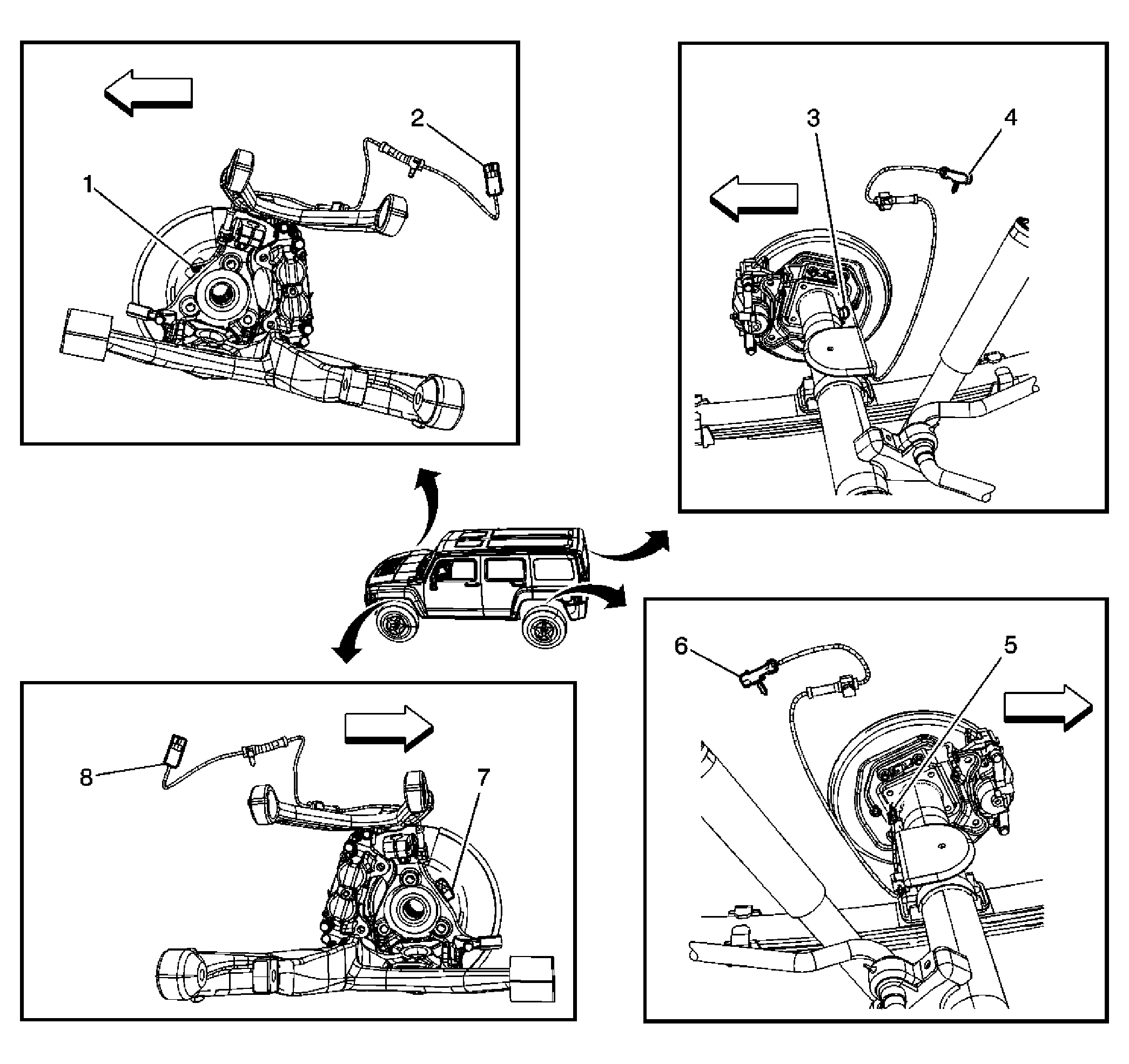

Fig 2: Identifying Wheel Speed Sensors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Wheel Speed Sensor (WSS) - Right Front
2	Wheel Speed Sensor (WSS) - Right Front Connector
3	Wheel Speed Sensor (WSS) - Right Rear
4	Wheel Speed Sensor (WSS) - Right Rear Connector
5	Wheel Speed Sensor (WSS) - Left Rear
6	Wheel Speed Sensor (WSS) - Left Rear Connector
7	Wheel Speed Sensor (WSS) - Left Front
8	Wheel Speed Sensor (WSS) - Left Front Connector

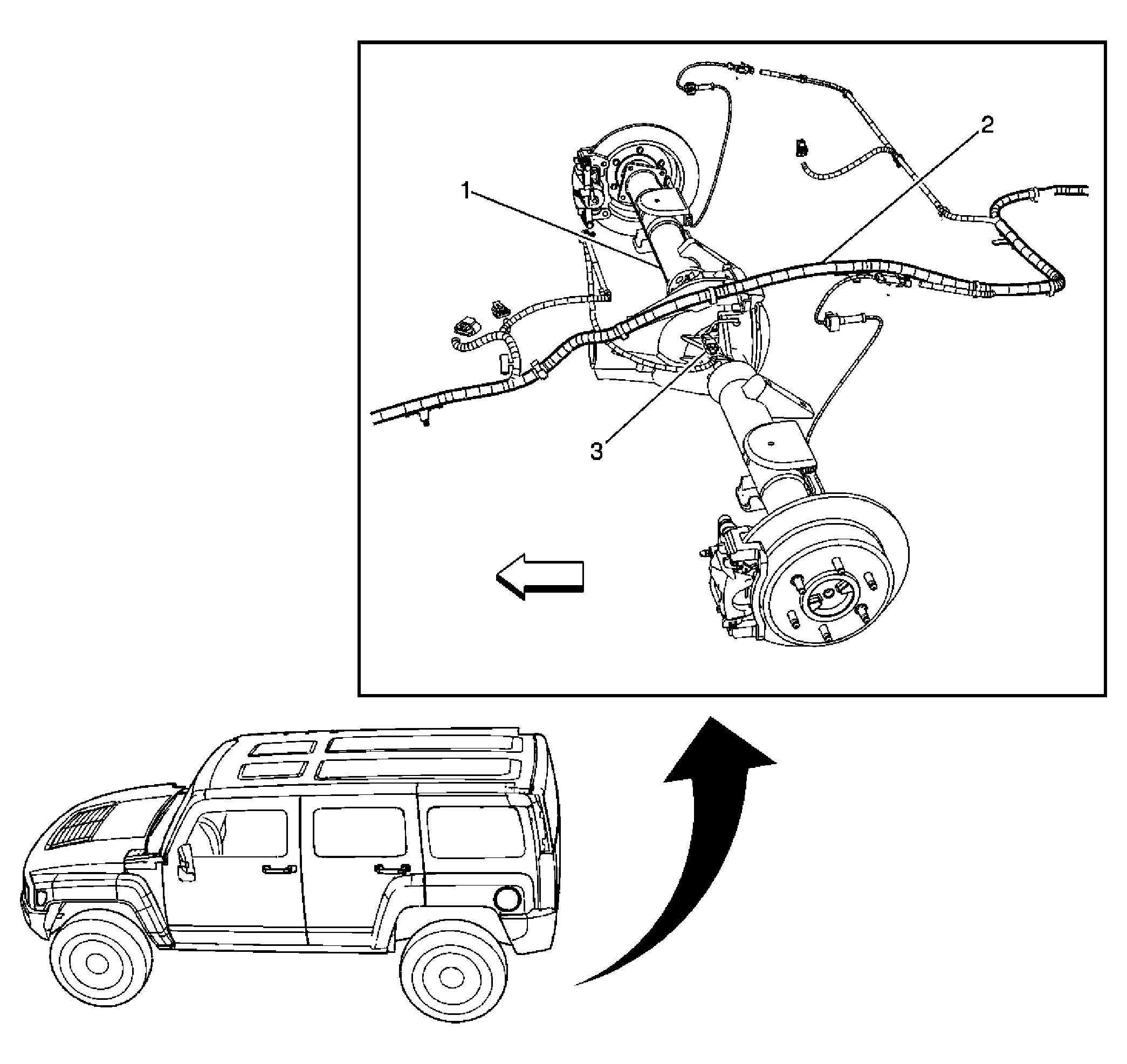

Fig 3: Identifying Rear Axle Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Axle
2	Chassis Harness
3	Differential Lock Actuator (G94)
