Installation Procedure

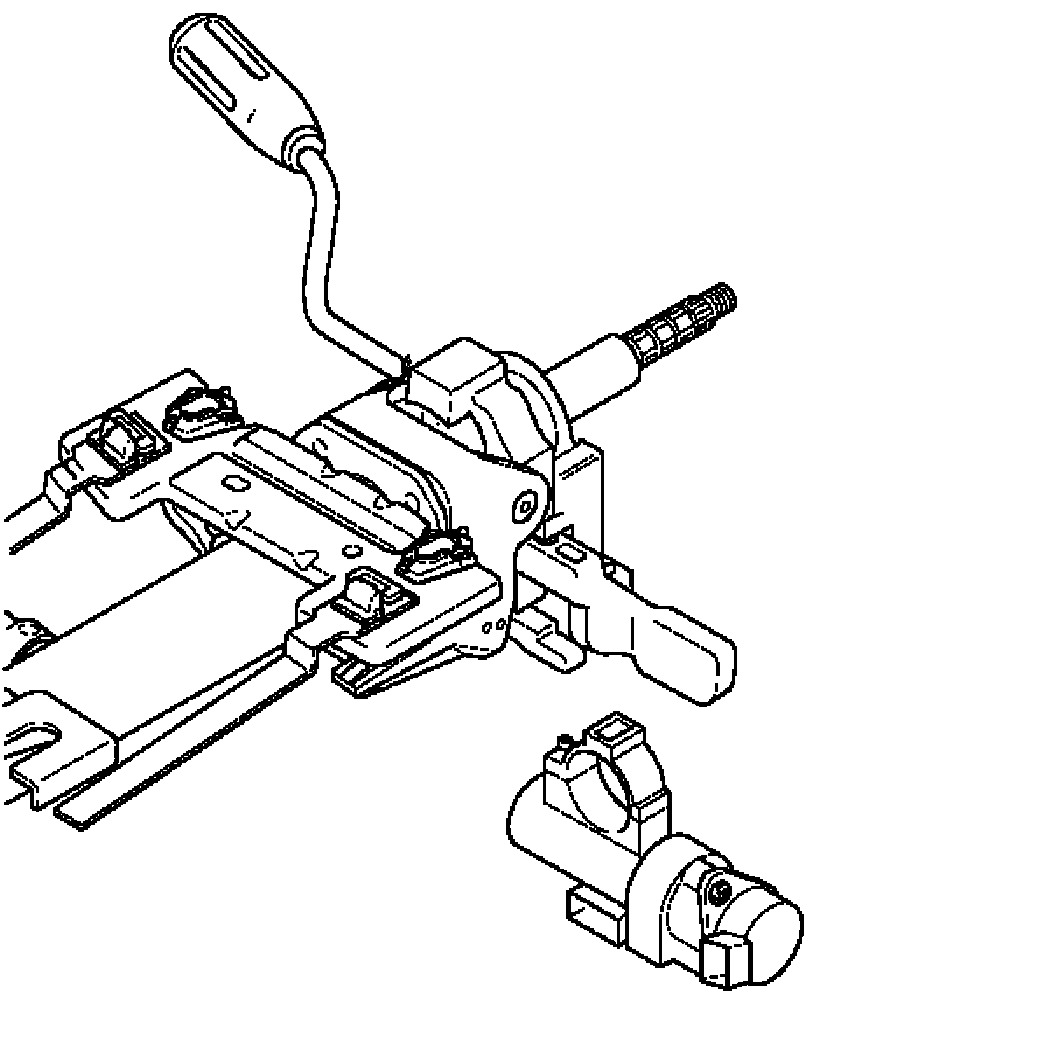

    Fig 1: View Of Ignition Switch & Lock Housing Assembly
    GM1492304Courtesy of GENERAL MOTORS CORP.
  1. Install the ignition lock cylinder case.
    2. NOTE: Refer to Fastener Notice .
  2. Install a new ignition lock cylinder case bolt and turn it until the head shears off.
  3. Install the multifunction turn signal switch housing. Refer to Multifunction Turn Signal Switch Housing Replacement .
  4. Install the ignition lock cylinder. Refer to Ignition Lock Cylinder Replacement .
  5. The Passlock sensor is part of the ignition switch. If replacing the switch, a theft deterrent relearn is needed. Refer to Control Module References .
  6. Enable the SIR system. Refer to SIR Disabling and Enabling .
