Tail Lamp Replacement

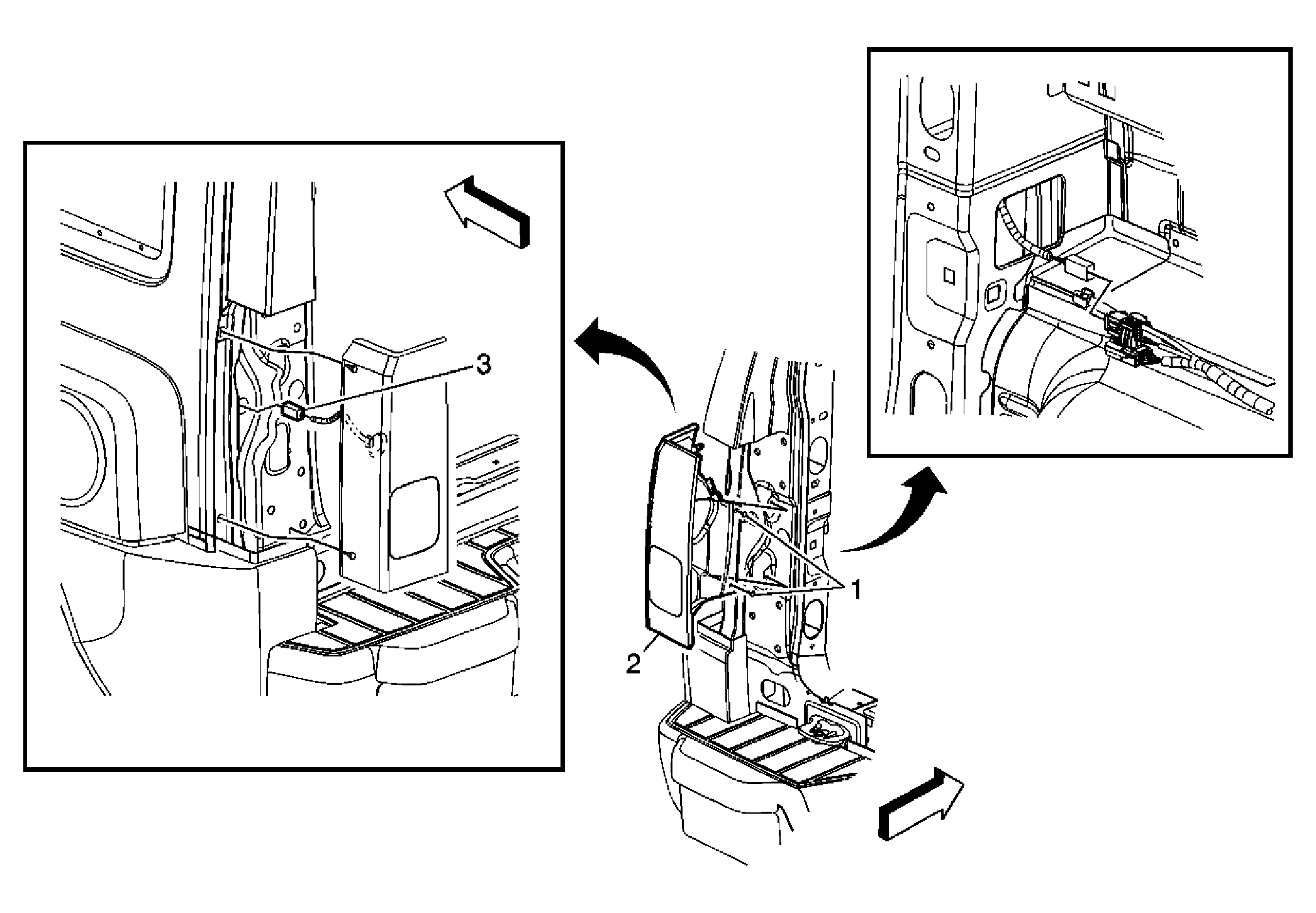

Fig 1: Tail Lamp Assembly Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Open the endgate in order to access the left rear taillamp assembly screws.
1	Screws, Tail Lamp Housing (Qty: 2) Tip: Pull lamp housing outward in order to release the exterior side pin retainers. Tighten: 3 N.m (26 lb in)
2	Lamp Assembly, Tail Tip: Disconnect the bulb sockets from the lamp housing by rotating counterclockwise.
3	Connector, Tail Lamp Electrical
