Headlamp Bulb Replacement

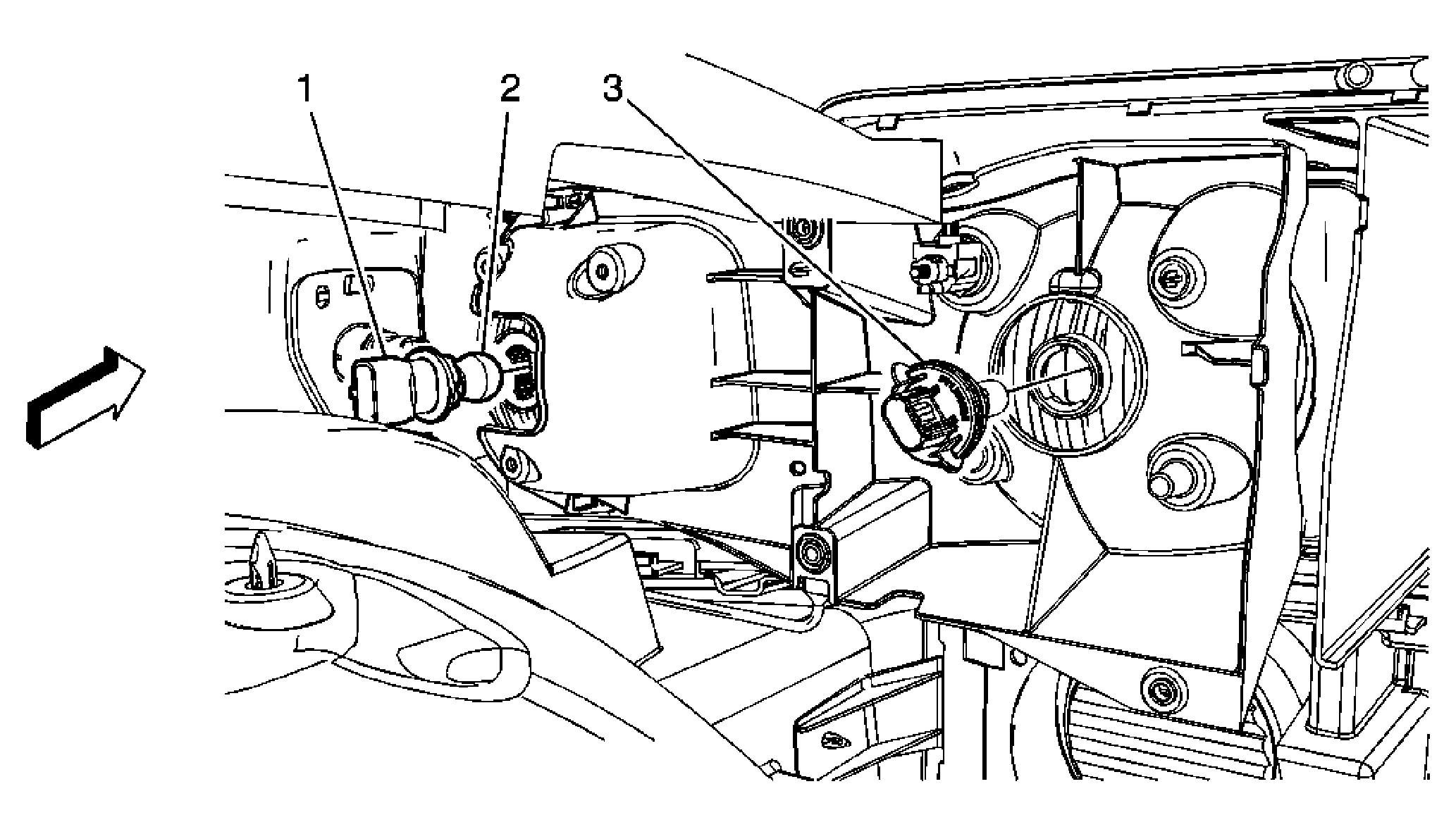

Fig 1: Headlamp Bulb Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Open the hood and secure the prop rod. Disconnect the electrical connector to the headlamp bulb socket. Turn the bulb socket counterclockwise to remove.
1	Daytime Running Lamp Bulb/Park Turn Signal Socket
2	Daytime Running Bulb/Park Turn Signal Bulb
3	Headlamp Bulb (Lo/Hi) (H13) Tip: Pinch terminal and pull to remove bulb.
