Front Side Marker Lamp Replacement (Base)

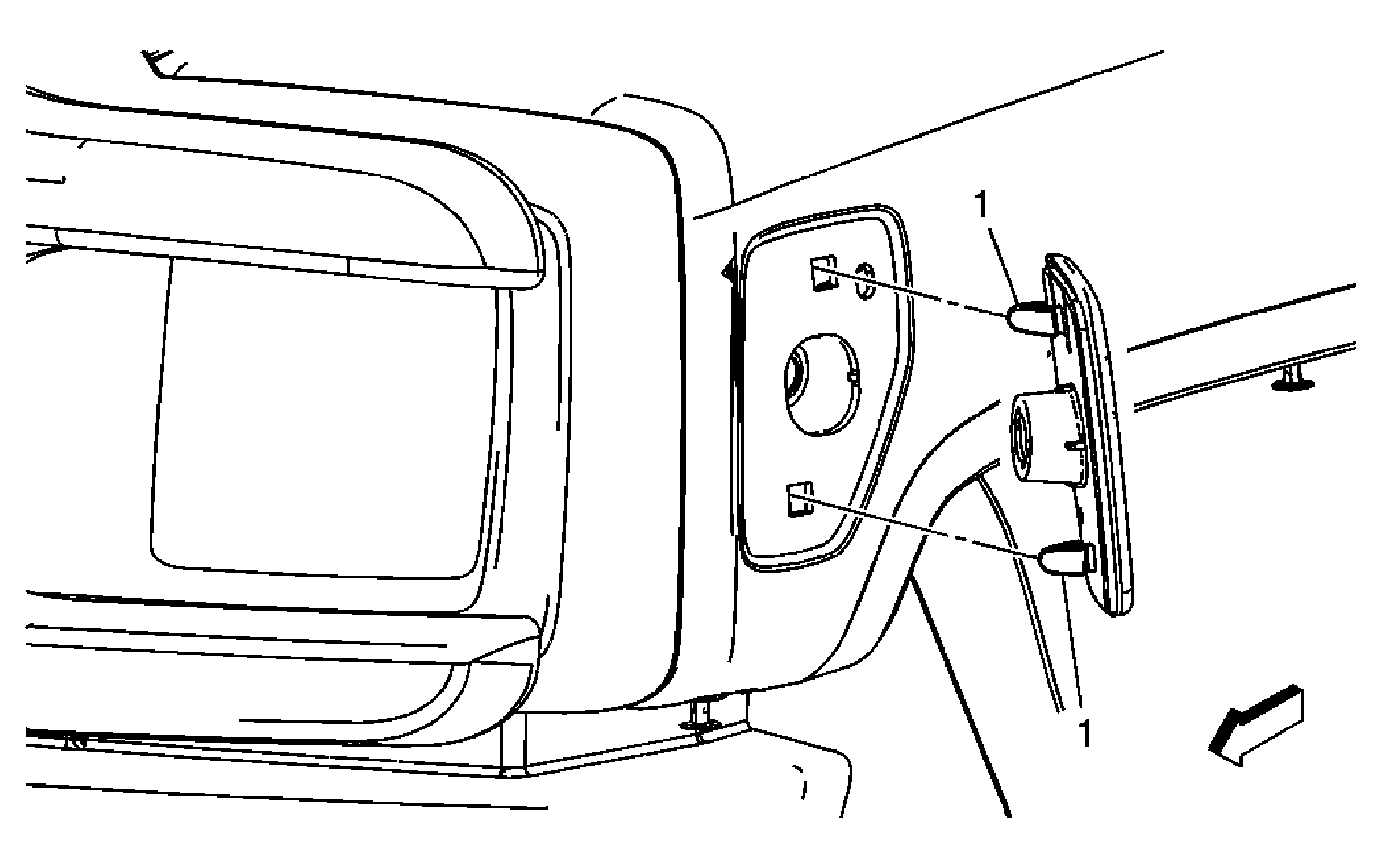

Fig 1: Front Side Marker Lamp Replacement (Base)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove either the RH or LH wheelhouse panel. Refer to Wheelhouse Panel Replacement (Front) or Wheelhouse Panel Replacement (Rear) . Disconnect the electrical socket from the front marker lamp, twist counterclockwise to remove.
1	Lamp Asm, Front Side Marker (Qty: 2) Tip: Pinch the clips and push the marker lamp outboard from the wheel opening flare.

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

Remove either the RH or LH wheelhouse panel. Refer to Wheelhouse Panel Replacement (Front) or Wheelhouse Panel Replacement (Rear) .
Disconnect the electrical socket from the front marker lamp, twist counterclockwise to remove.

Lamp Asm, Front Side Marker (Qty: 2)
Tip: Pinch the clips and push the marker lamp outboard from the wheel opening flare.
